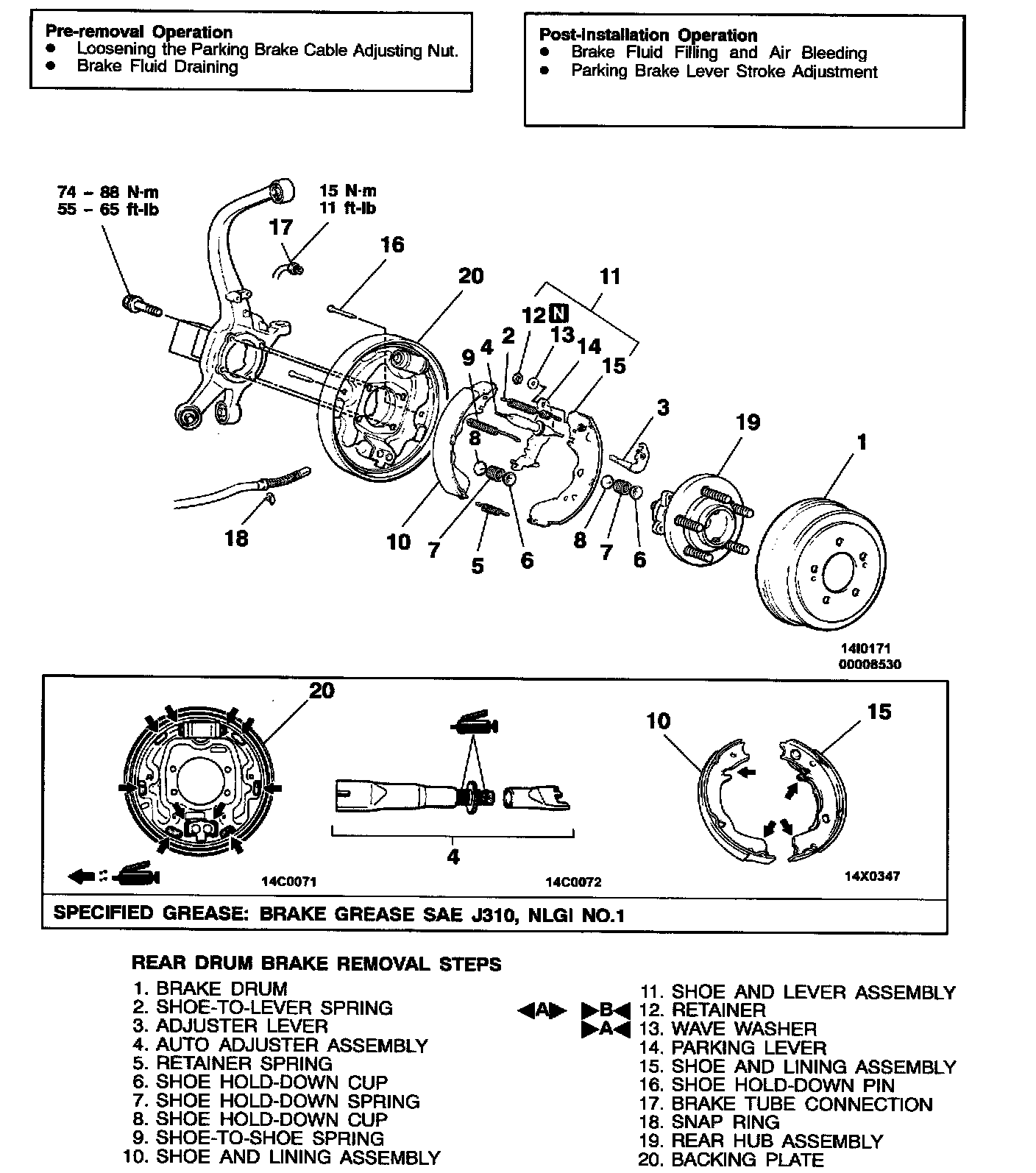

Brake Shoe: Service and Repair
REMOVAL
Removal Service Point
RETAINER REMOVAL
Use a flat-tipped screwdriver or a similar tool to open up the retainer joint. Then remove the retainer.
INSTALLATION
Installation Service Points
>A< WAVE WASHER INSTALLATION
Install the washer in the direction shown in the illustration.
>B< RETAINER INSTALLATION
Use pliers or a similar tool to close the retainer end onto the pin.
