Power Seat Switch: Testing and Inspection

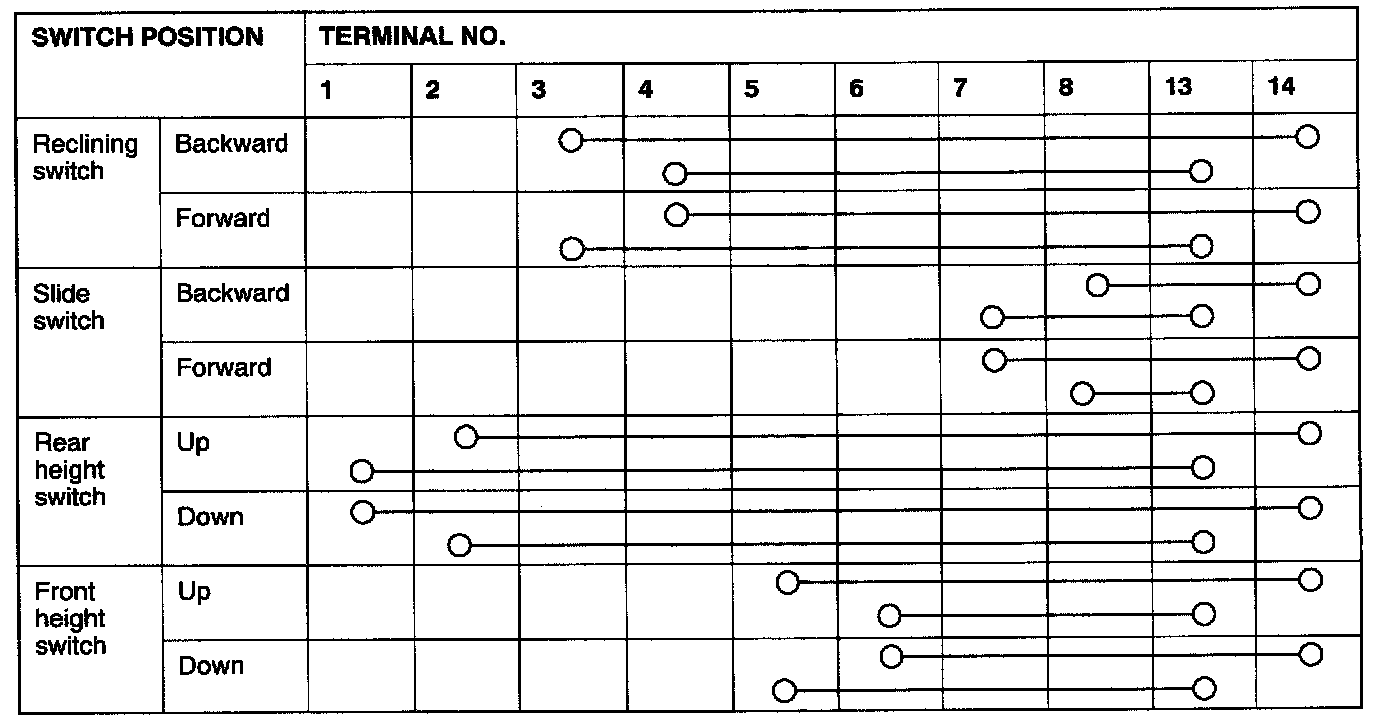

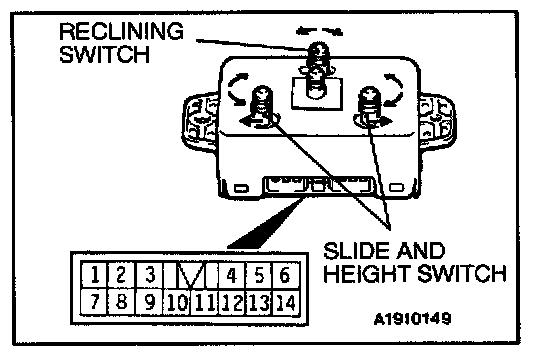

POWER SEAT SWITCH CONTINUITY CHECK

POWER SEAT MOTOR OPERATION CHECK
Inspect the operation of each motor according to the following
procedures.

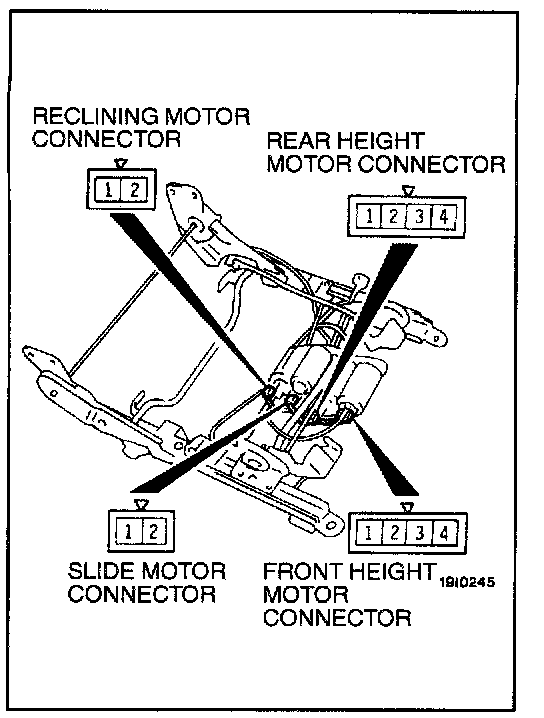

1. Disconnect the connector for each motor.

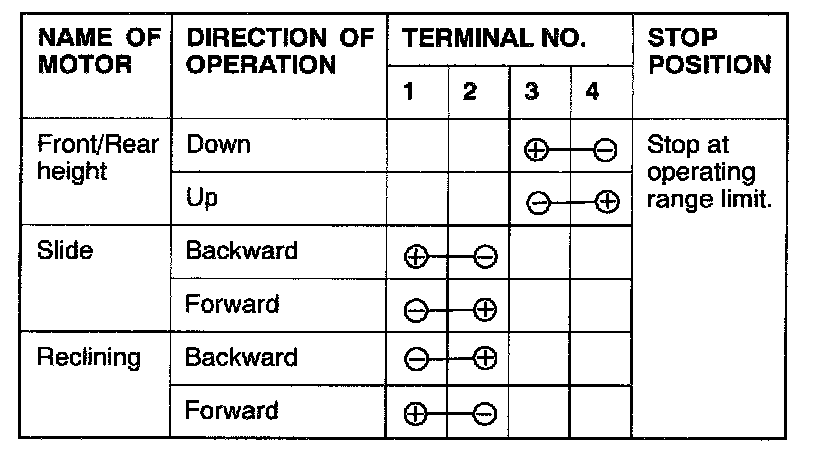

2. When the battery is connected directly to the motor terminals, check if the motors run smoothly, and check if each setting mechanism runs in the direction shown in the table below for each motor.
3. If there is an abnormality, replace the power seat adjuster assembly.
