Wiper and Washer Systems: Service and Repair

WINDSHIELD WIPER AND WASHER









INSTALLATION SERVICE POINT

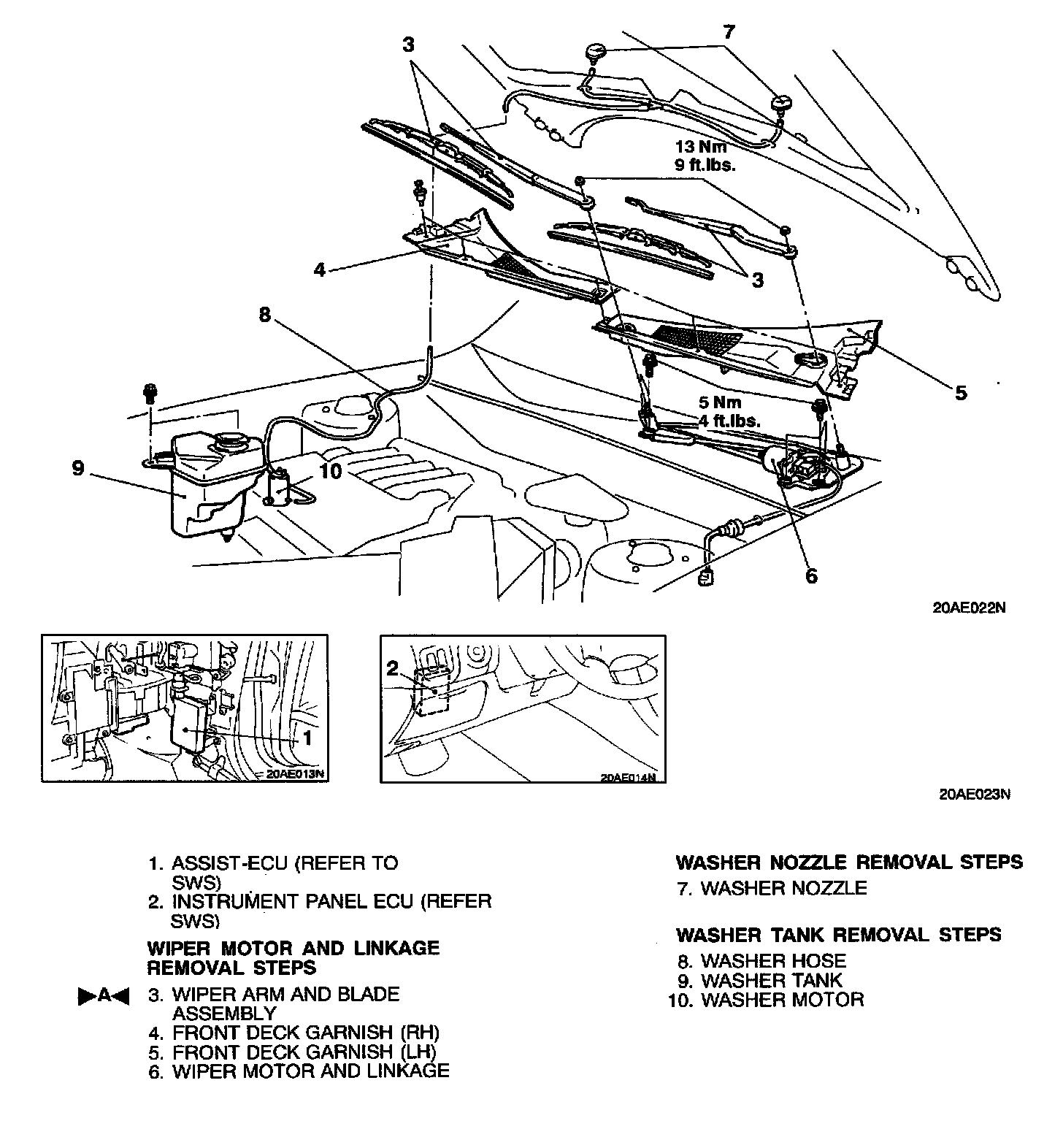

>A< WIPER ARM AND BLADE ASSEMBLY INSTALLATION
1. The movements of the left and right wiper arms are different, so check the identification marks.

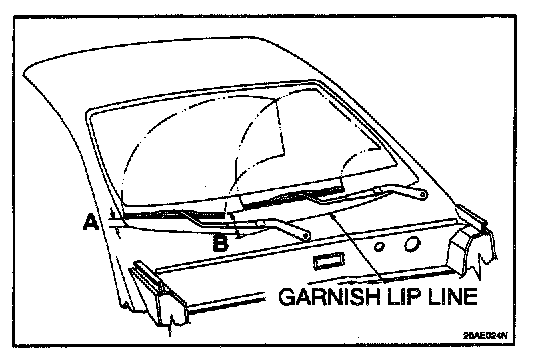

2. Install the wiper blade in the specified position (standard value) as shown in the illustration.

Standard value (A): 20 - 35 mm (0.79 - 1.38 in.)

Standard value (B): 65 - 80 mm (2.56 - 3.15 in.)
