Window Seal: Service and Repair

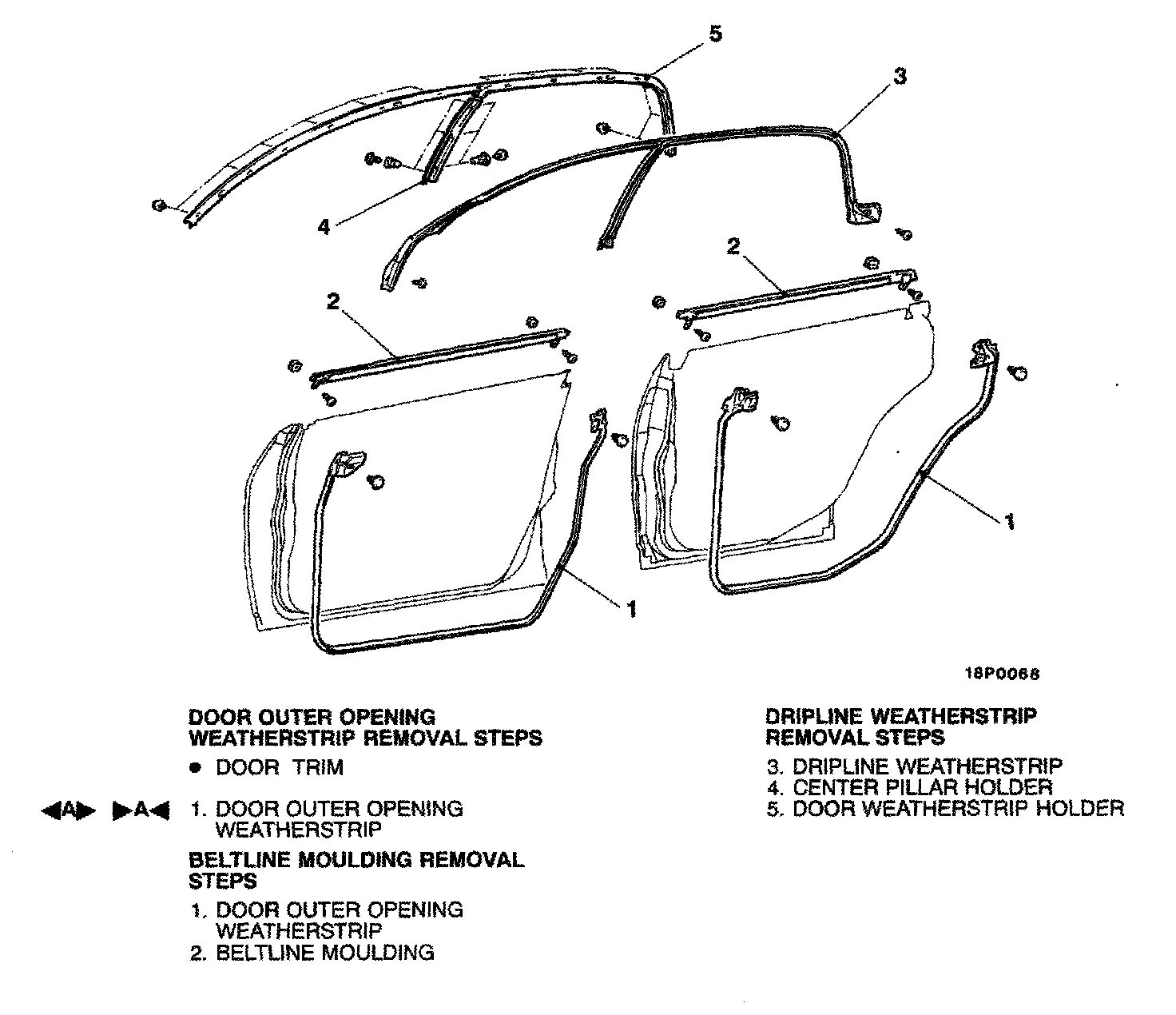

DOOR BELT LINE MOULDING AND DOOR OPENING WEATHERSTRIP






REMOVAL SERVICE POINTS




[A] DOOR OUTER OPENING WEATHERSTRIP REMOVAL

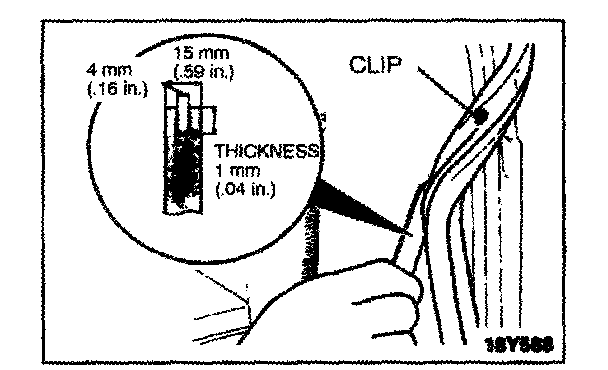

Make a tool as shown in the illustration to remove the door opening weatherstrip

INSTALLATION SERVICE POINTS




]A[ DOOR OUTER OPENING WEATHERSTRIP INSTALLATION

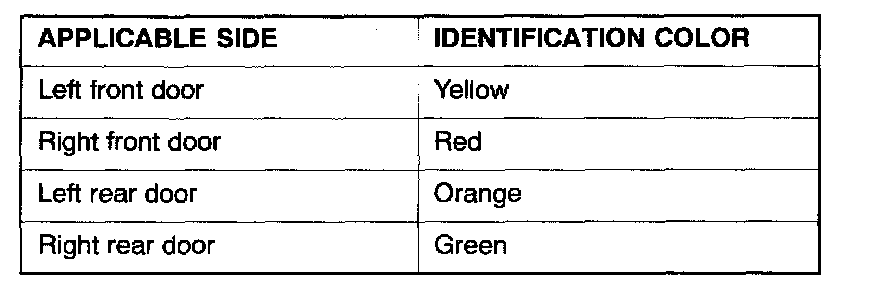

The clip color identifies the left and right weatherstrips, be sure to check the colors to ensure correct installation.
