Diamante LS Sedan V6-3.5L SOHC
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
A Connectors - Engine Compartment Harness
A Connectors - Engine Compartment Harness

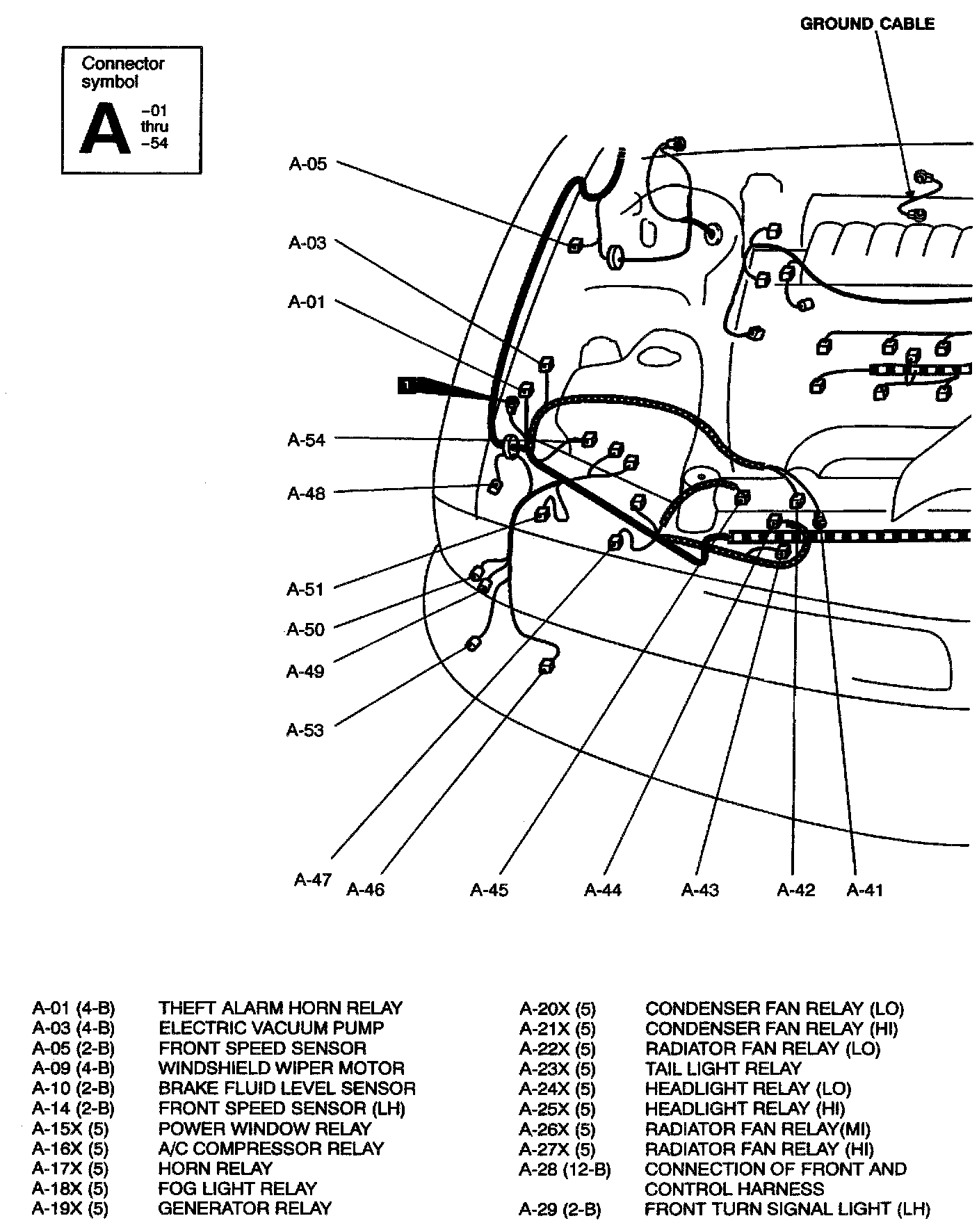

A-01 - A-29:

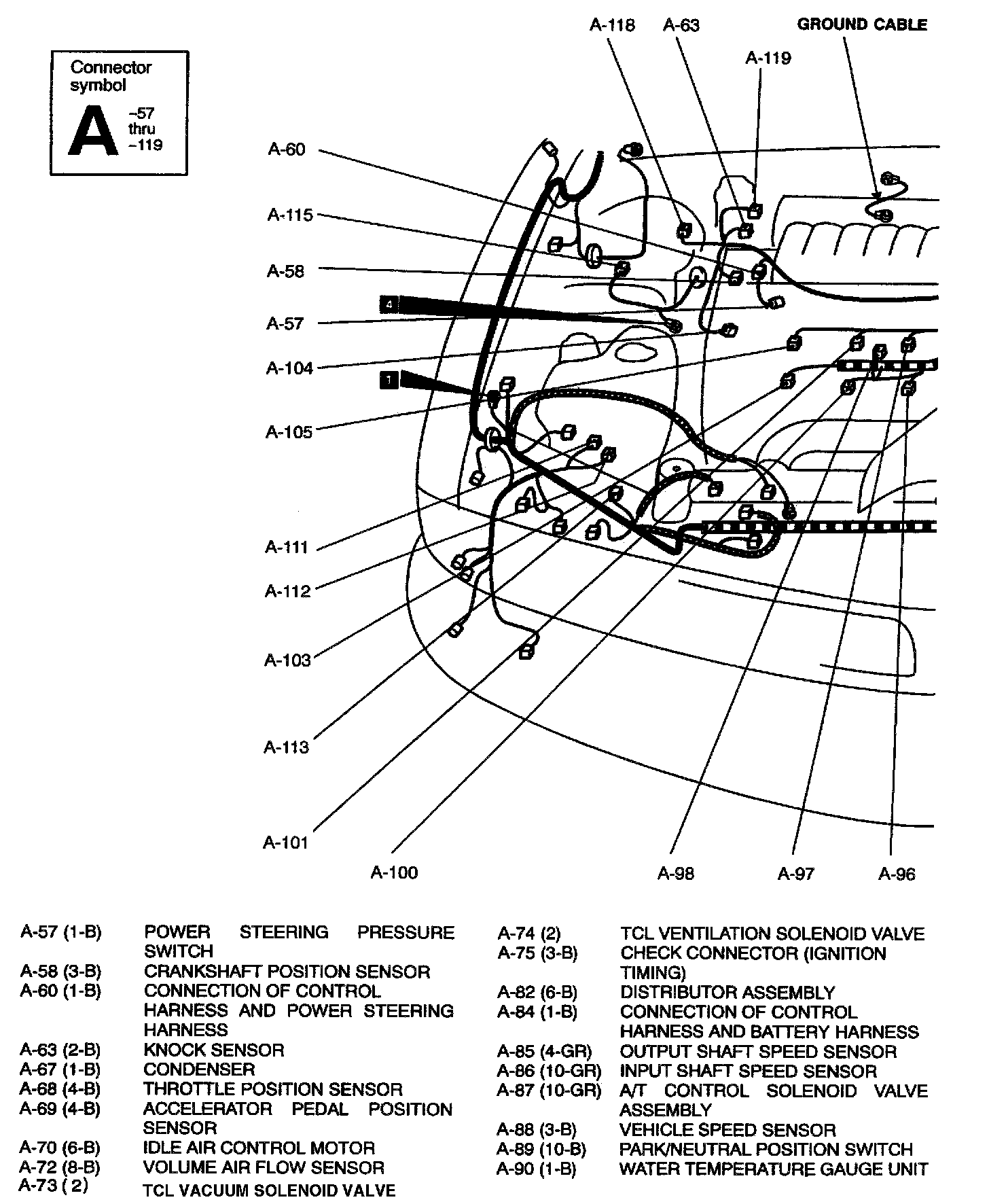

A-30 - A-54:
A-57 - A-90:

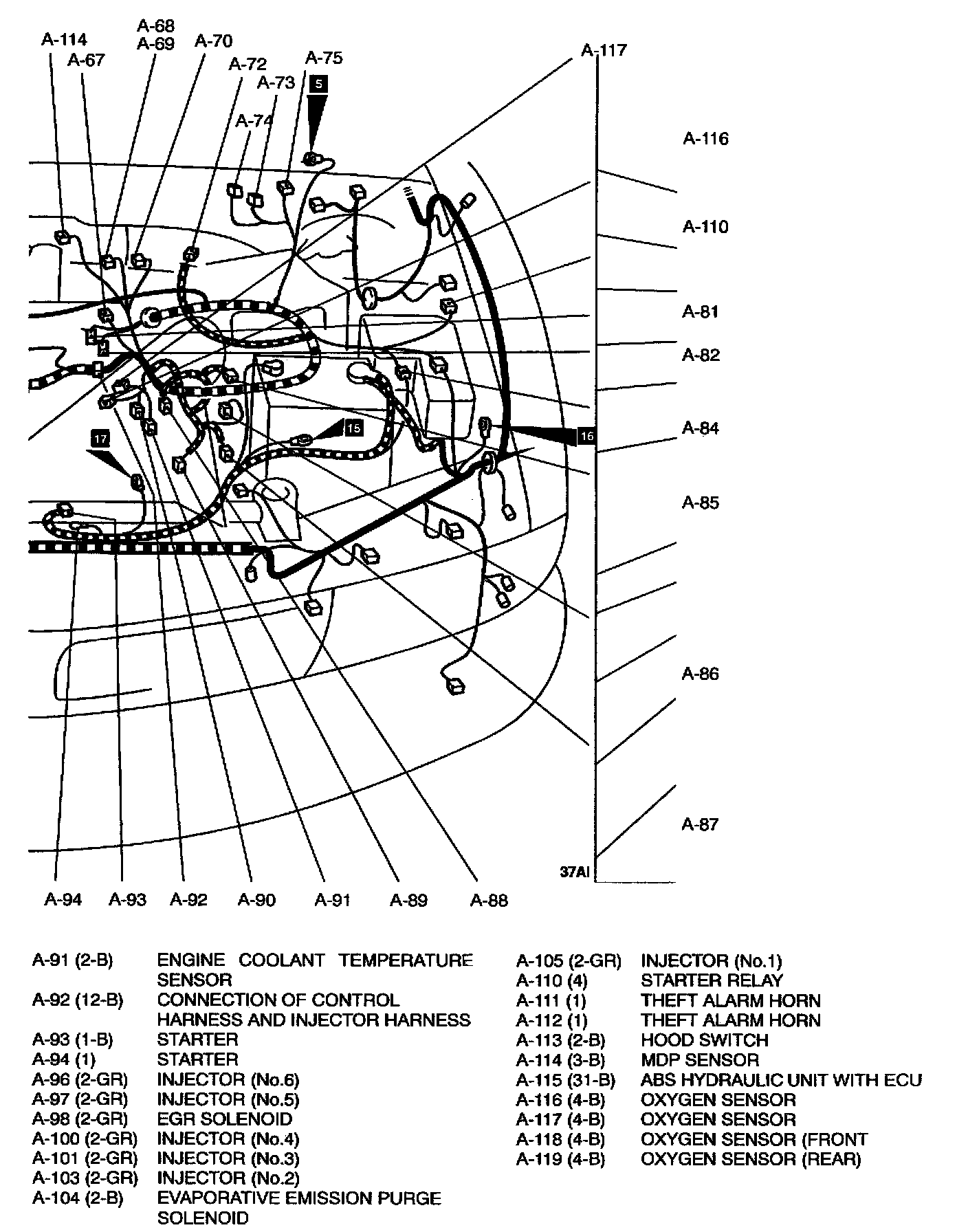

A-91 - A-119:
