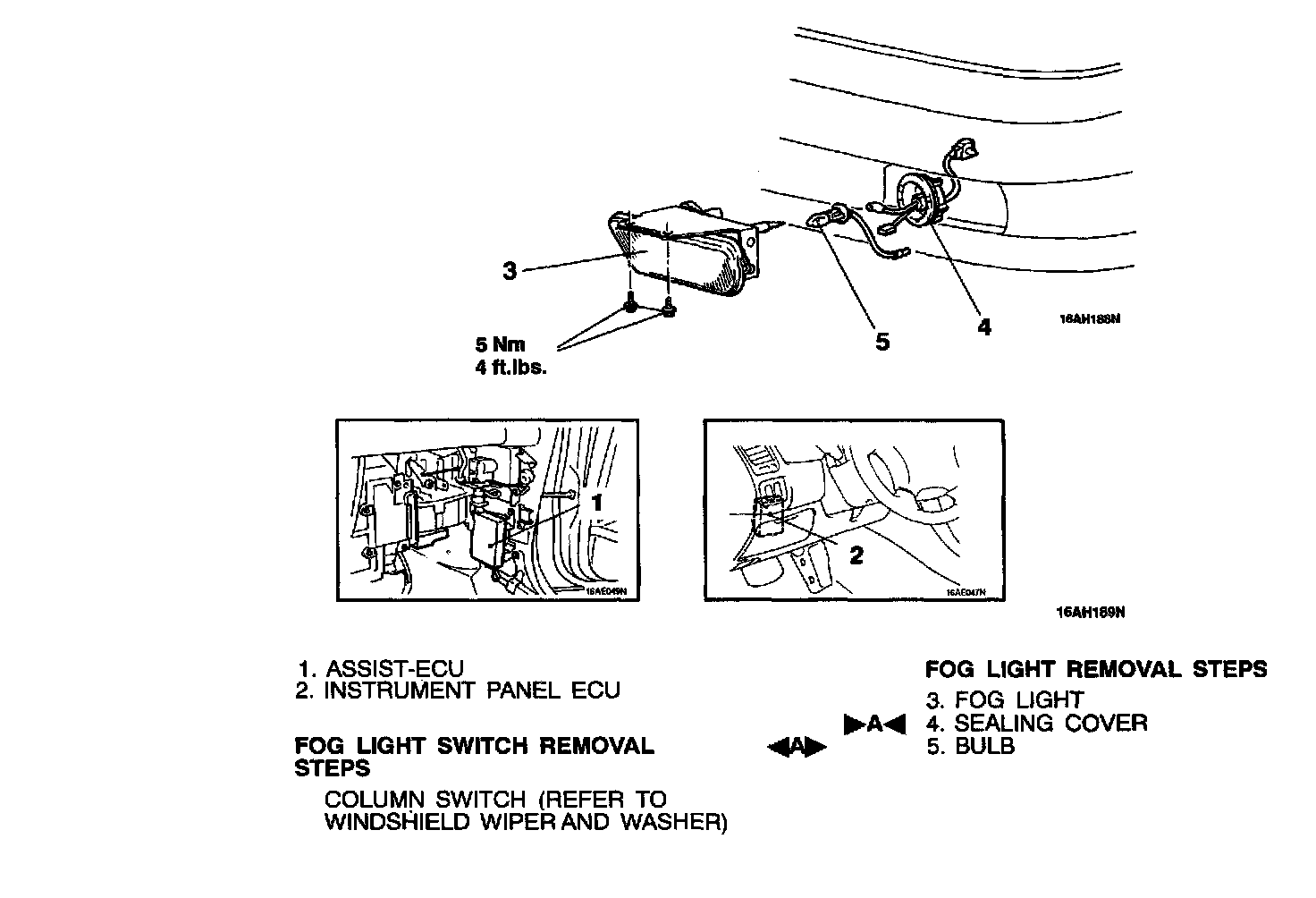

Fog/Driving Lamp: Service and Repair

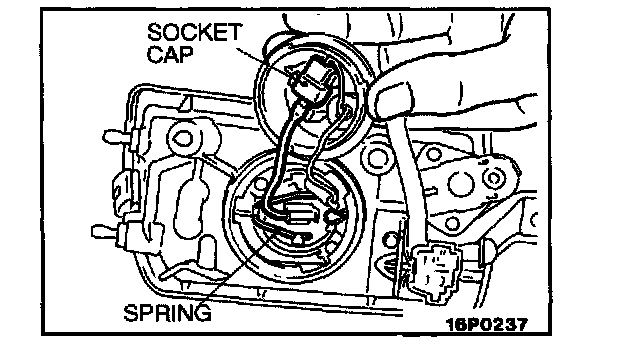

1. Remove the bulb socket cap.
2. Remove the bulb attachment spring and pull out the bulb.

CAUTION: Do not touch the surface of the bulb with hands or dirty gloves. If the surface does become dirty, clean it with alcohol or thinner, and let it dry thoroughly before installing.

INSTALLATION SERVICE POINT

>A< SEALING COVER INSTALLATION
Install the sealing cover securely.

CAUTION: If the sealing cover is not securely installed, the lens will be out of focus, or water will get inside the light unit, so the sealing cover should be securely installed.
