ABS Light: Testing and Inspection

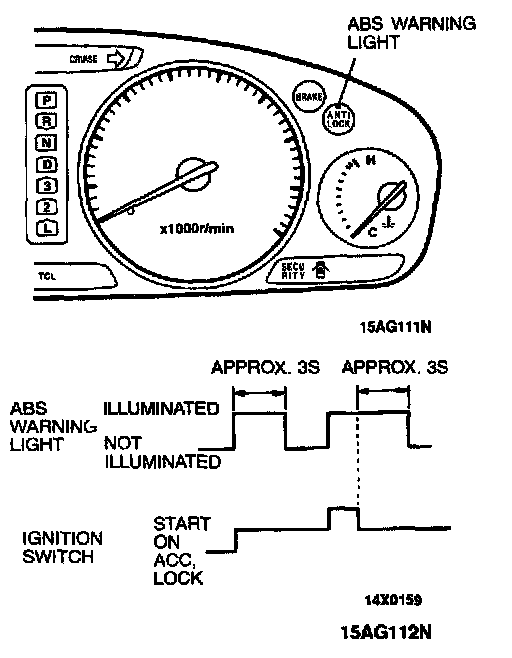

ABS WARNING LIGHT INSPECTION





Check that the ABS warning light illuminates as follows.
1. When the ignition key is turned to "ON", the ABS warning light illuminates for approximately 3 seconds and then switches off.
2. When the ignition key is turned to "START", the ABS warning light remains illuminated.
3. When the ignition key is turned from "START" back to "ON", the ABS warning light illuminates for approximately 3 seconds and then switches off.
4. If the illumination is other than the above, check the diagnostic trouble codes.
