Outside Rear View Mirror

DOOR MIRROR

DOOR MIRROR:

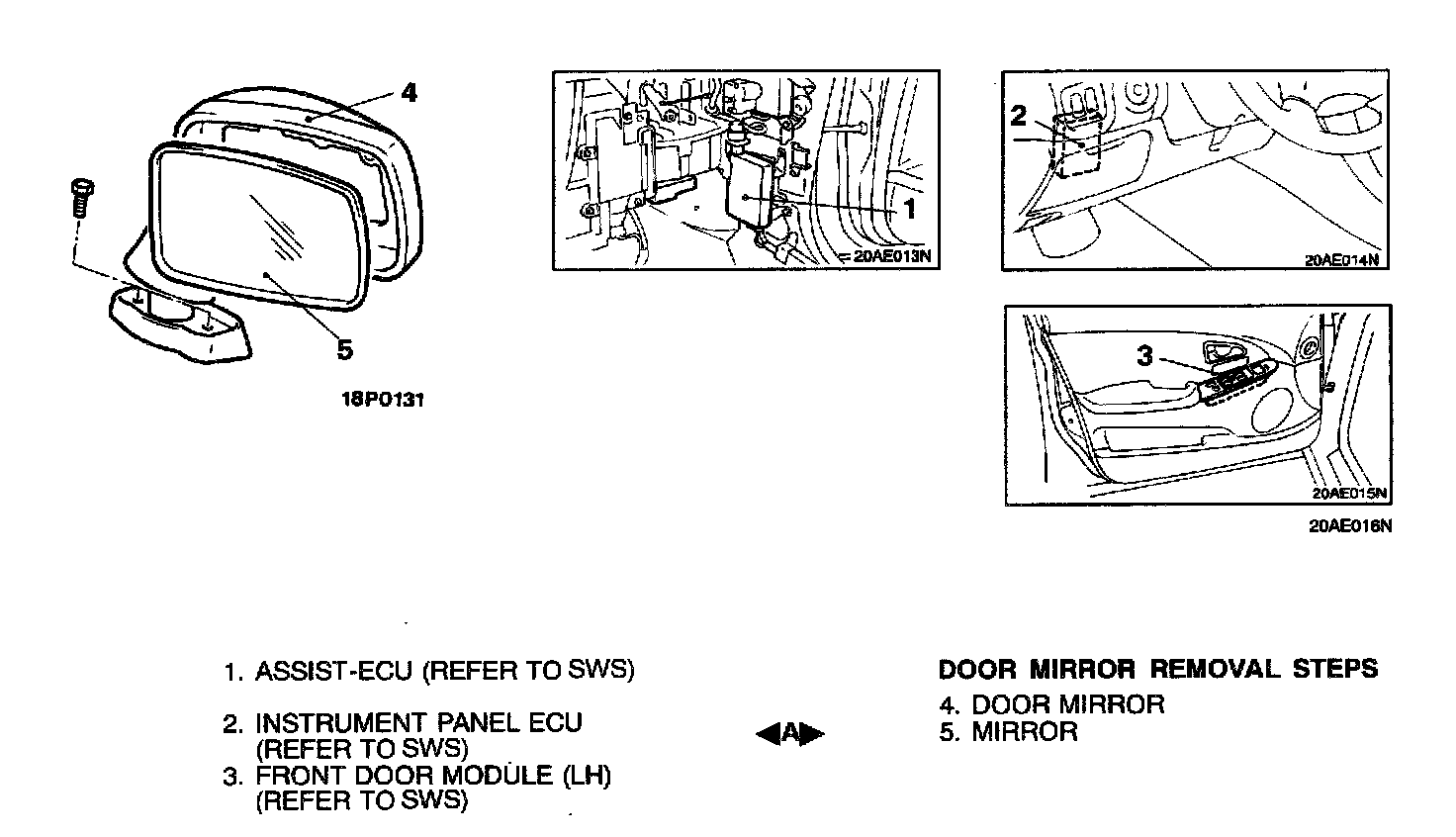

REMOVAL SERVICE POINT

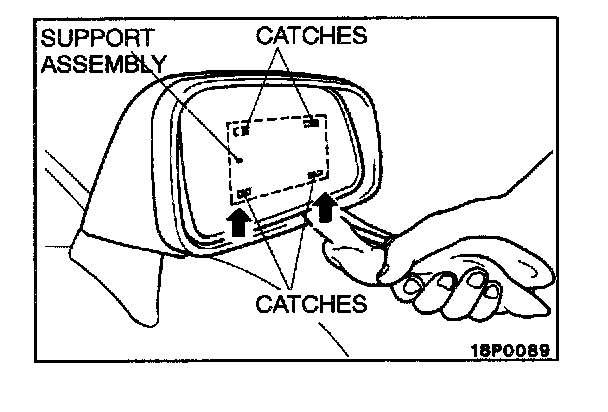

[A] MIRROR REMOVAL
Turn the mirror by hand so that it faces upwards, insert the (-) driver wound with masking tape into the notched section, and lever out to release the mirror from the bottom catches. Remove the mirror from the upper catches by pulling downwards.
