Door Glass - Adjustment Revision
No: TSB-02-42A-001DATE: January, 2002
MODEL: 1997-2002 Diamante
SUBJECT:
DOOR GLASS ADJUSTMENT - SERVICE MANUAL REVISION
PURPOSE
Door glass adjustment procedures for the affected service manuals have been updated. The new procedures in this bulletin replace the original procedures in the affected manuals and should be used to repair wind noise and water leaks.
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.
AFFECTED VEHICLES
1997-2002 Diamante
AFFECTED SERVICE MANUALS
1997 & 1998 Diamante Service Manuals, Volume 1, pages 42A-43 to 42A-47
1999 & 2000 Diamante Service Manuals, Volume 2, pages 42A-43 to 42A-47
2001 & 2002 Diamante Service Manuals, Volume 2, pages 42A-44 to 42A-48
1997 & 1998 Diamante, Vol. 1, pages 42A-42 through 42A-47; 1999 & 2000 Diamante, Vol. 2, pages 42A-43 through 42A-47; 2001 & 2002 Diamante, Vol. 2, pages 42A-44 through 42A-48:

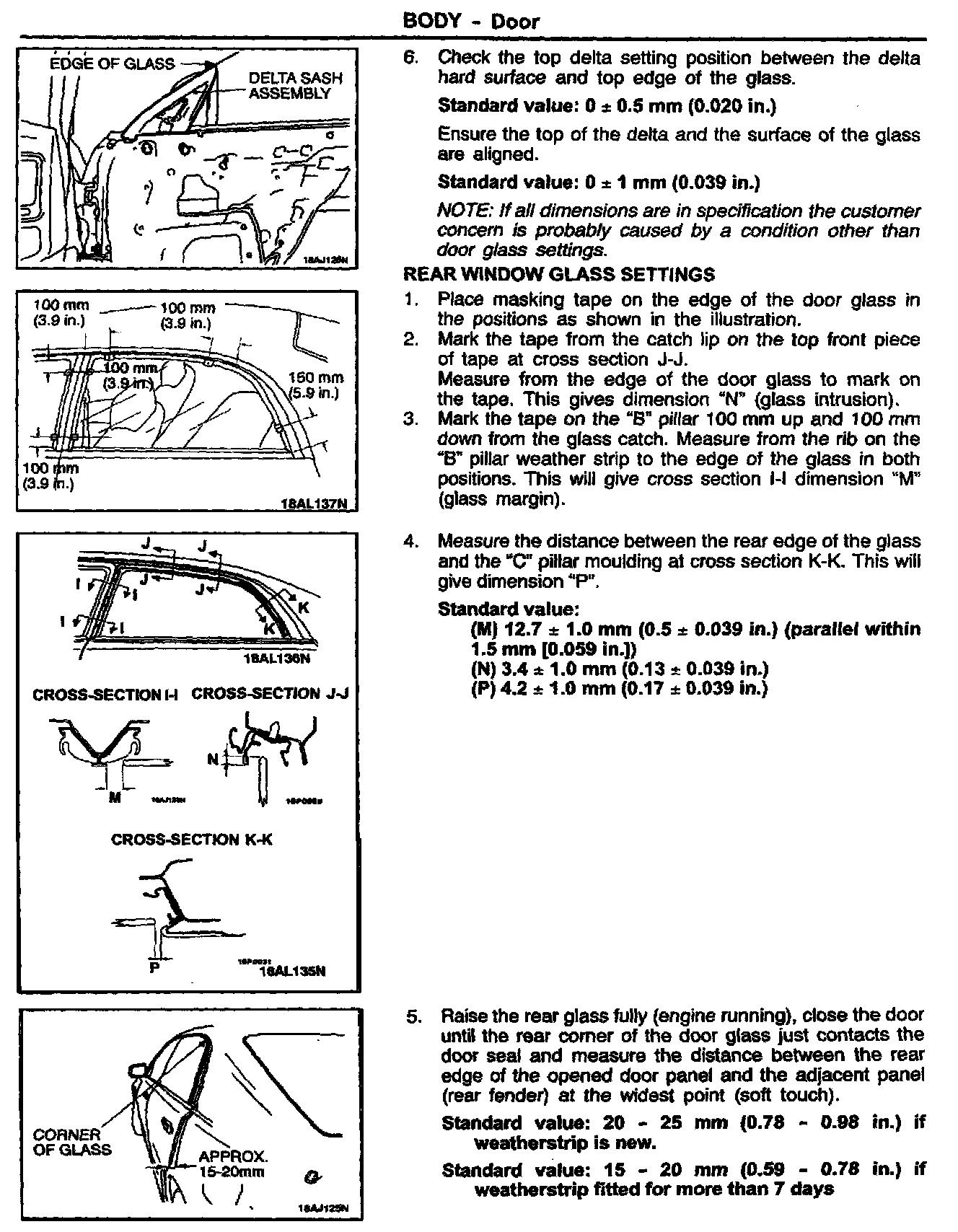

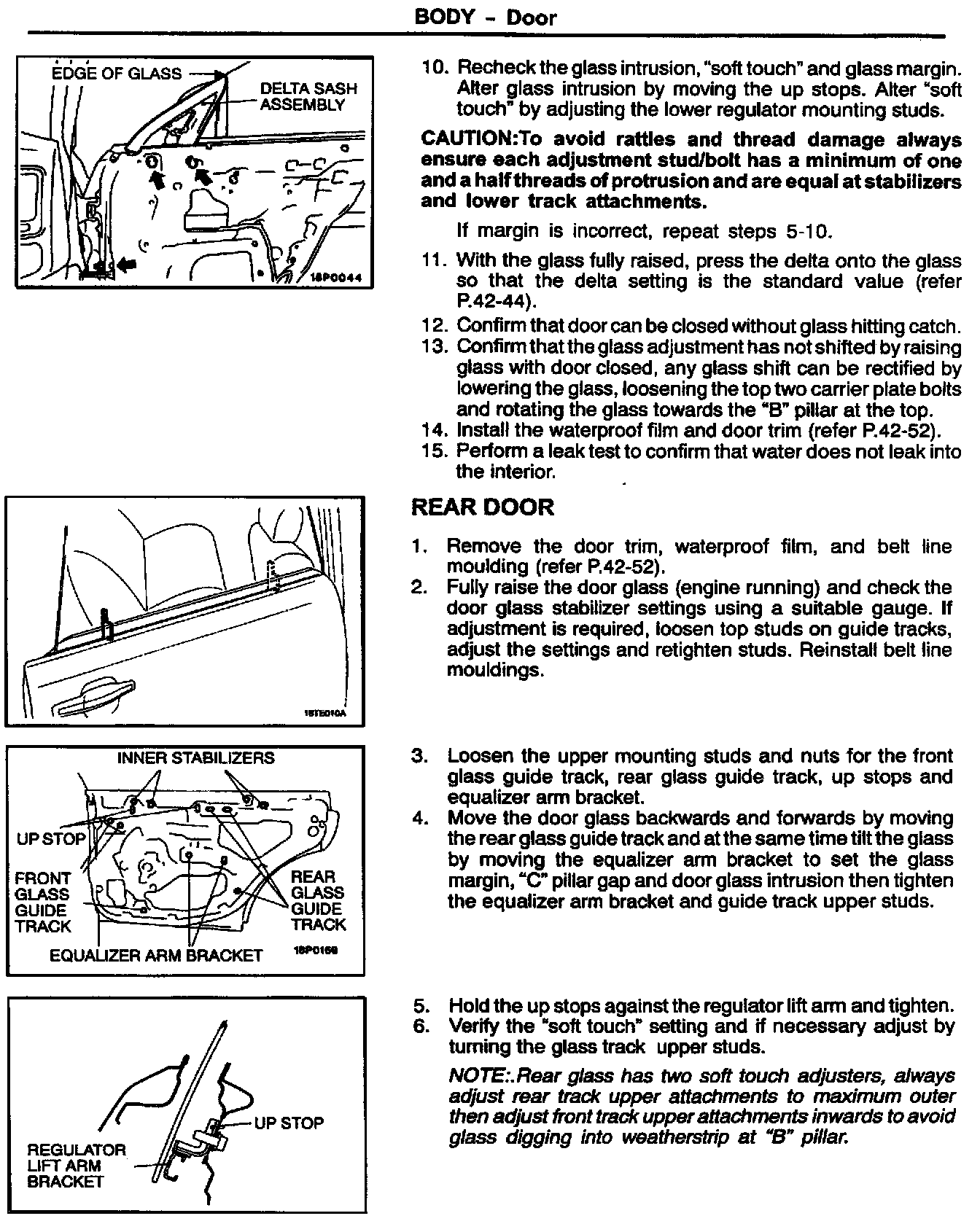

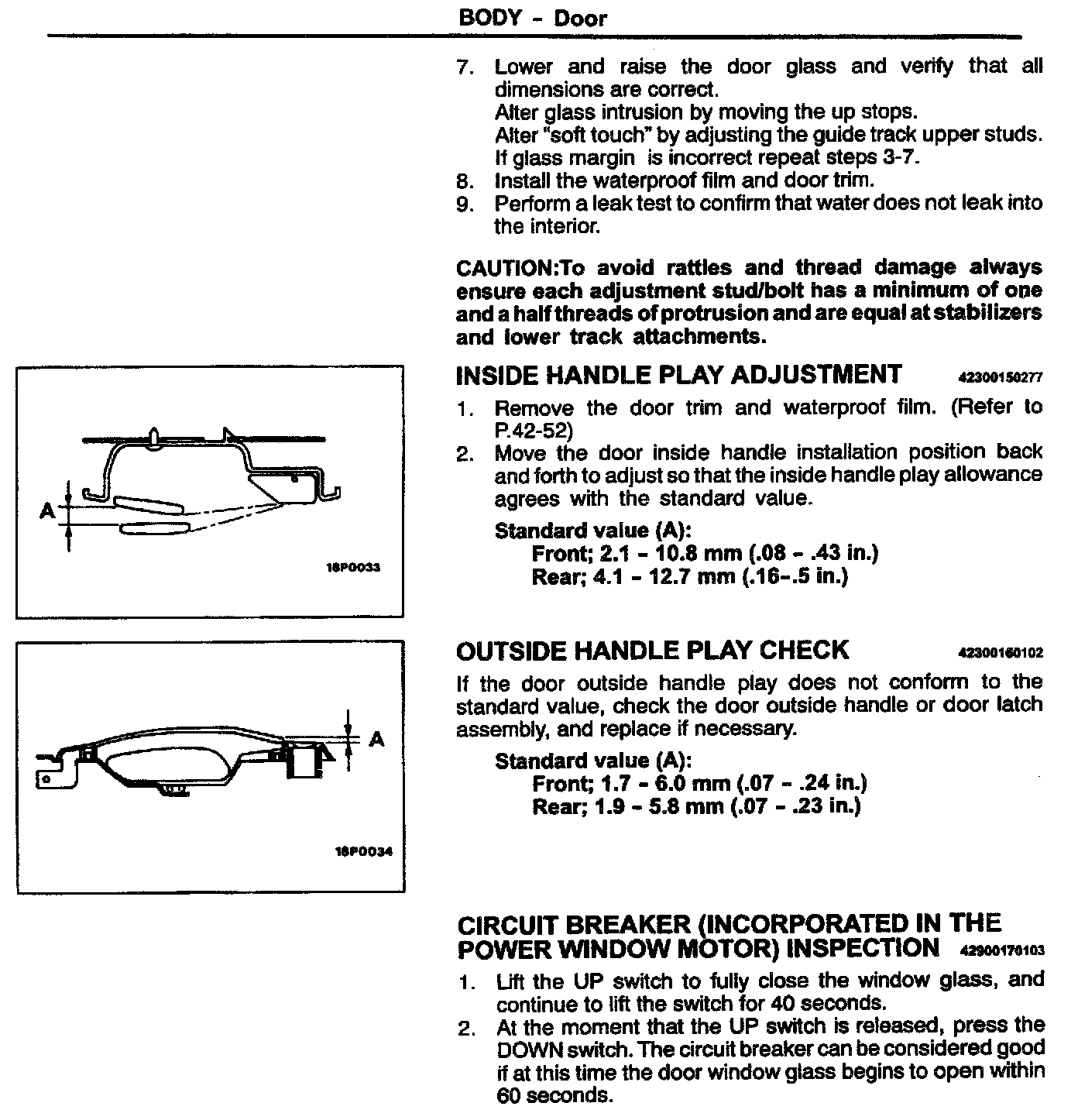

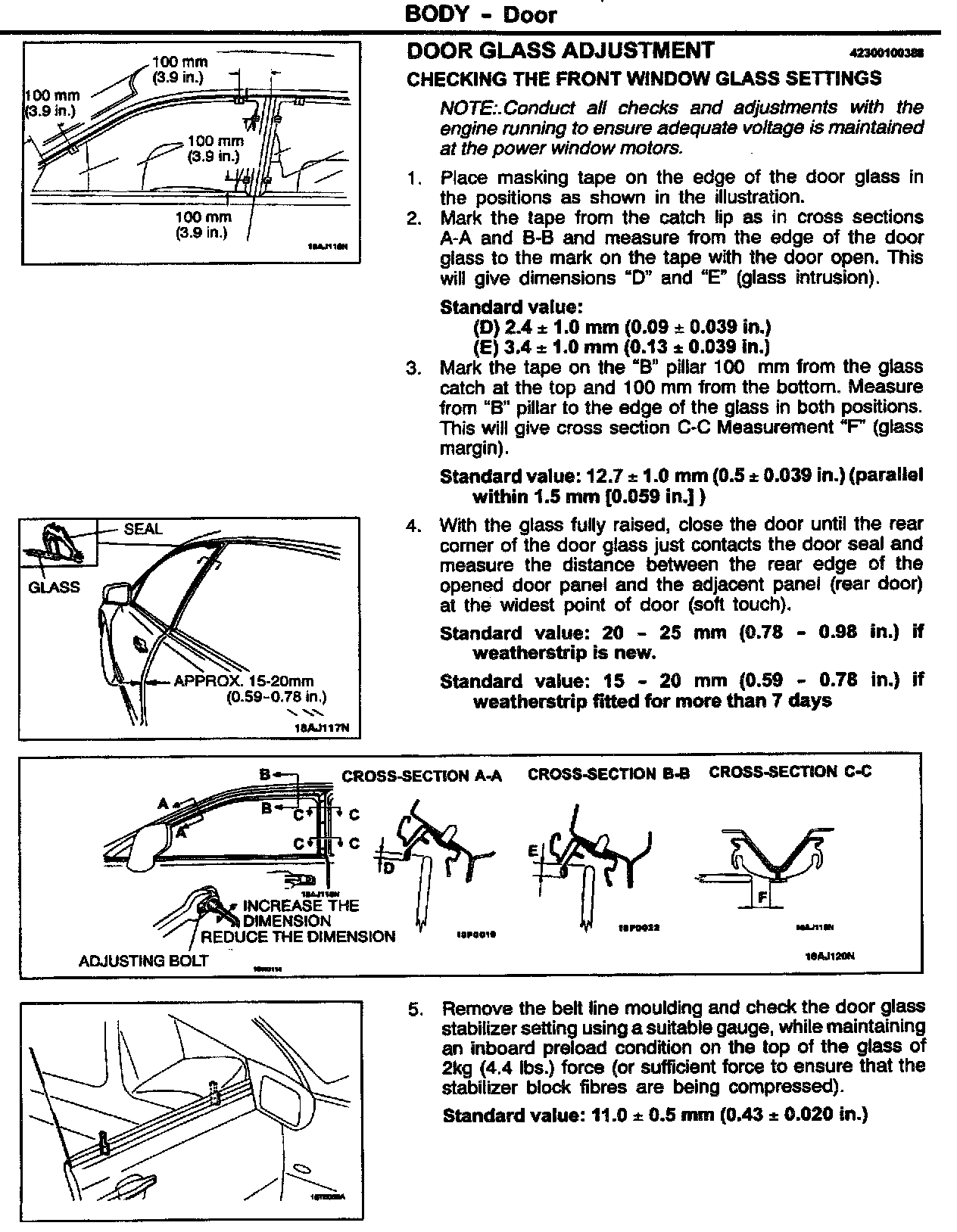

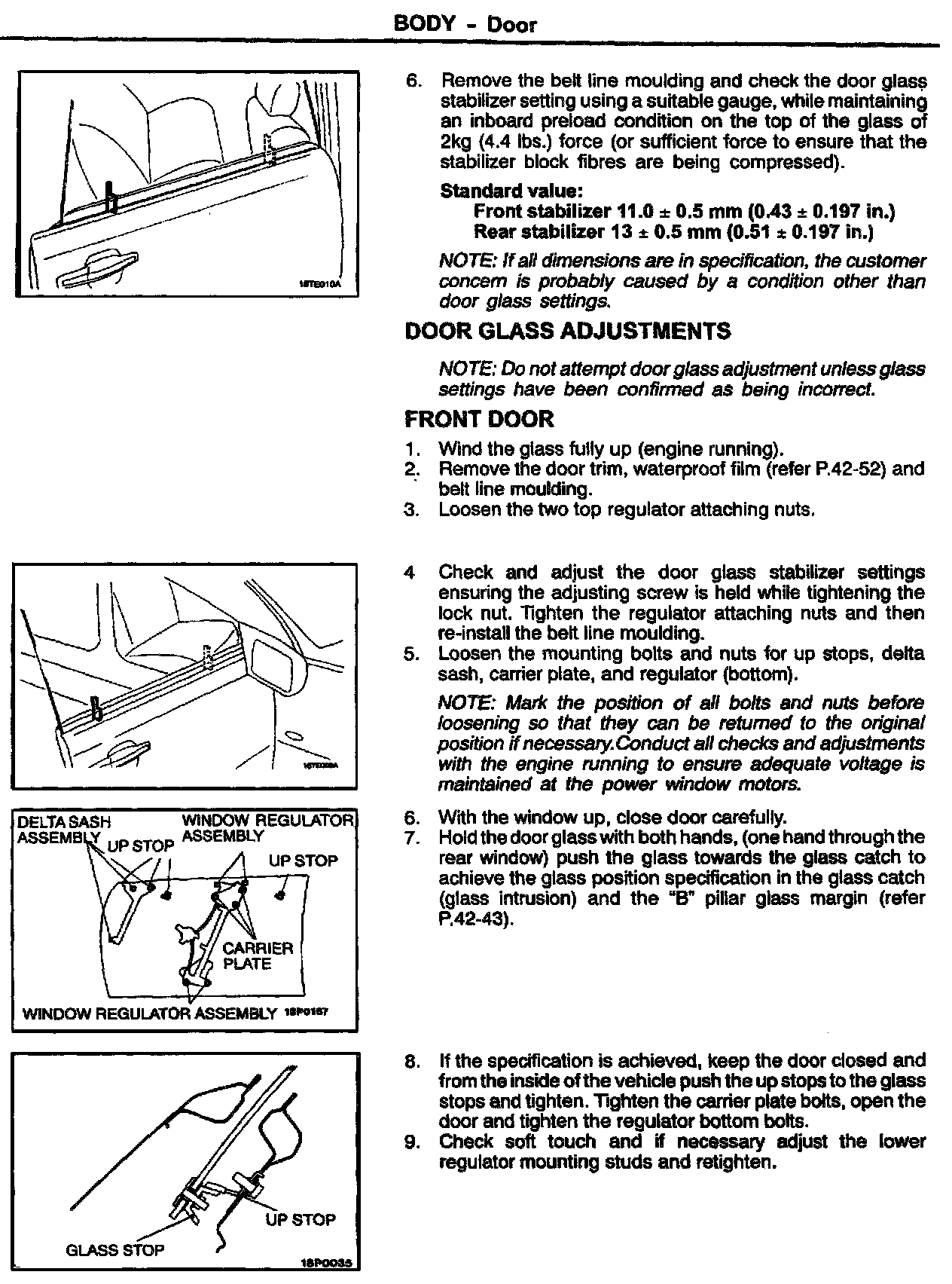

Delete the original information the pages indicated above, and replace with the pages shown.
