Transmission Mount: Service and Repair

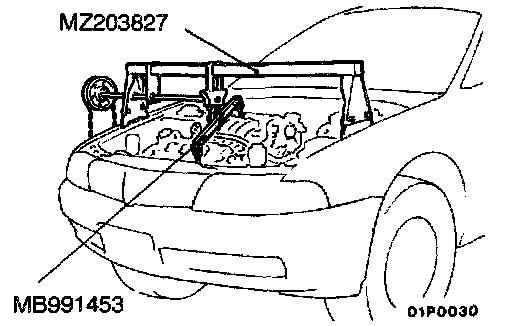

1. Fit the special tool to the vehicle and support the engine and transaxle assembly.
2. Remove the bolts and nuts from the transaxle mount bracket.
3. Slightly lower the engine and transaxle (while still supporting) and remove the transaxle mount bracket.

Installation Service Point

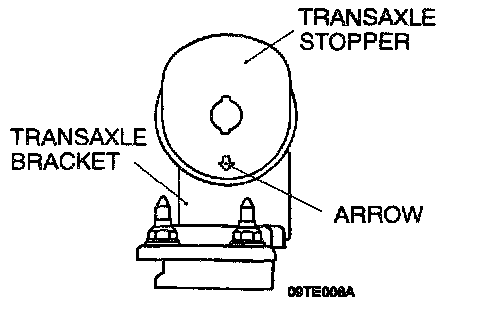

>A< Transaxle Mount Stopper

Fit the transaxle mount stopper so that the arrow points in the direction shown in the diagram.
