Curiosii for ever!: Car repair manuals for everyone.
Home >> Mitsubishi >> 2000 >> Diamante ES Sedan V6-3.5L SOHC >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Transmission Control System Relay >> Locations

Transmission Control System Relay: Locations

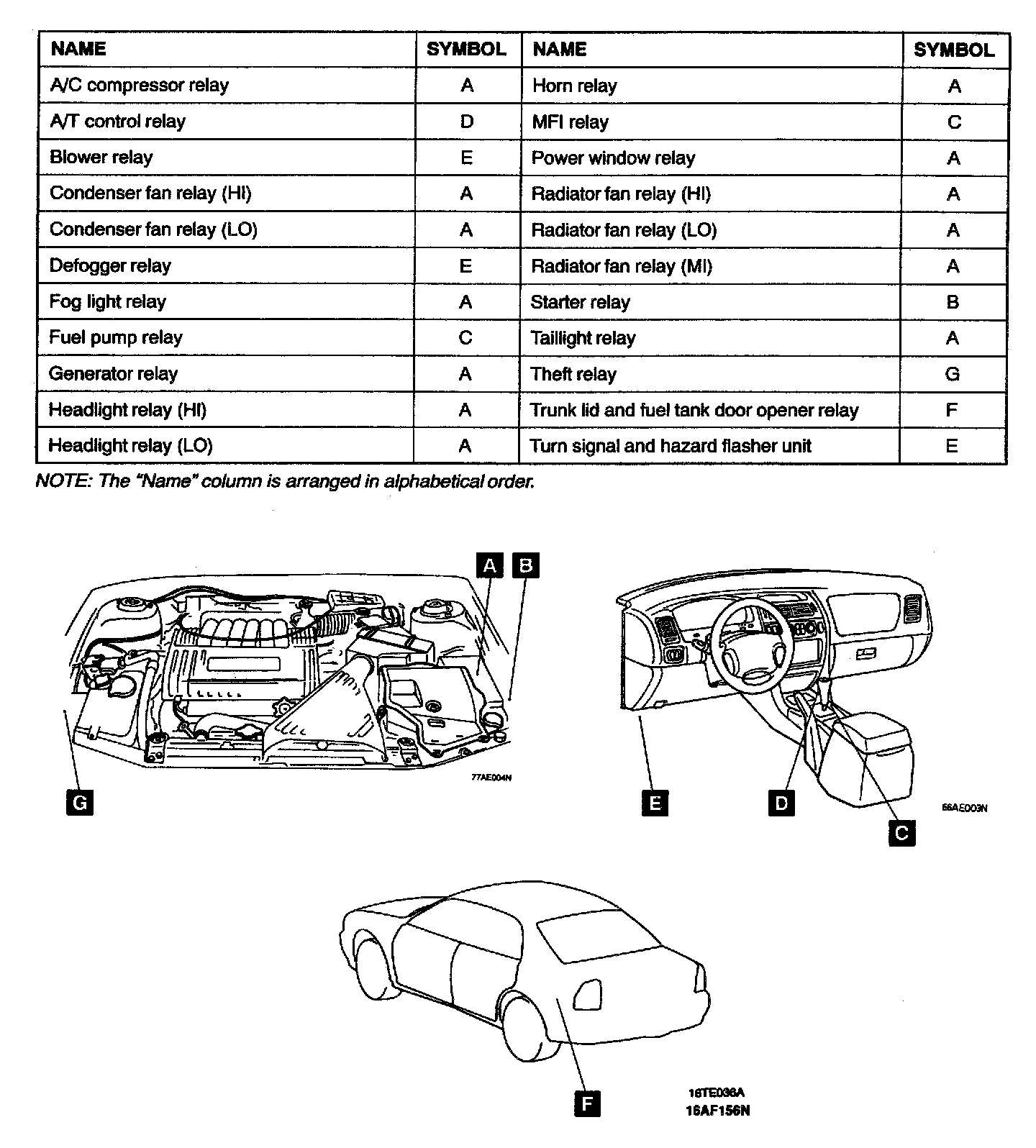

Relay - Component Location:

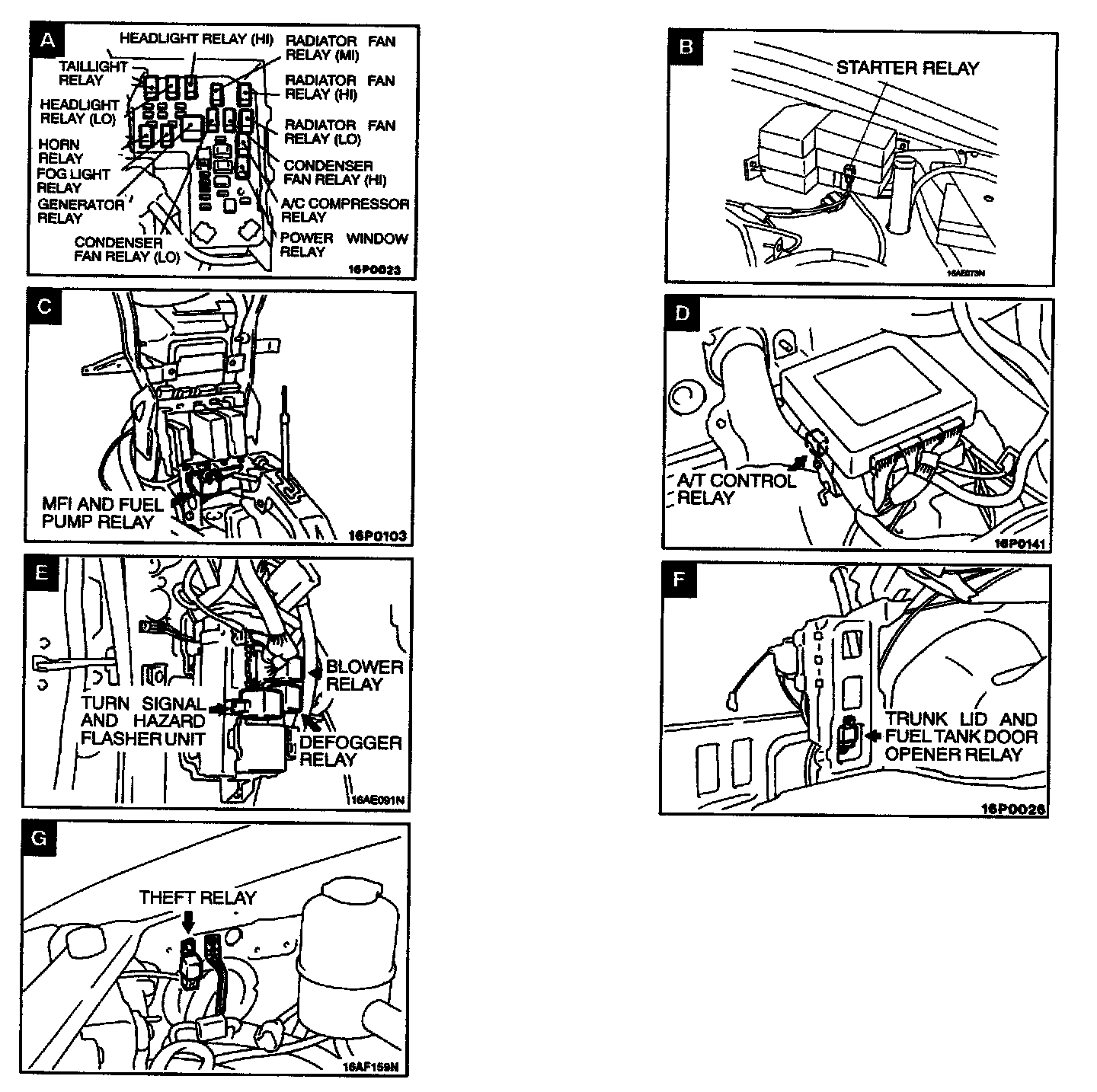

Relay - Component Views:
