Output Shaft

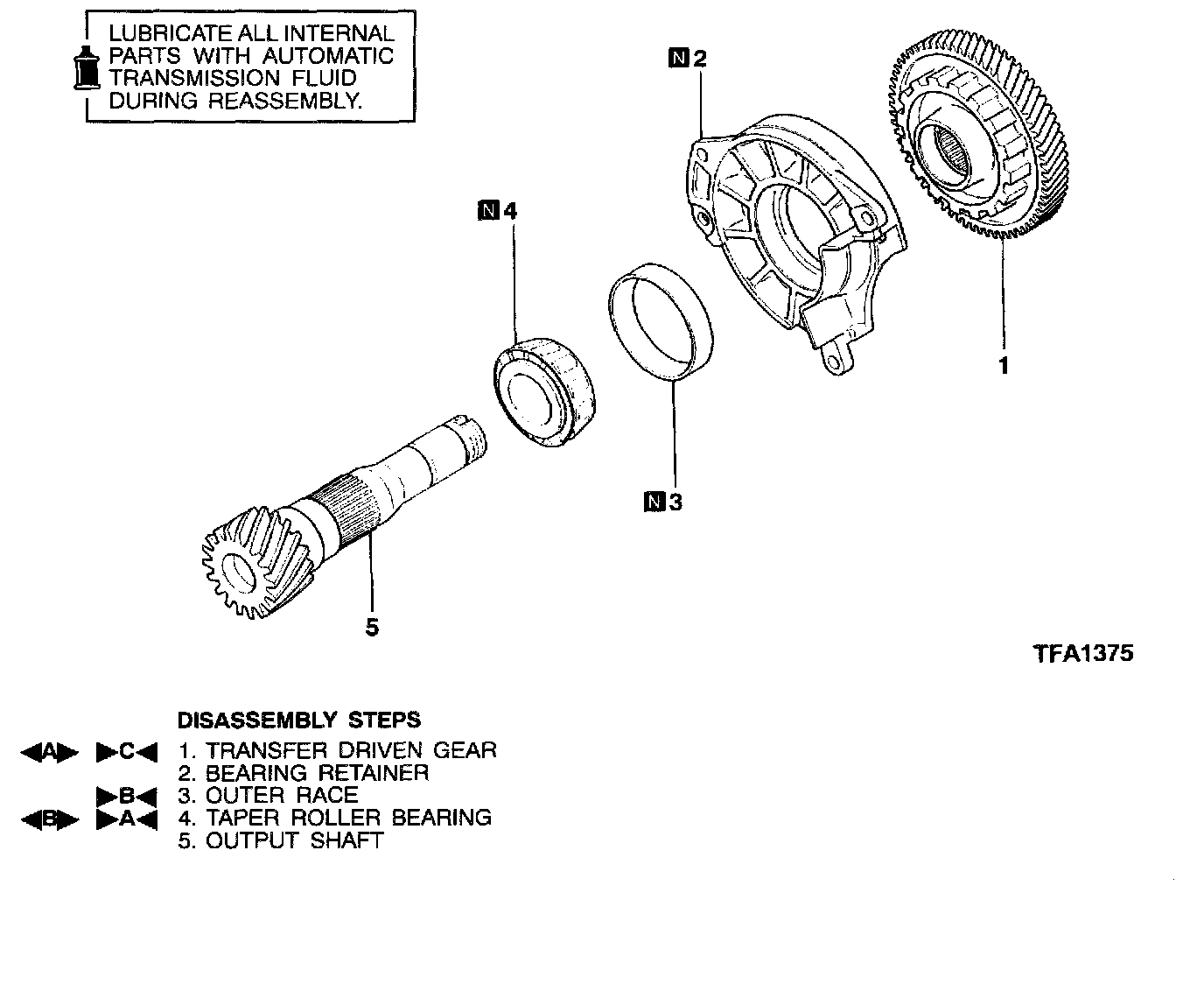

DISASSEMBLY AND REASSEMBLY

DISASSEMBLY SERVICE POINTS

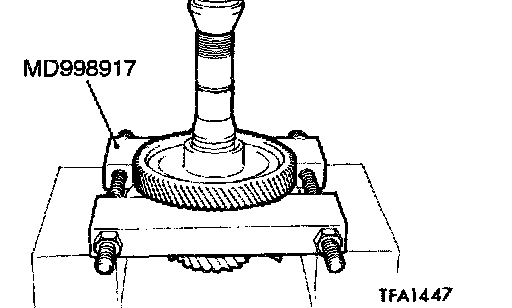

>A< TRANSFER DRIVEN GEAR REMOVAL

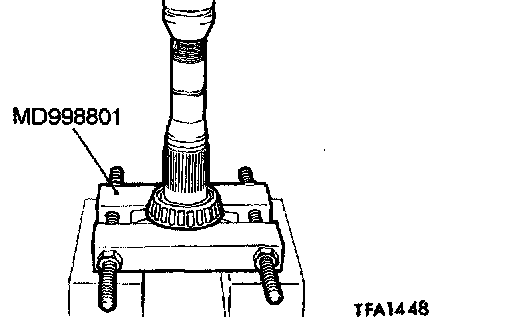

>B< TAPER ROLLER BEARING REMOVAL

REASSEMBLY SERVICE POINTS





>A< ROLLER BEARING INSTALLATION

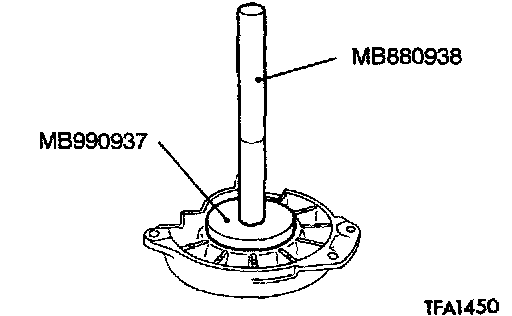

>B< OUTER RACE INSTALLATION

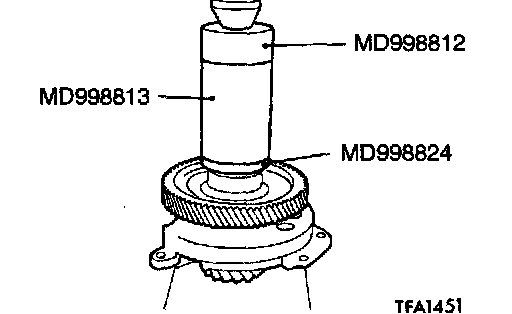

>C< TRANSFER DRIVEN GEAR INSTALLATION
