Suspension - Revised Rear Control Arm Bushing Service
No.: TSB-06-27-001DATE: January, 2006
MODEL:
1997-04 Diamante
SUBJECT:
REAR AXLE KNUCKLE ASSEMBLY BUSHING REPLACEMENT - SERVICE MANUAL REVISION
TSB Revision: TSB-06-27-001
PURPOSE
Rear suspension control arm bushings on the affected vehicles are press-fitted into the knuckles. This bulletin contains new procedures for removing and installing these 40 mm bushings using a new special tool, MB992107-01.
Dealers can purchase MB992107-01 Rear Suspension Bushing Replacer from OTC/SPX (phone number 1-888-727-6672).
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual pages.
AFFECTED VEHICLES
1997-2004 Diamante
AFFECTED SERVICE MANUALS
1997 Diamante, Volume 1, pages 27-2 and 27-3
1998 Diamante, Volume 1, pages 27-2 and 27-3
1999 Diamante, Volume 2, pages 27-2 and 27-3
2000 Diamante, Volume 2, pages 27-2 and 27-3
2001 Diamante, Volume 2, pages 27-2 and 27-3
2002 Diamante, Volume 2, pages 27-2 and 27-3
2003 Diamante, Volume 2, pages 27-2 and 27-3
2004 Diamante, Volume 2, pages 27-2 and 27-3

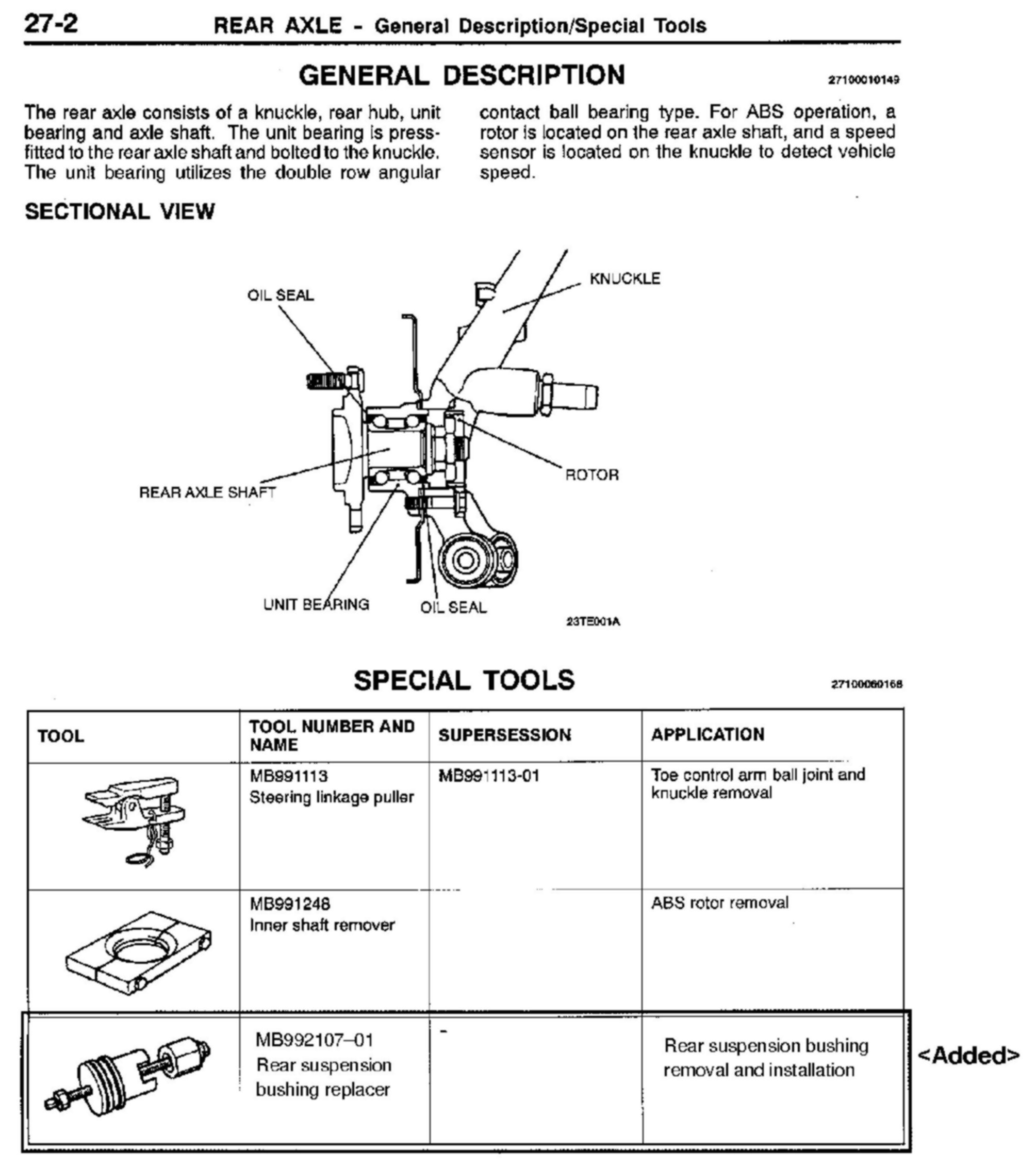

1998-2004 Diamante, page 27-2.

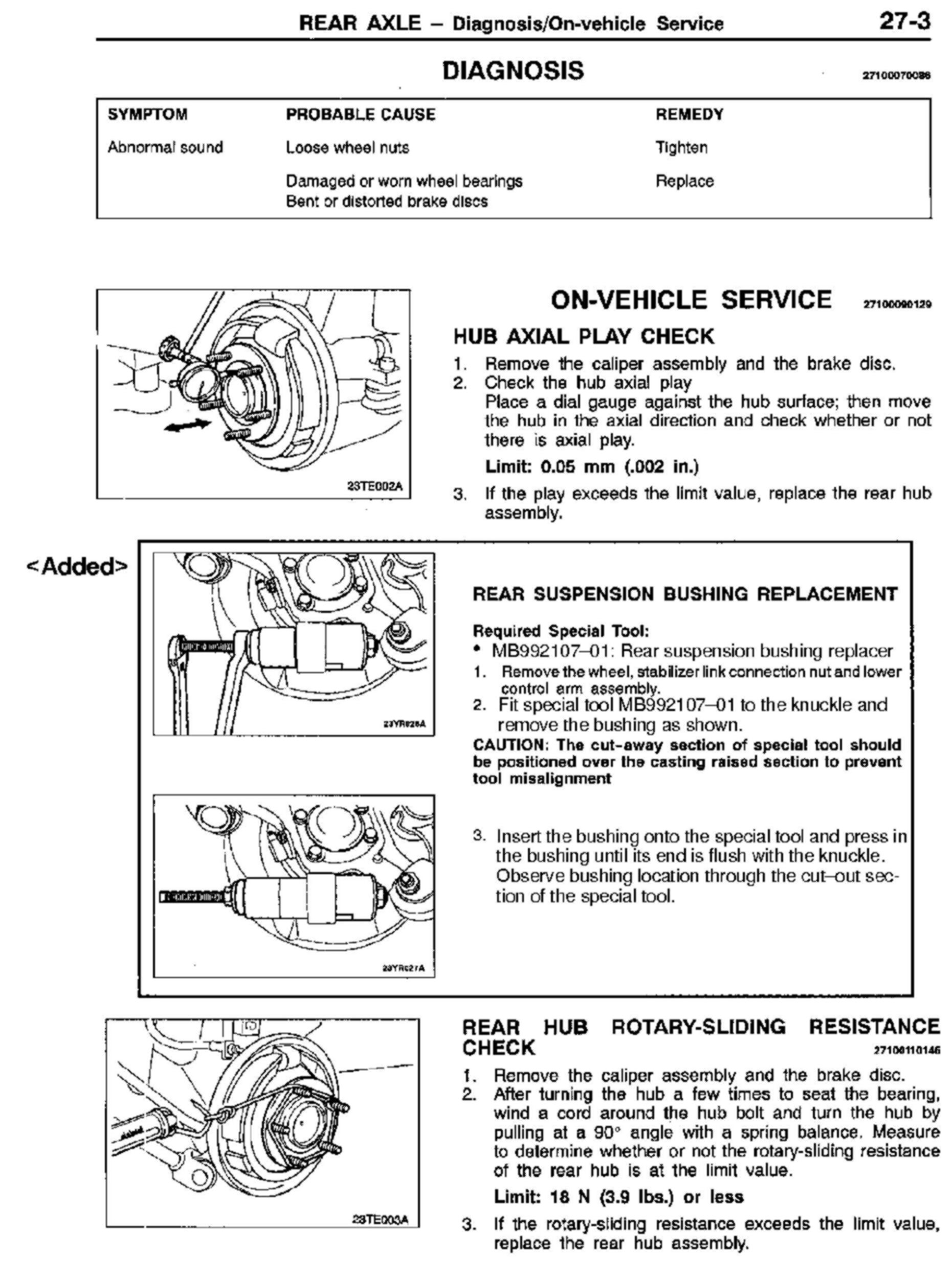

1998-2004 Diamante, page 27-3.
