Removal and Replacement

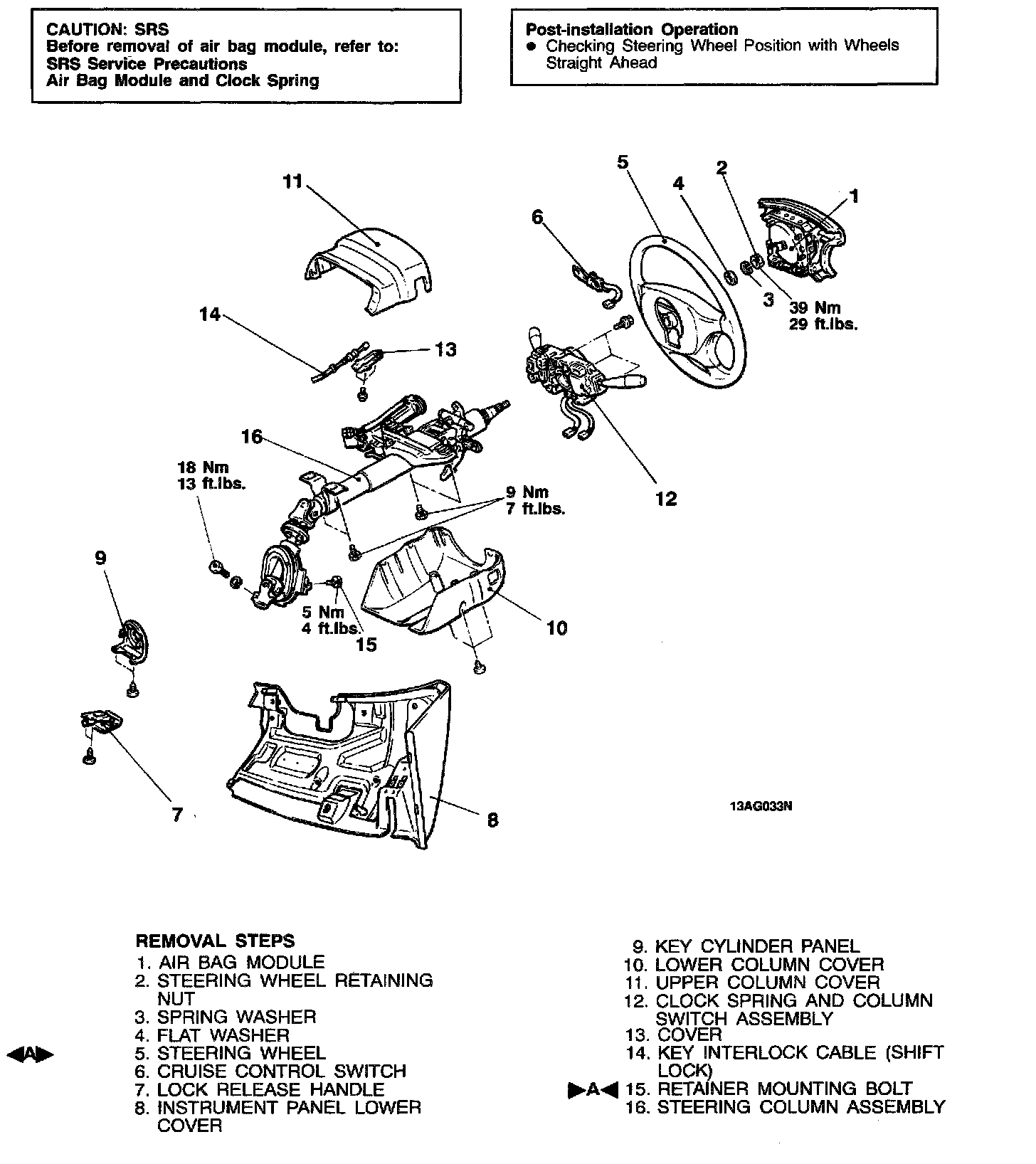

REMOVAL AND INSTALLATION
Removal Service Point

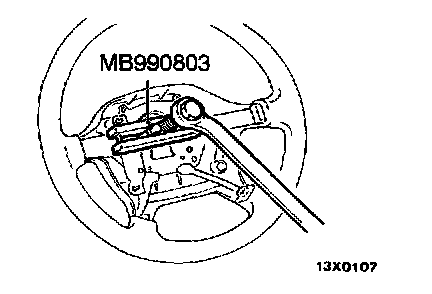

[A] Steering Wheel Removal

Installation Service Point
]A[ Retainer Mounting Bolt

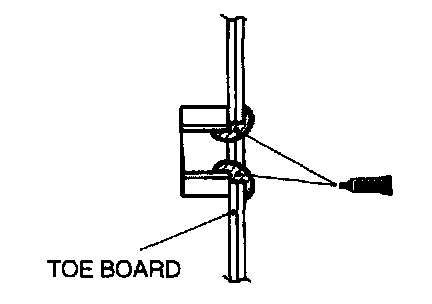

1. Before installing the bolt, coat the mounting hole on the toe board with the specified sealant.
Specified Sealant: Three-bond 1104 or equivalent product.
