Ignition Lock Cable: Service and Repair

REMOVAL AND INSTALLATION

INSTALLATION SERVICE POINTS

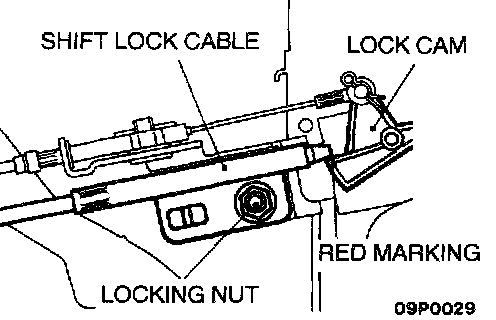

>A< SHIFT LOCK CABLE (SELECTOR LEVER SIDE) INSTALLATION





1. Place the selector lever in position "P".
2. Fasten the shift lock cable at the position where the end of the shift lock cable is positioned above the red marking.

>B< KEY INTERLOCK CABLE (STEERING LOCK CYLINDER SIDE) INSTALLATION

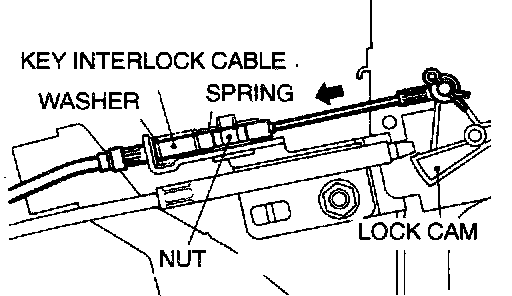

>C< KEY INTERLOCK CABLE (SELECTOR LEVER SIDE) INSTALLATION





1. Install the key interlock cable on the lock cam.
2. Install the spring and washer of the key interlock cable as shown.
3. While lightly pushing the cable coupling portion of the lock cam in the direction A, tighten the nut to fasten the key interlock cable.

INSPECTION
Check the cable assembly for function and for damage.
