Component Tests and General Diagnostics

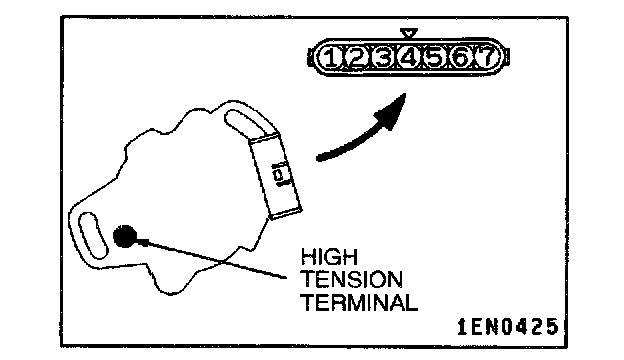

1. Measurement of the primary coil resistance Measure the resistance between connector terminal 1 and 4 of the distributor.

Standard value: 0.5 - 0.7 Ohms

2. Measurement of secondary coil resistance Measure the resistance between the high-voltage terminals and connector terminals 1 or 4.

Standard value: 9 - 13 kOhms
