Electrical Diagrams

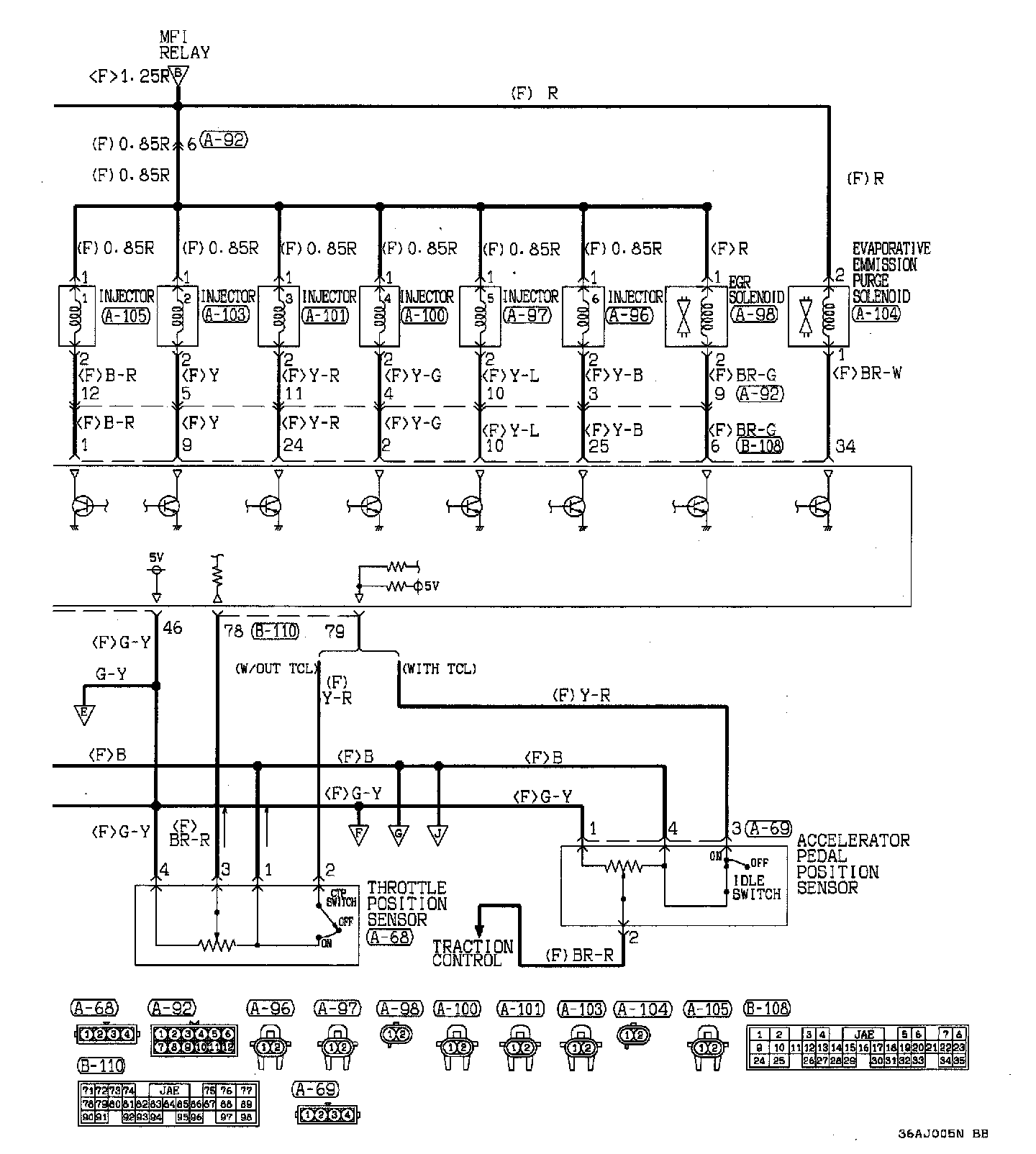

MFI System Part 1:

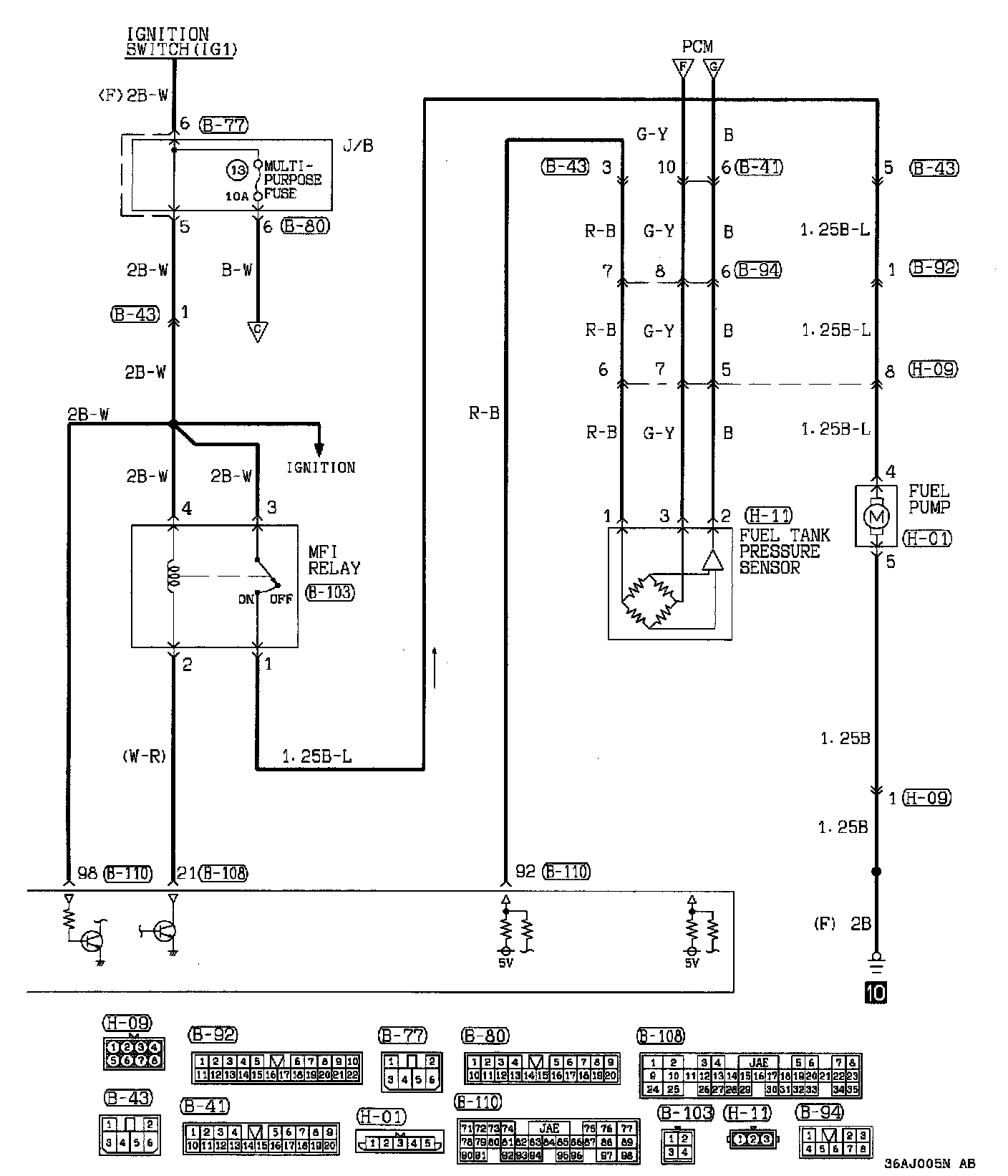

MFI System Part 2:

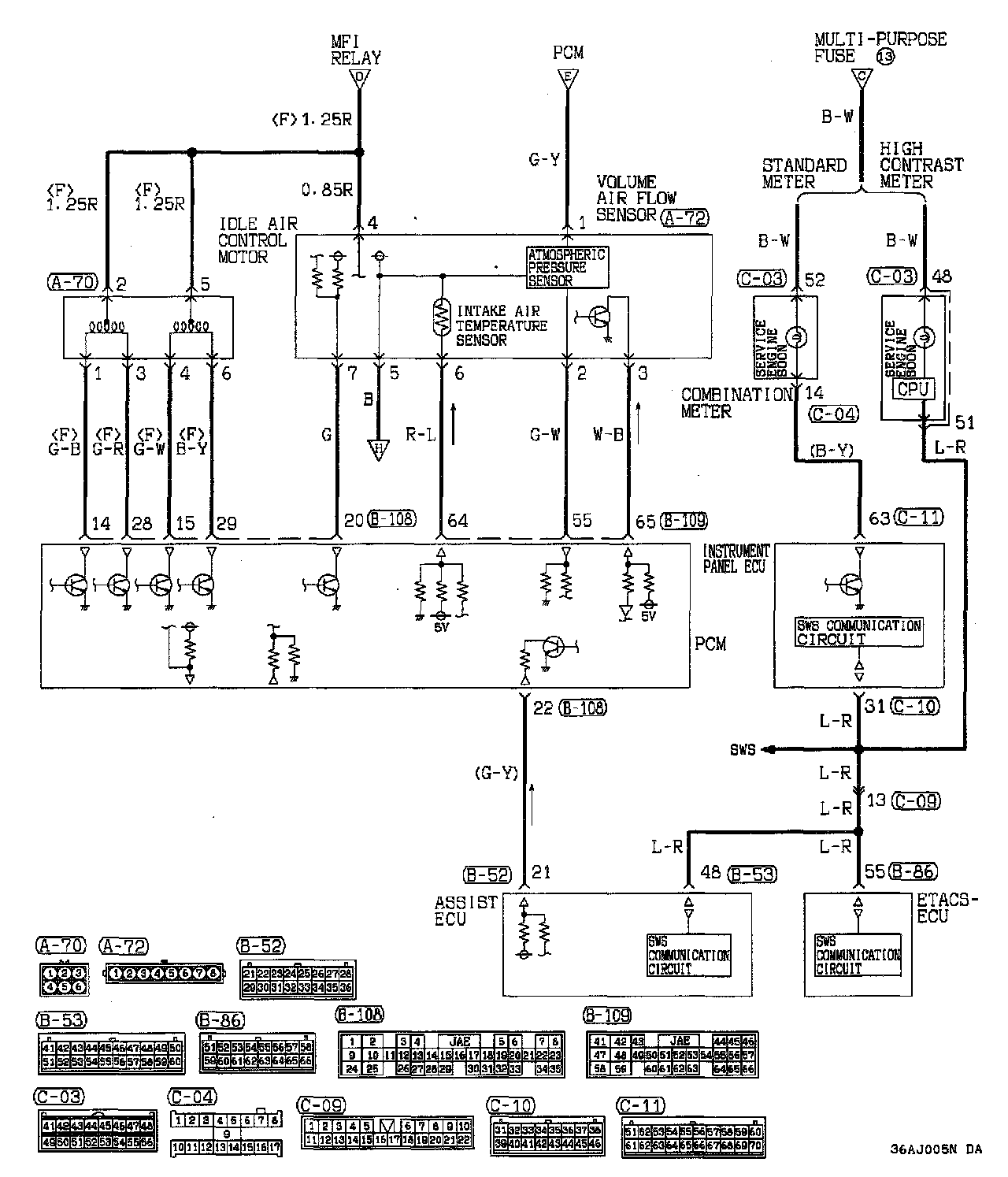

MFI System Part 3:

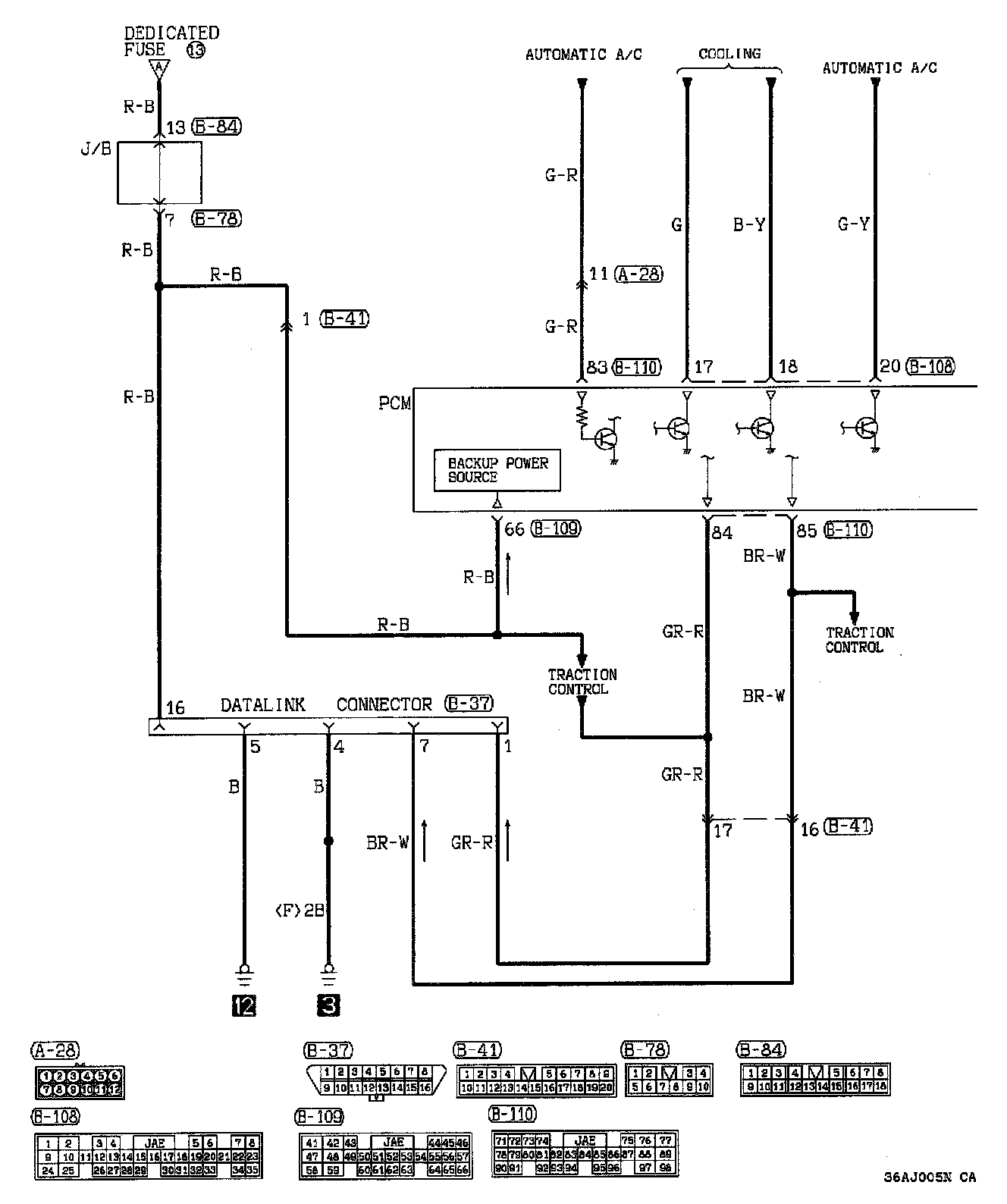

MFI System Part 4:

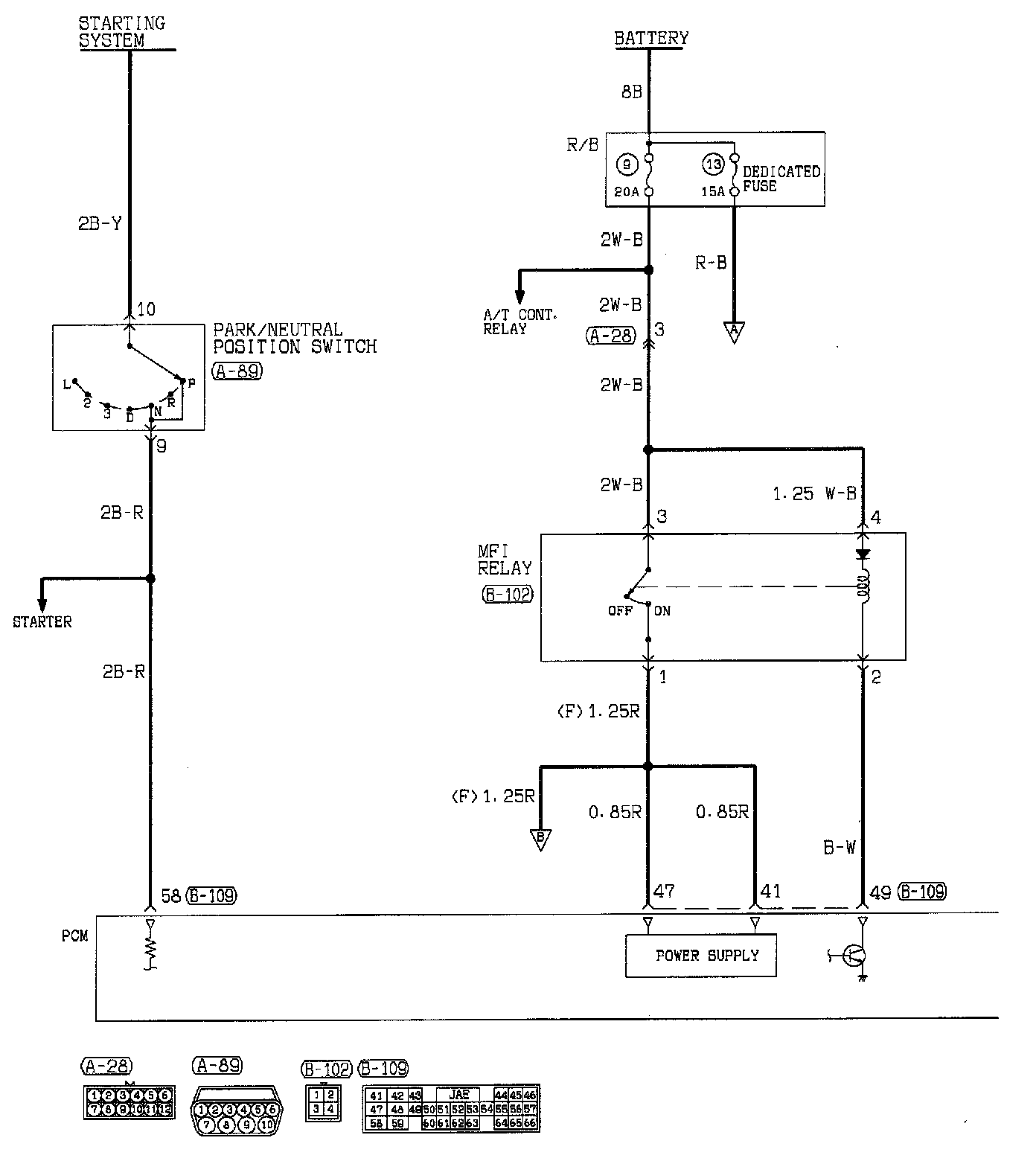

MFI System Part 5:

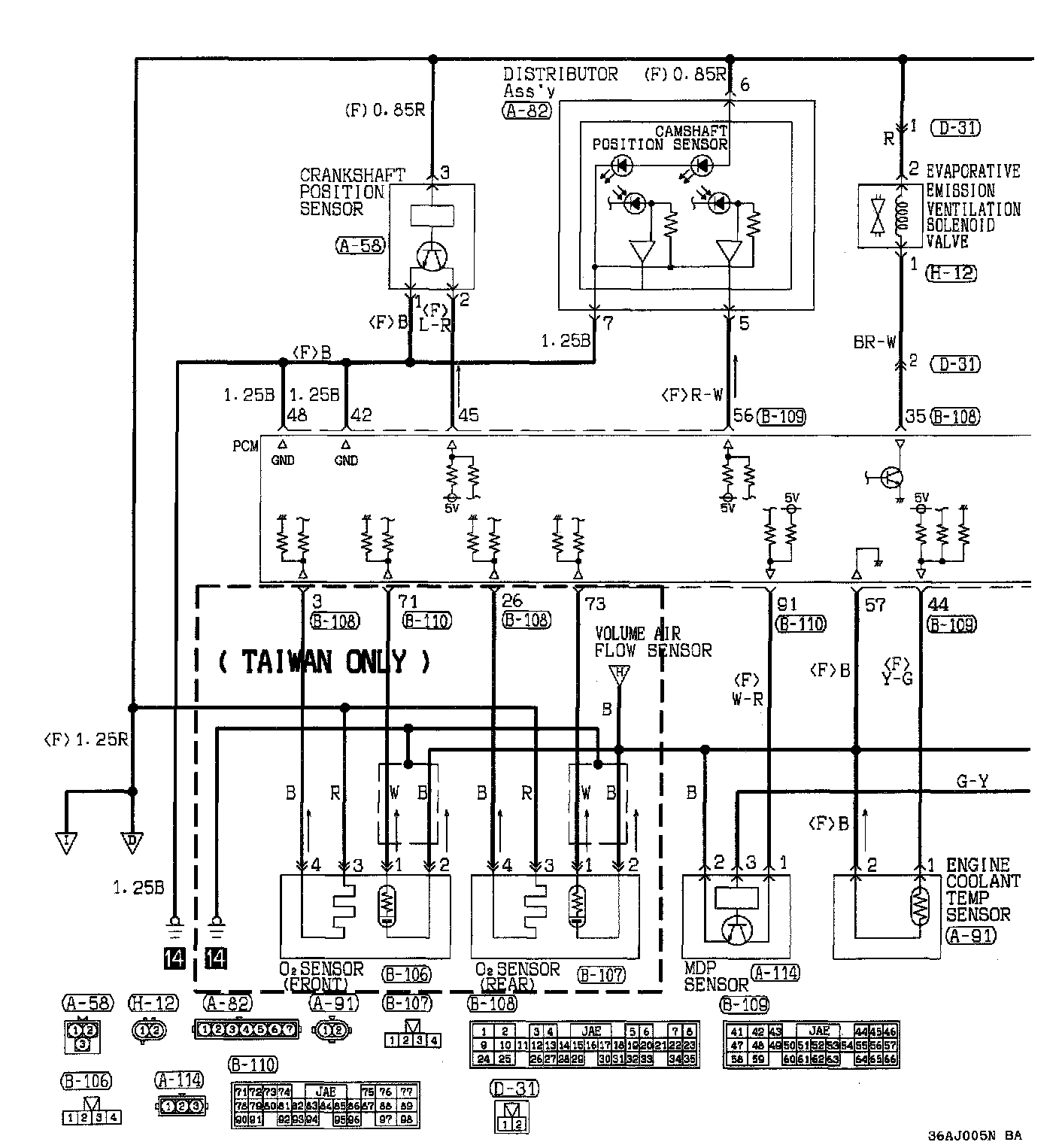

MFI System Part 6:

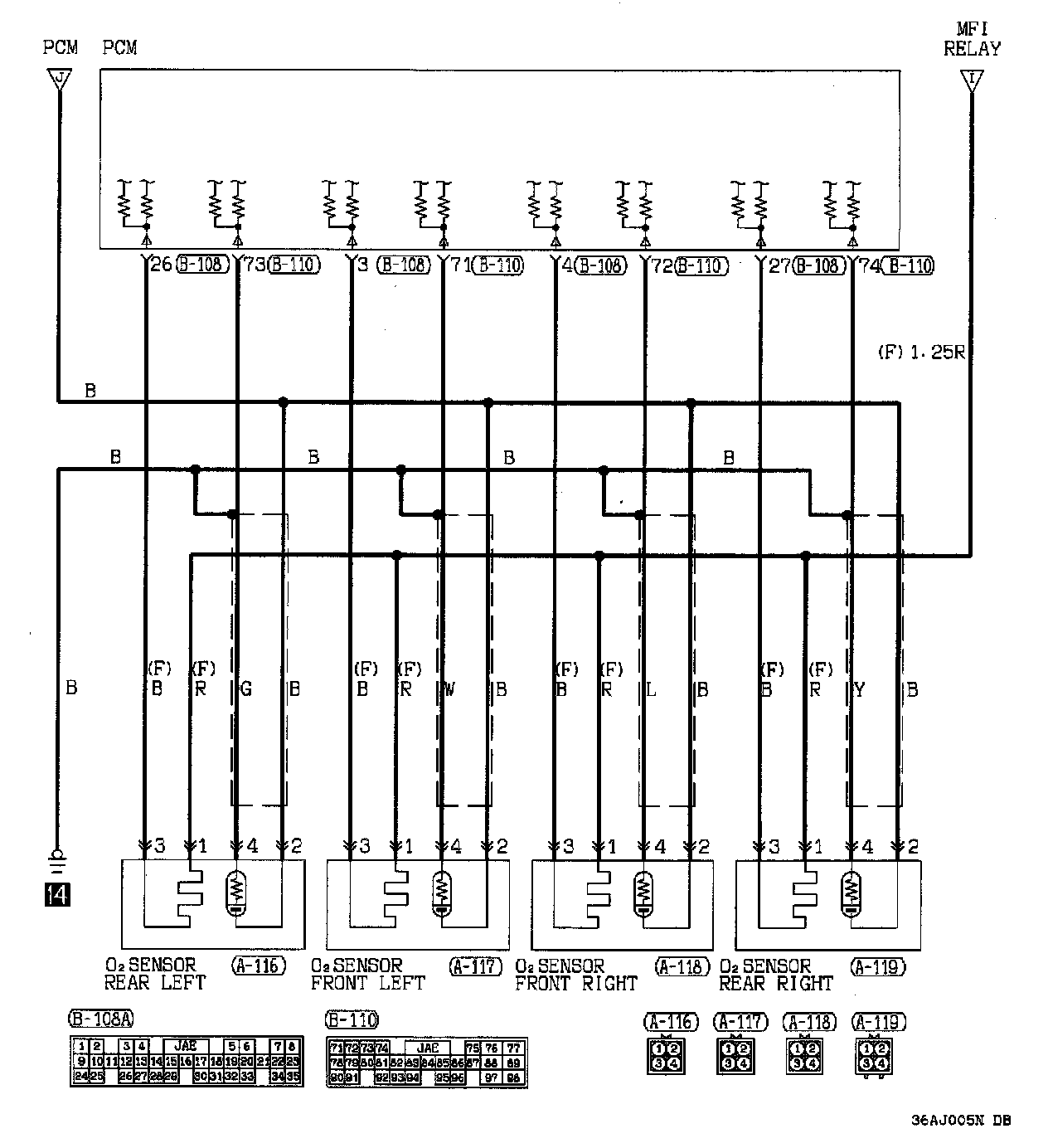

MFI System Part 7:
MFI System Part 8:
