Memory Power Seat ECU

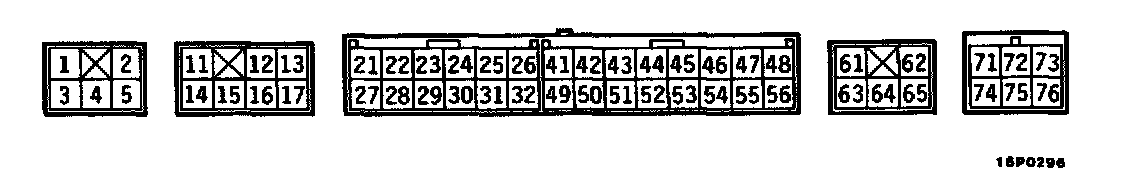

Memory Power Seat ECU Connector Views:

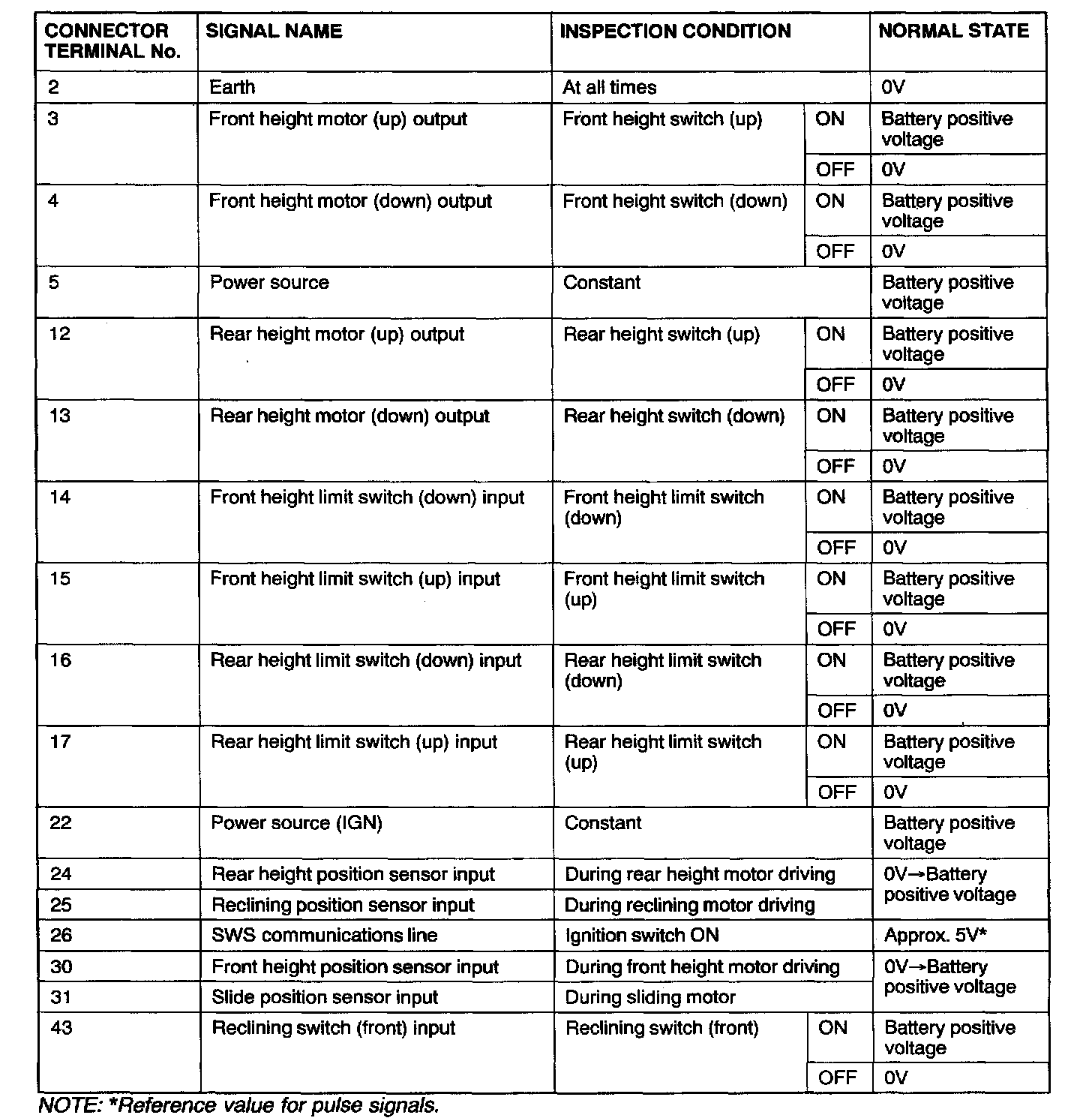

Memory Power Seat ECU Pinouts Part 1:

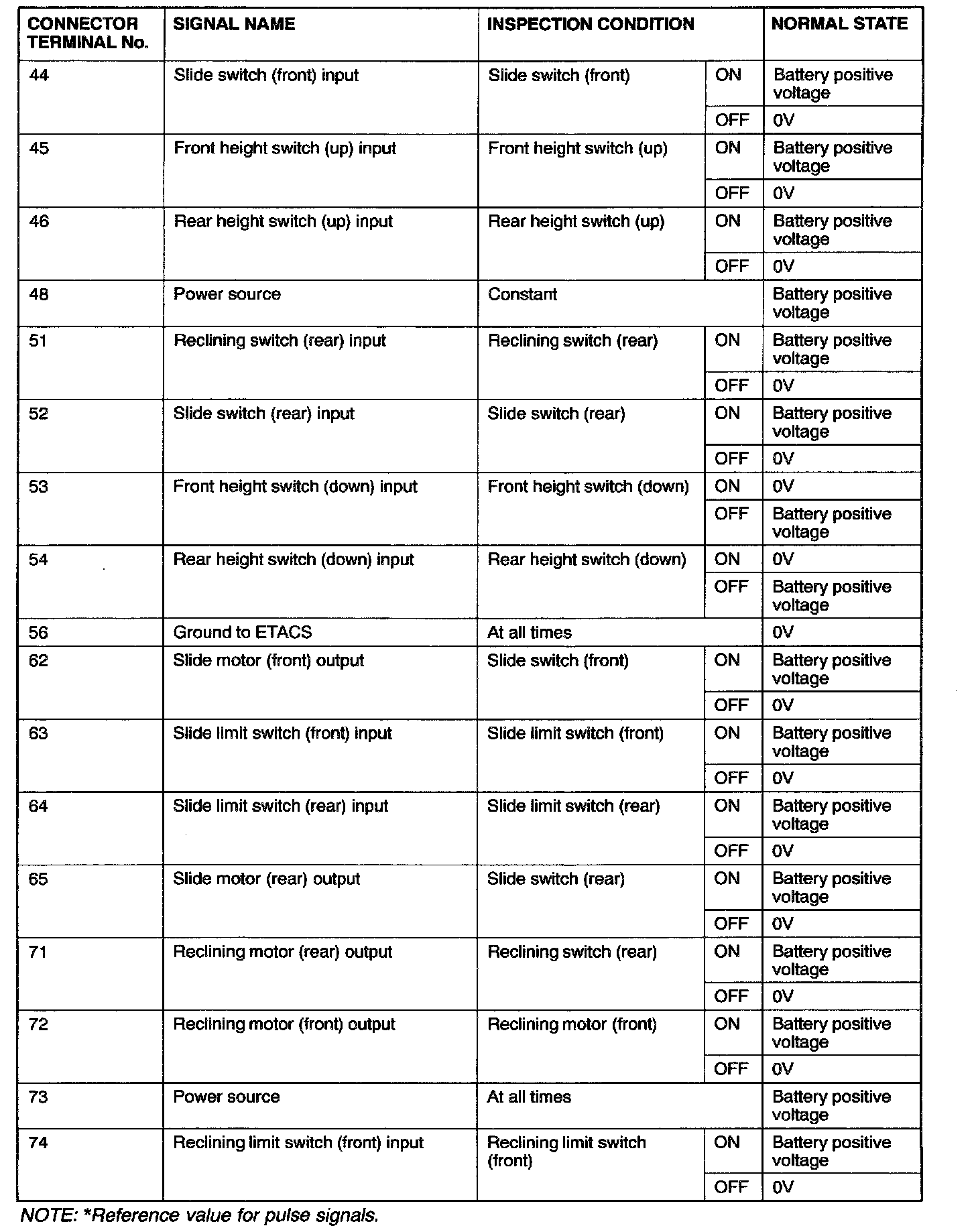

Part 2:



Part 3:
