Wiring Configuration Diagrams - Manual Revisions
No: TSB-00-54-010DATE: November, 2000
MODEL: 2000 Diamante
SUBJECT:
CORRECTED CONFIGURATION DIAGRAMS (ENGINE COMPARTMENT & DASH PANEL) - SERVICE MANUAL REVISION
[TSB Revision TSB-00-54-010]
PURPOSE
This bulletin contains corrected pages for certain engine compartment and dash panel configuration diagrams which were improperly printed in the original paper manual.
Write the TSB revision number of this bulletin in the TSB Revision" box at the bottom of the affected service manual page.
AFFECTED VEHICLES
2000 Diamante
AFFECTED SERVICE MANUAL
2000 Diamante Service Manual, Volume 2, Pages 80-5, 7, 9, 11
SERVICE MANUAL REVISIONS
2000 Diamante Service Manual, Volume 2, Page 80-5
Delete the original configuration diagram and replace it with the connected diagram.
2000 Diamante Service Manual, Volume 2, Page 80-7
Delete the original configuration diagram and replace it with the corrected diagram.

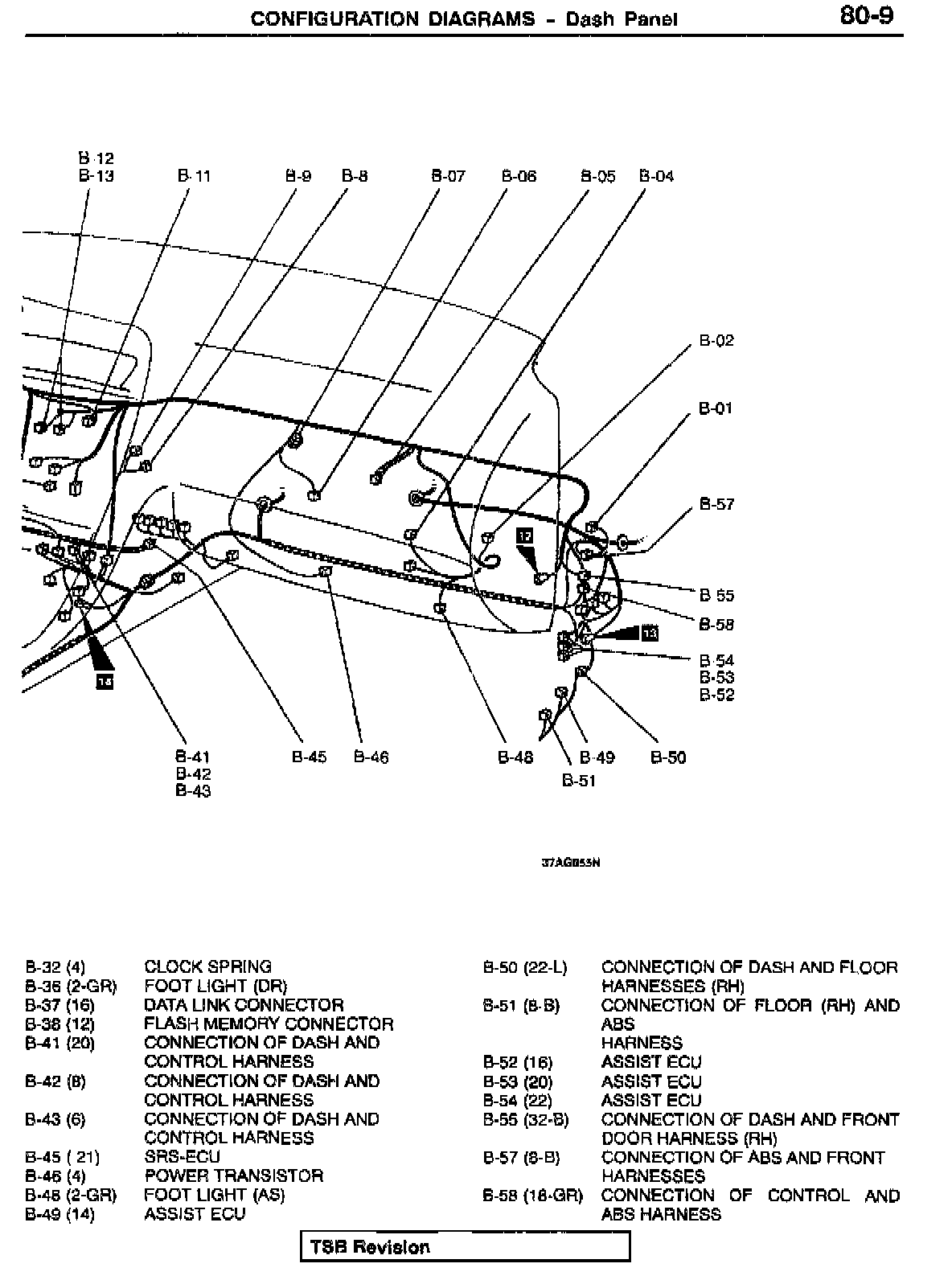

2000 Diamante Service Manual, Volume 2, Page 80-9
Delete the original configuration diagram and replace it with the corrected diagram.

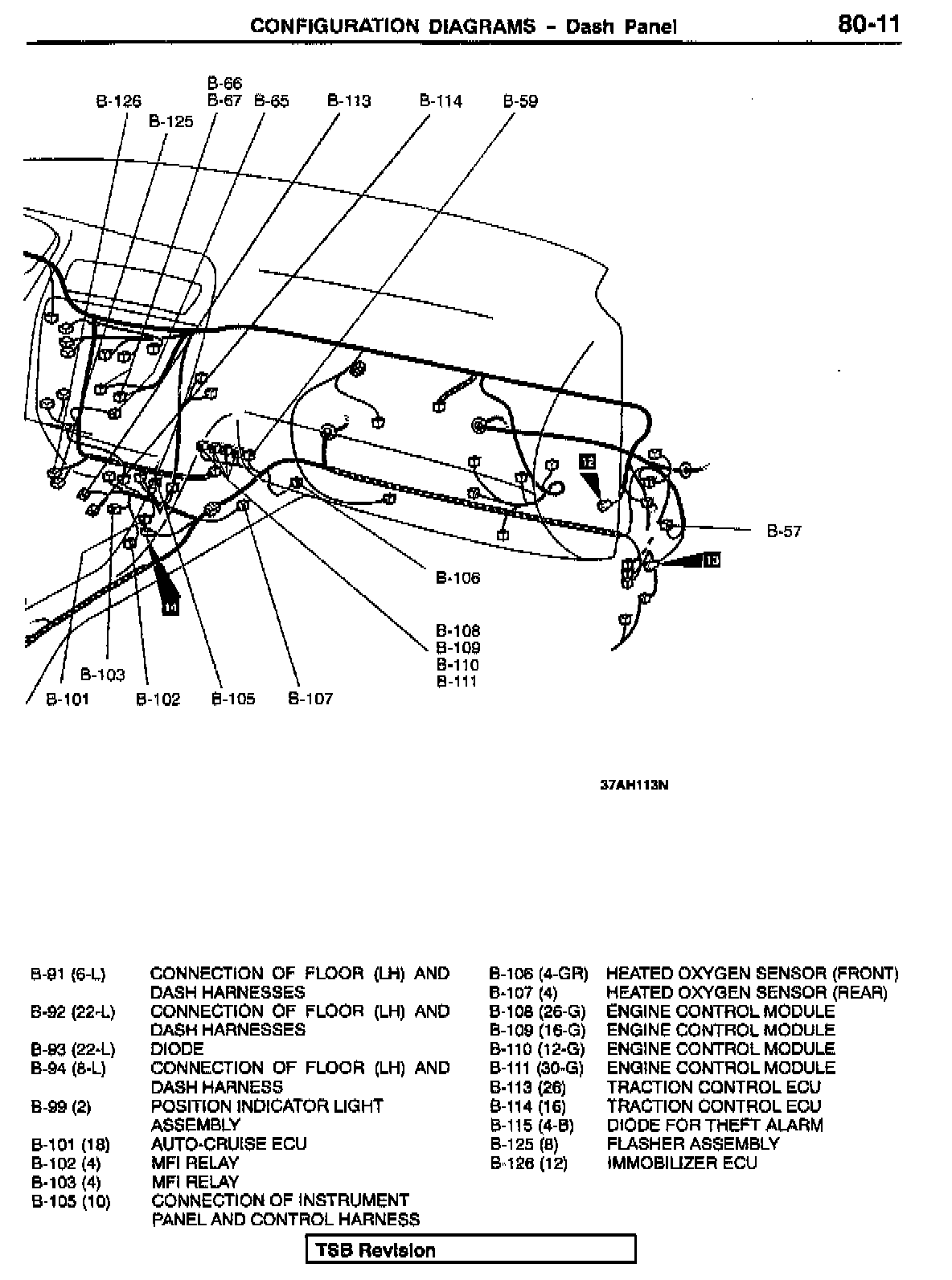

2000 Diamante Service Manual, Volume 2, Page 80-11
Delete the original configuration diagram and replace it with the corrected diagram.
