Hose/Line HVAC: Service and Repair

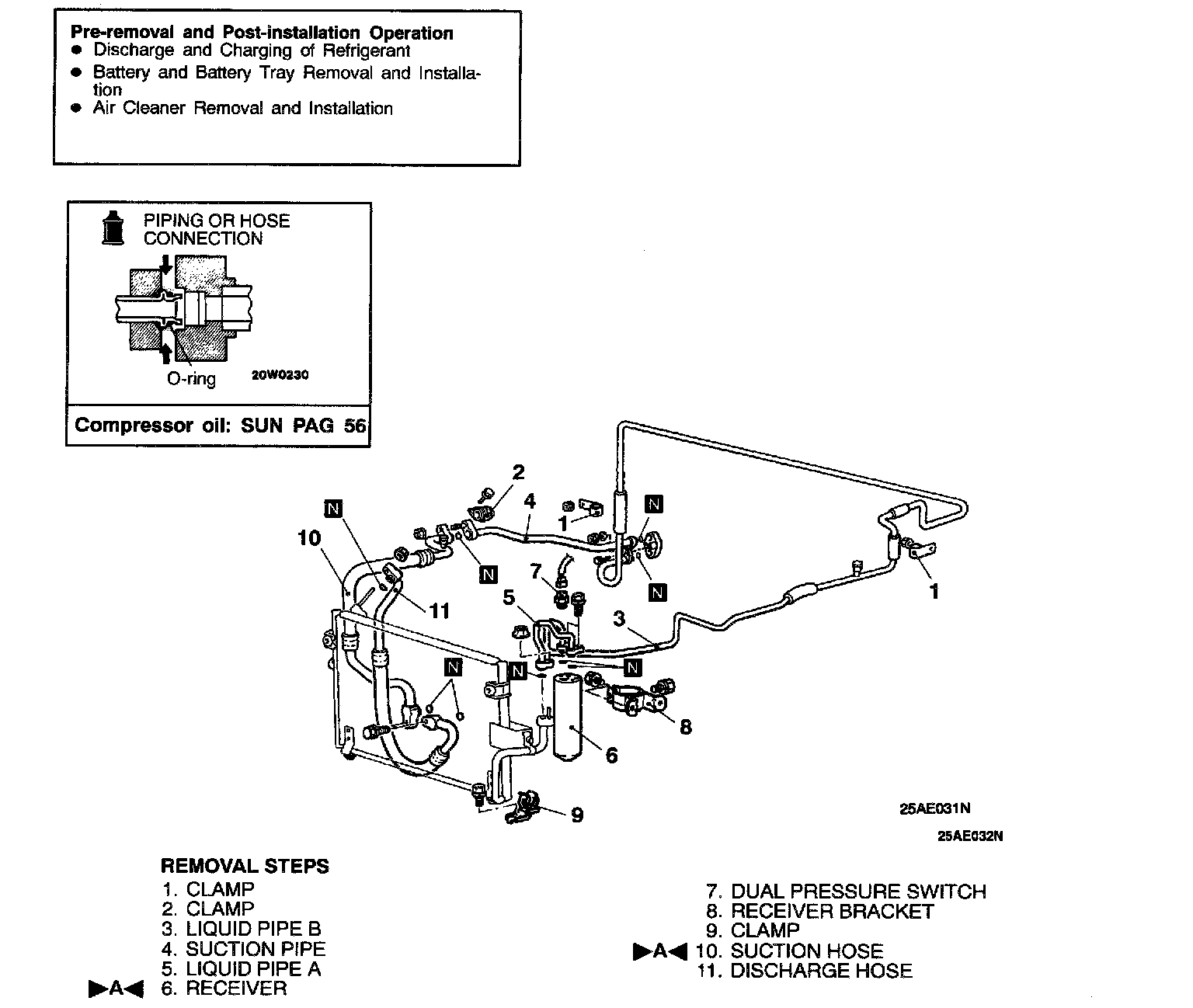

REFRIGERANT LINE




REMOVAL AND INSTALLATION

INSTALLATION SERVICE POINT

>A< SUCTION HOSE, RECEIVER ASSEMBLY INSTALLATION
When replacing the suction hose, or the receiver assembly with new ones, refill them with a specified amount of compressor oil, and then install each of them.

Compressor oil: SUN PAG 56
Quantity:
Suction hose: 10 cu.cm (0.3 fl.oz.)
Receiver: 10 cu.cm (0.3 fl.oz.)
