Condenser Fan Motor Relay: Testing and Inspection

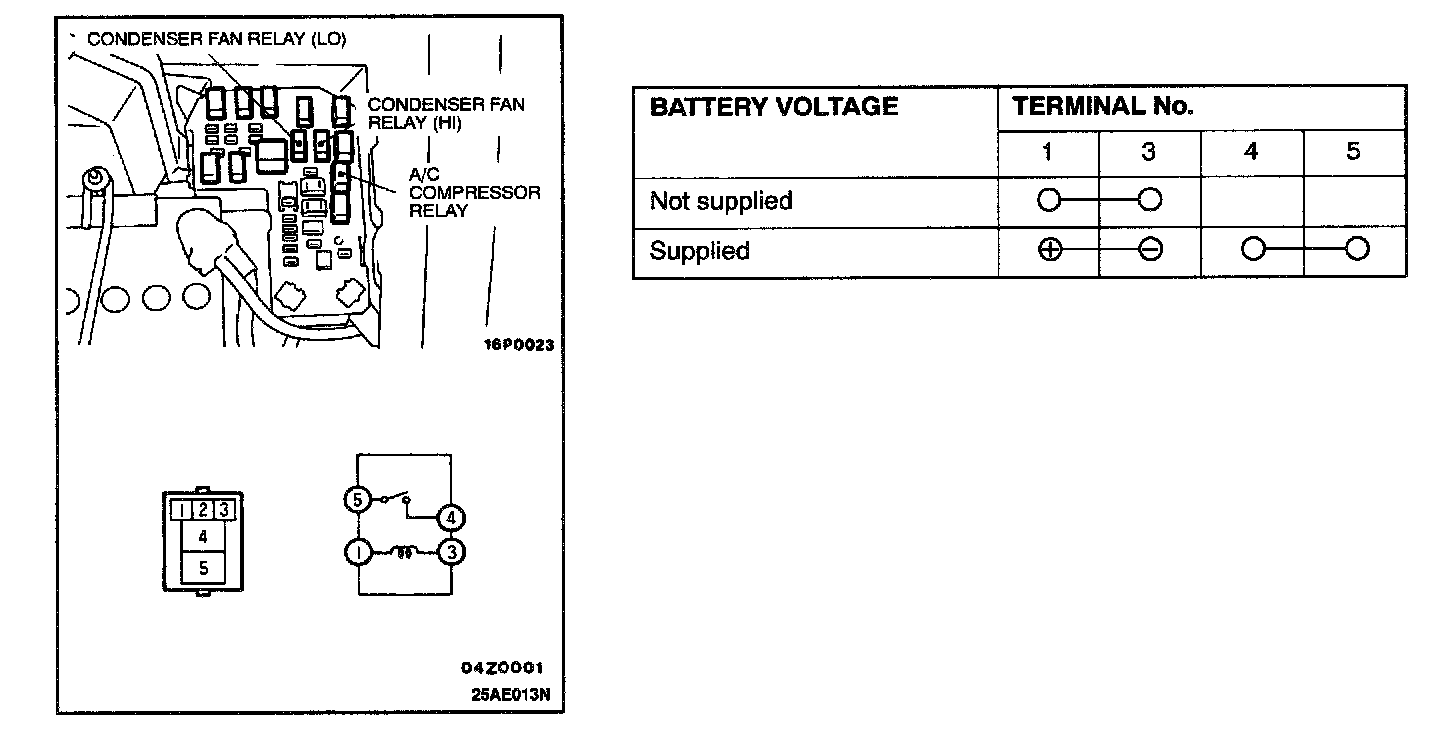

A/C Compressor Clutch Relay, Condenser Fan Relay (LO) And (HI) Continuity Check:
