Timing Belt Tensioner: Testing and Inspection
INSPECTIONAuto Tensioner

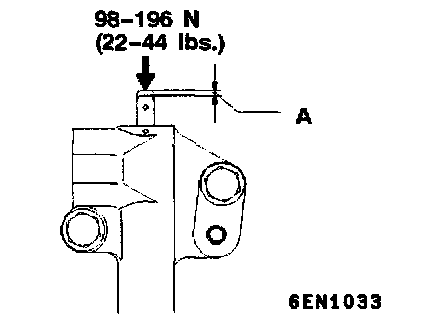

1. Hold the auto tensioner by hand and measure contraction (A) when pressing the tip of the rod on a steel (cylinder block; etc.) with a force of 98 - 196 N (22 - 44 lbs.).
Standard value (A): 1 mm (0.04 inch) or less
2. If not within the standard value, replace the auto tensioner.
