Cylinder Head Assembly: Service and Repair

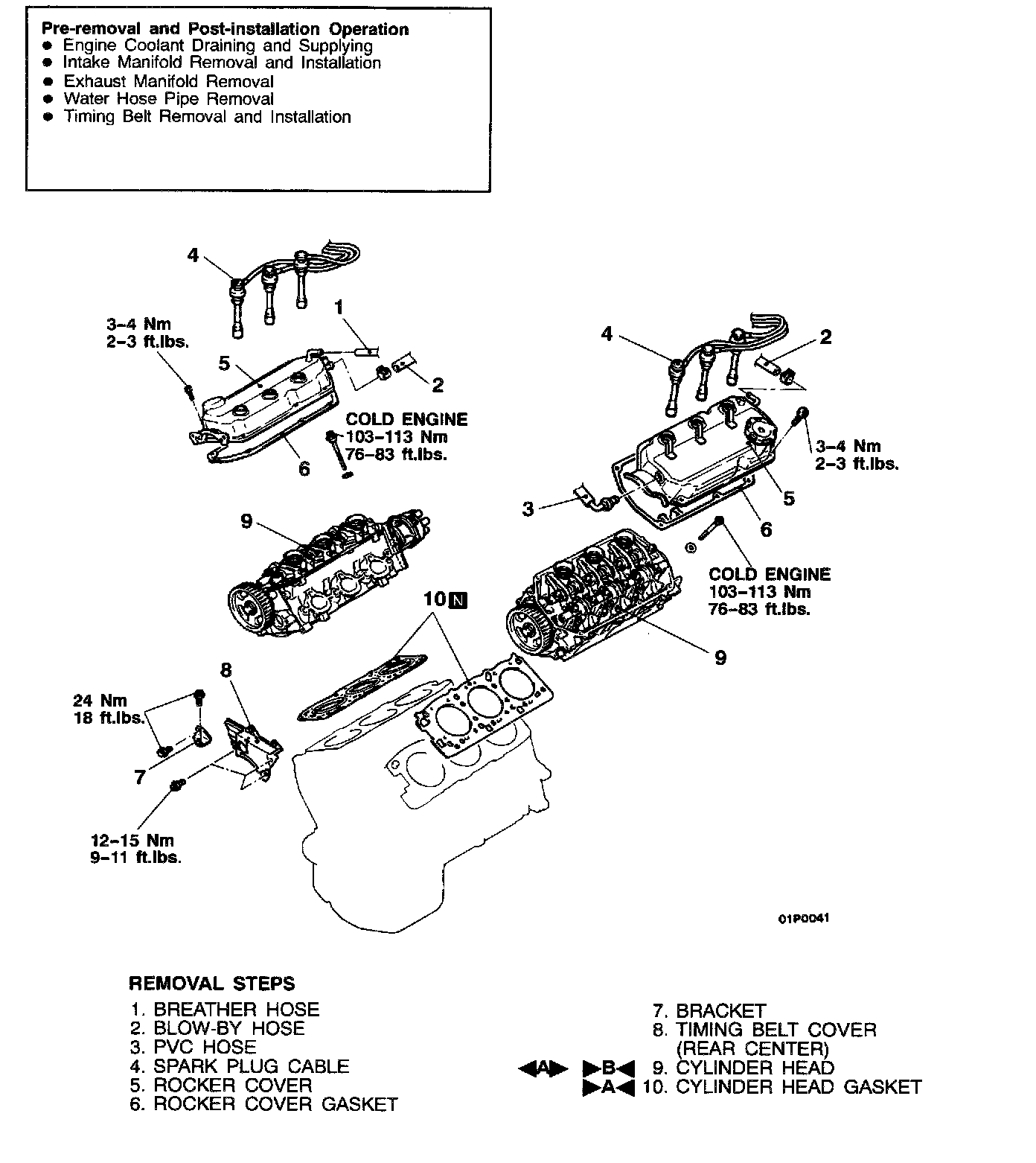

REMOVAL AND INSTALLATION

Removal Service Point
[A] Cylinder Head Assembly Removal

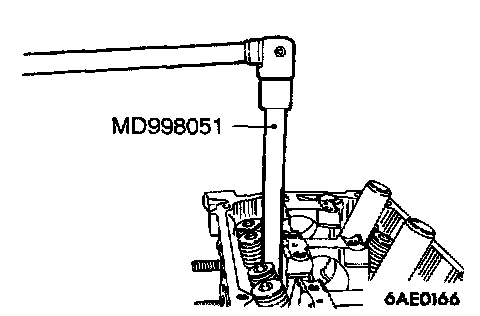

Using the special tool, after loosening the bolts (in 2 or 3 cycles), remove the cylinder head assembly.

Installation Service Points
]A[ Cylinder Head Gasket Installation
1. Degrease the mounting surface of the cylinder head gasket.

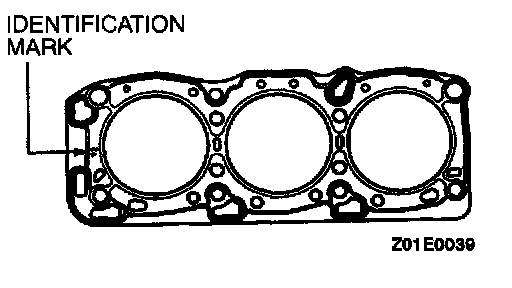

2. Lay the cylinder head gasket on cylinder block with the identification mark at front top.

]B[ Cylinder Head Assembly Installation





Using the special tool, tighten the bolts in the order shown in two or three steps.

CAUTION: Attach the head bolt washer in the direction shown in the figure.
