Automatic Transmission/Transaxle
Automatic Transmission/Transaxle
HYDRAULIC CIRCUIT

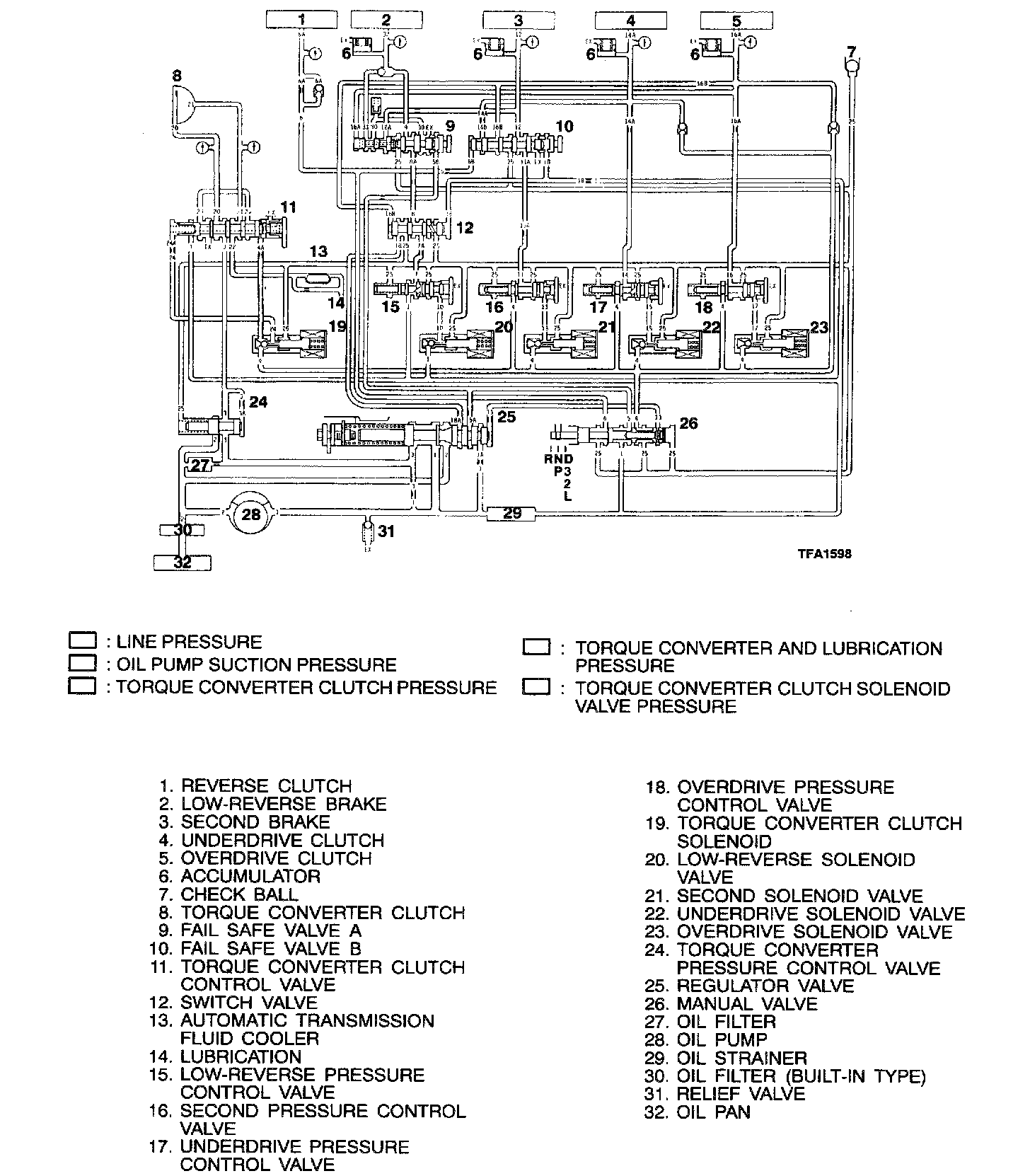

Park And Neutral:

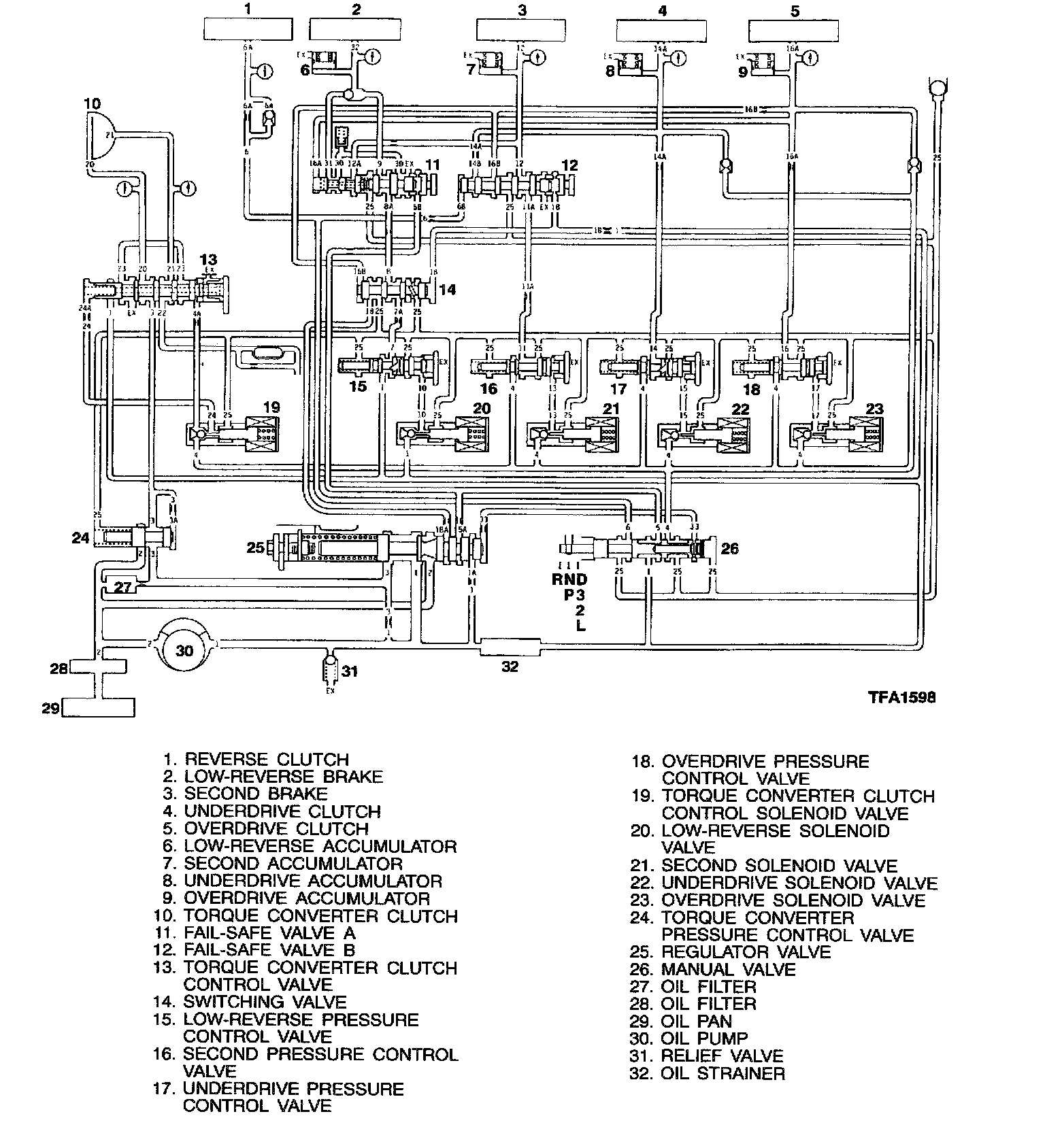

1st Speed Range:
2nd Speed:
3rd Speed:
4th Speed:
Reverse:
HYDRAULIC PRESSURE CIRCUIT DIAGRAMS
