Home >> Mitsubishi >> 2000 >> Diamante ES Sedan V6-3.5L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Map Light

Map Light

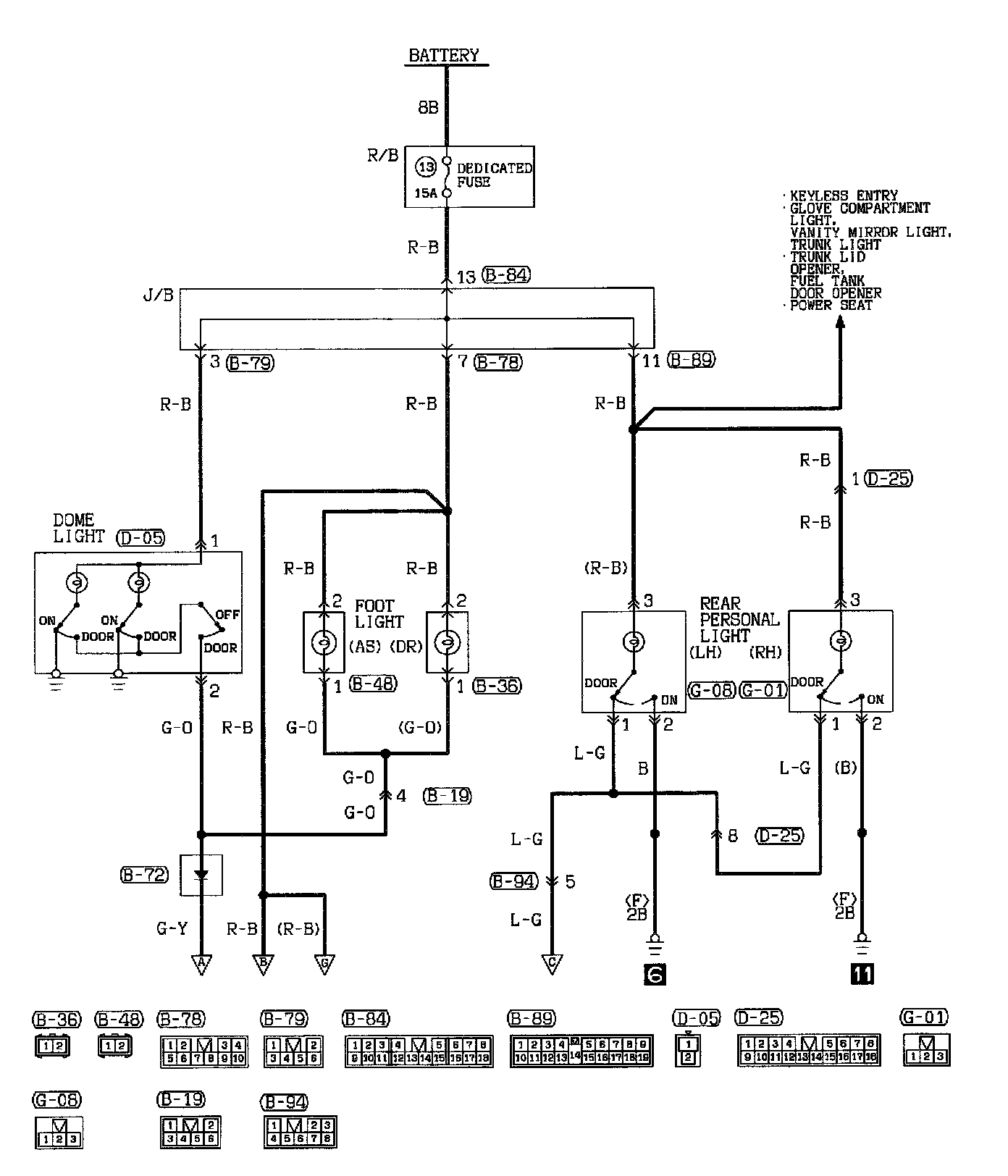

Part 1 Of 3:

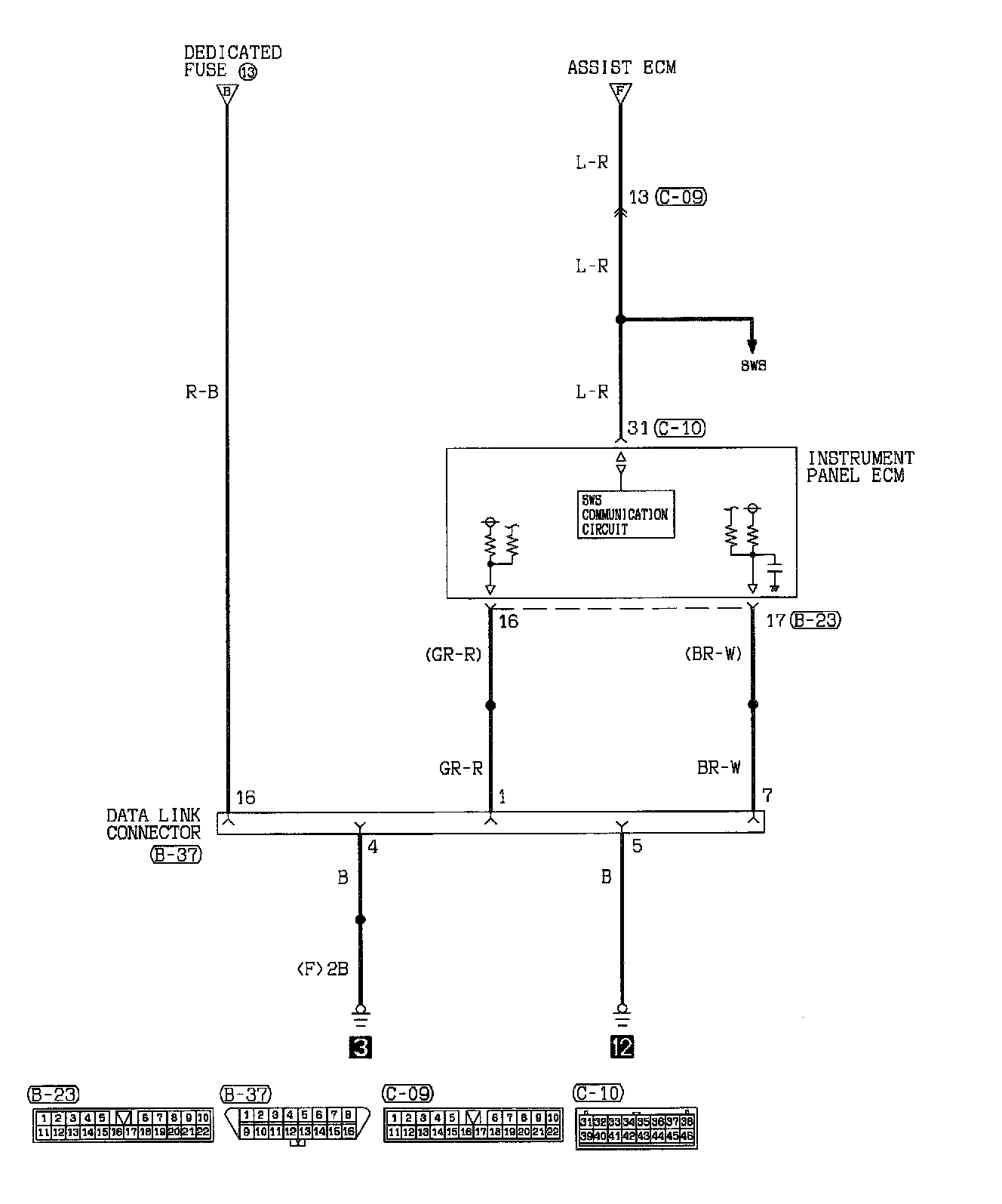

Part 2 Of 3:



Part 3 Of 3:
