Parking Brake Cable: Service and Repair

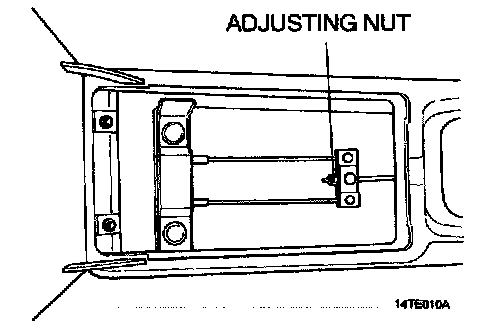

1. Loosen the park brake cable adjusting nut to the end of the cable rod as shown in the illustration.

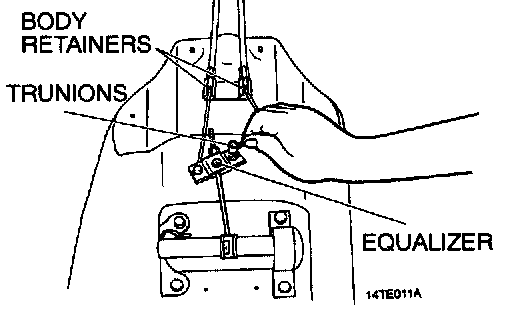

2. Unclip the park brake cable bunions from the equalizer and remove the cable from the body retainers.

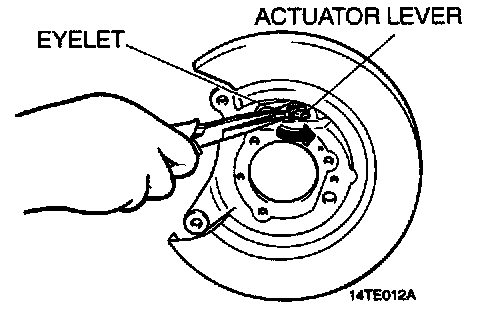

Park Brake Cable Actuator Lever Eyelet

1. Push the cable towards the rear of the vehicle to release the park brake cable eyelet from the actuator lever.
