Removal and Installation

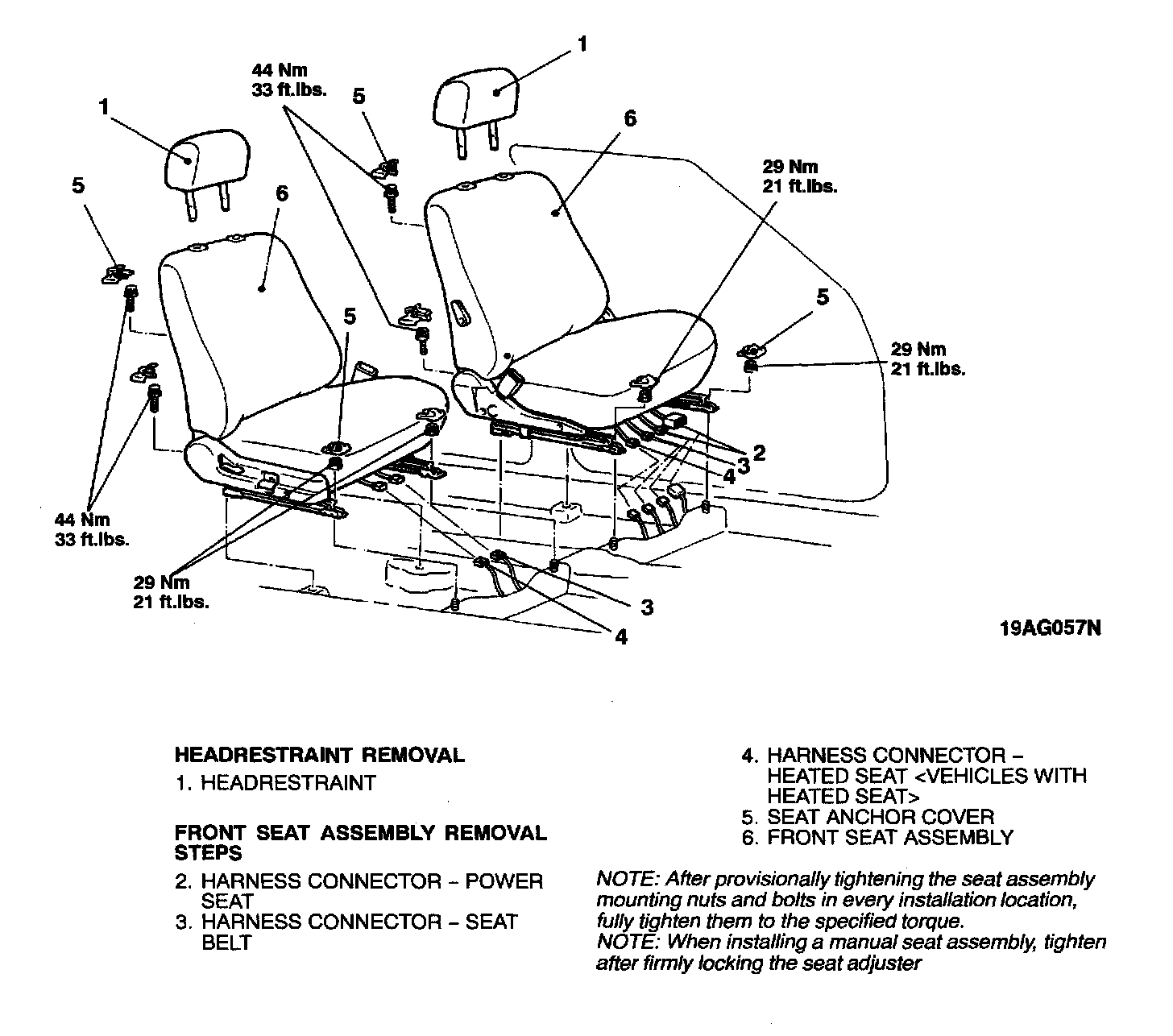

REMOVAL AND INSTALLATION




If removal of the seat mounting nut and bolt is impossible when there is a malfunction in the slide motor or the slide switch and the seat cannot slide, remove and install the front seat assembly by the following procedure.

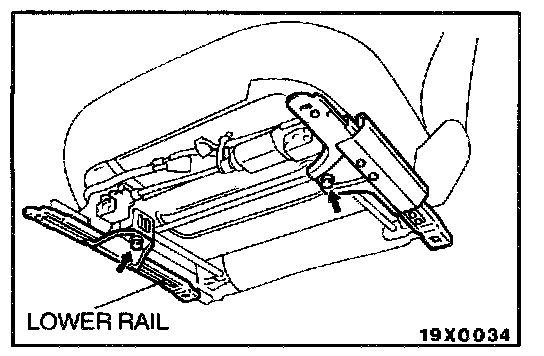

1. Remove the bolts below the seat cushion as shown in the illustration.

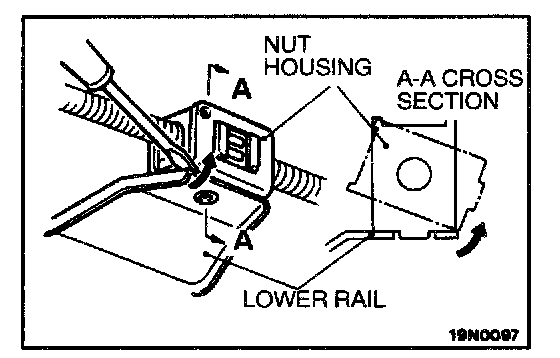

2. Insert a flat-tipped screwdriver in between the lower rail and the nut housing, and detach the nut housing from the lower rail hole and turn it.
3. Slide the seat, and remove the seat mounting nuts and bolts.

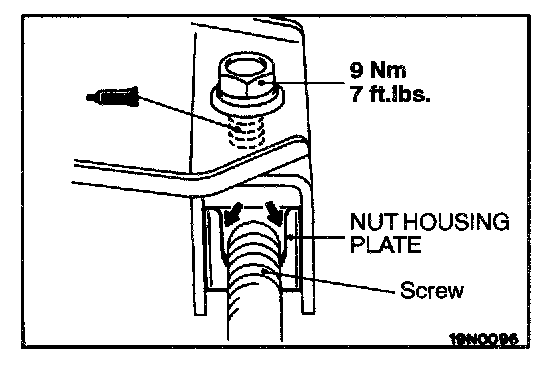

4. When reusing the power height adjuster assembly, apply specified adhesive to the mounting bolt, and tighten the specified torque.

Specified adhesive: 3M Stud Locking Part No.4170 or equivalent

CAUTION: Match to the left and right nut housing positions.

CAUTION: Install so that the screw and nut housing plate do not cause interference.
