Home >> Mitsubishi >> 2000 >> Diamante ES Sedan V6-3.5L SOHC >> Repair and Diagnosis >> Body and Frame >> Seats >> Service and Repair >> Front Seat >> Disassembly and Reassembly >> Power Seat

Power Seat

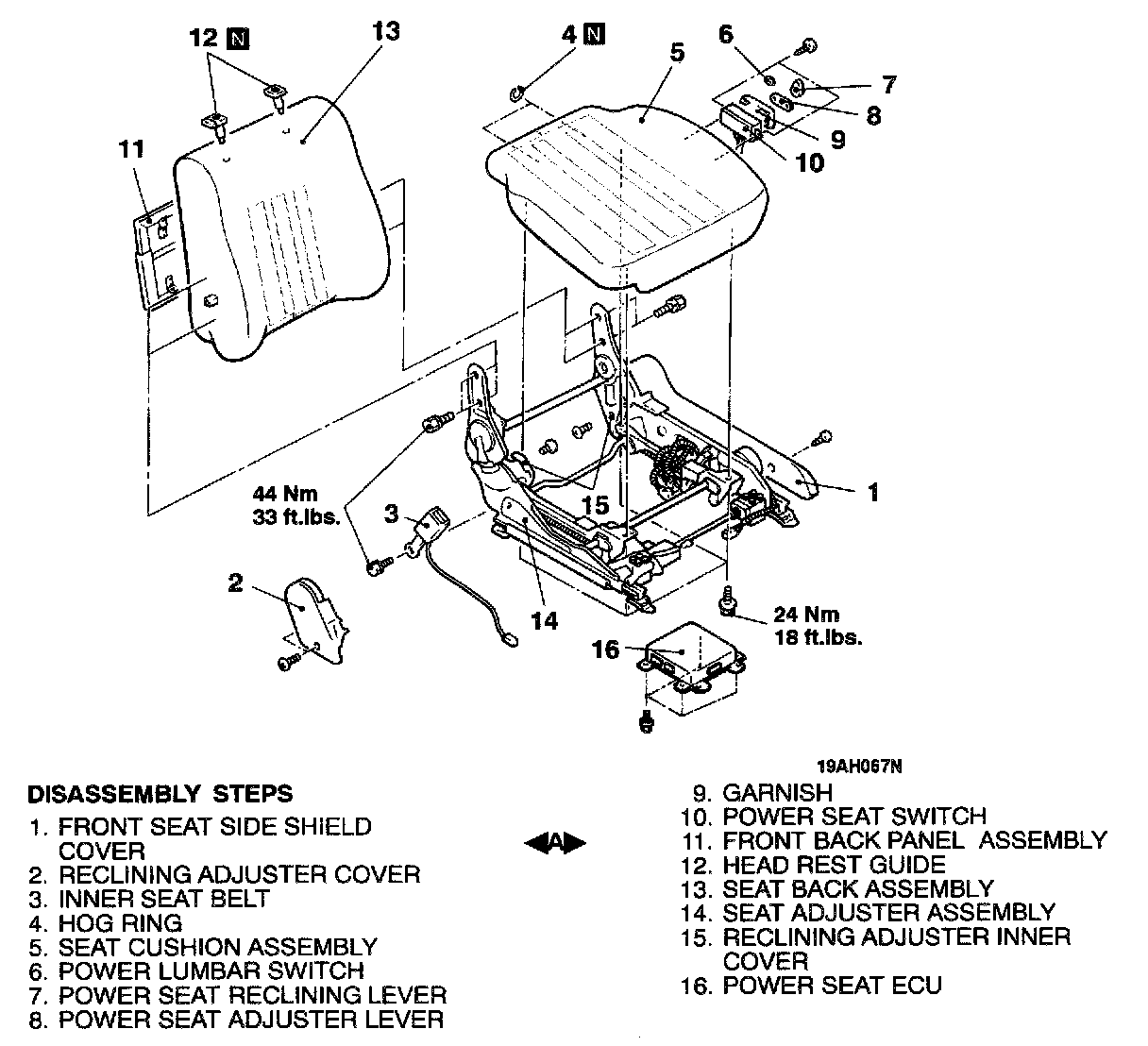

DISASSEMBLY SERVICE POINT

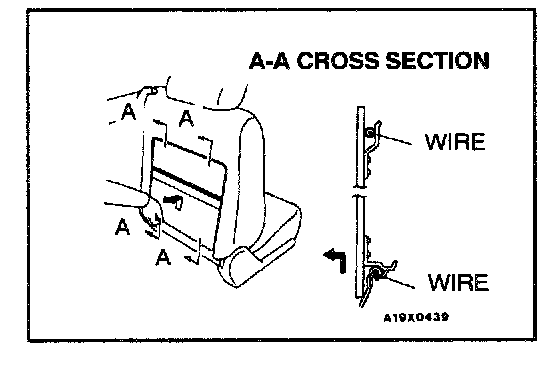

FRONT-BACK PANEL ASSEMBLY REMOVAL
Lift the front-back panel assembly upwards, and pull the lower portion towards you to remove.
