Seatback Heater Check
Seatback Heater Check

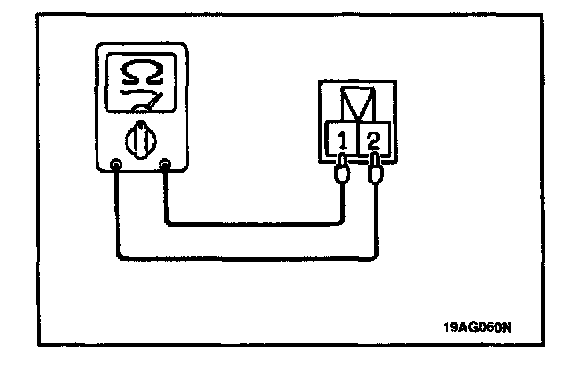

Measure the resistance between the terminals.
Standard value:
Approximately
5.8 Ohms
