Anti-Lock Braking System (ABS)

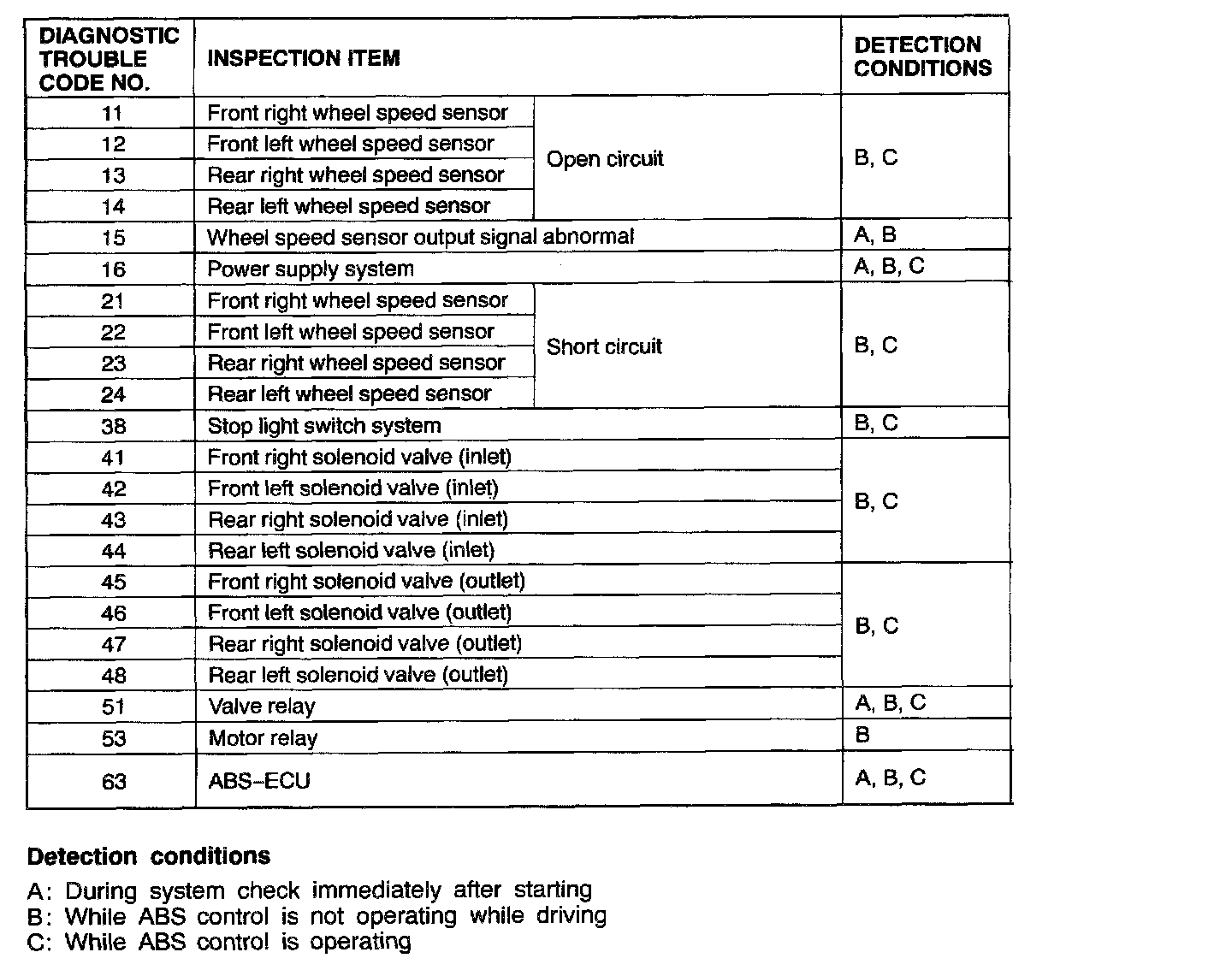

INSPECTION CHART FOR DIAGNOSTIC TROUBLE CODES
Inspect according to the inspection chart that is appropriate for the diagnostic trouble code.
Detection conditions
A: During system check immediately after starting
B: While ABS control is not operating while driving
C: While ABS control is operating
