Wiper and Washer Systems: Service and Repair

NOTE: Refer to TSB 03-51-005 for torque revisions.

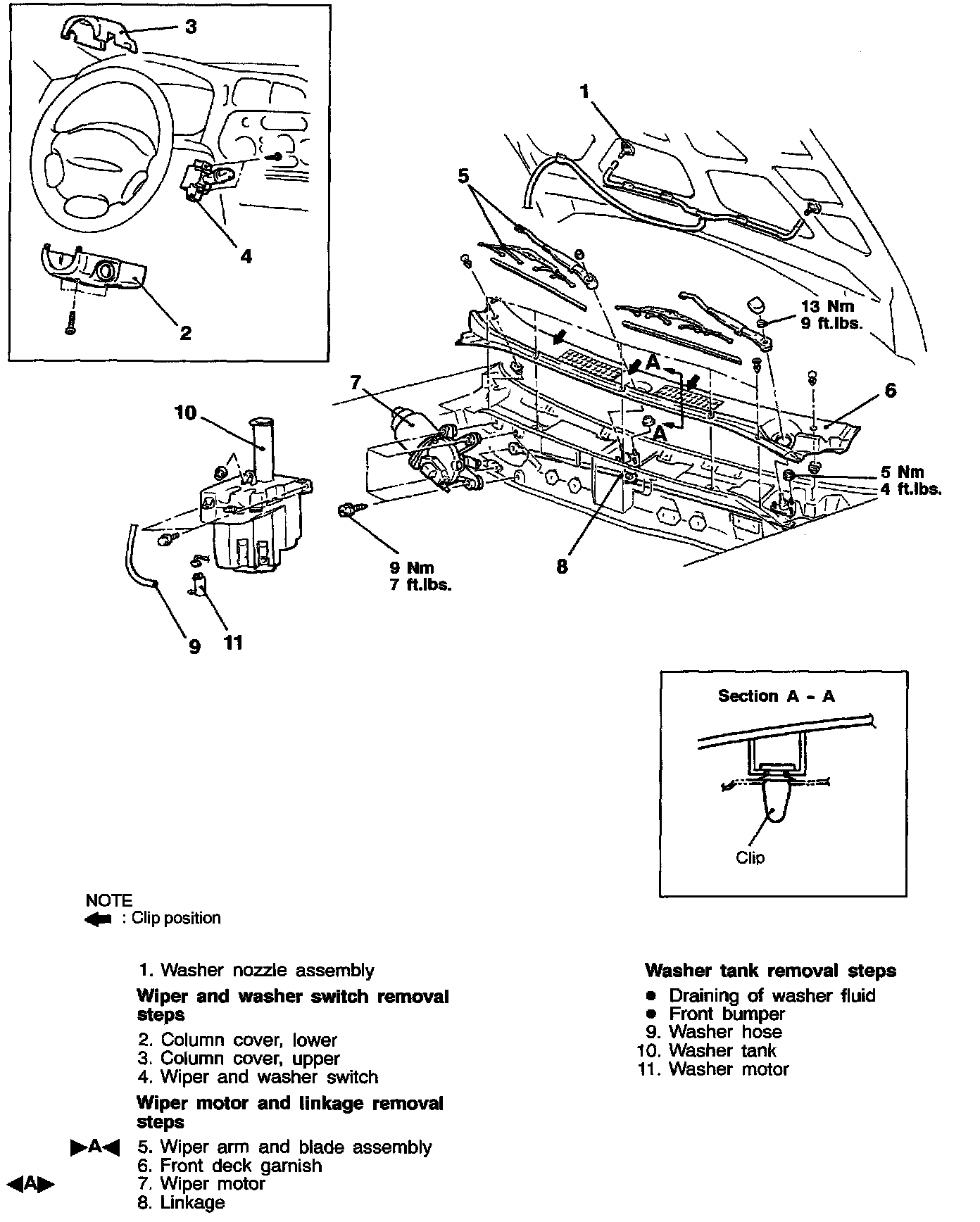

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT




WIPER MOTOR REMOVAL
Loosen the wiper motor assembly mounting bolts, and then remove the wiper motor assembly. Disconnect the linkage and the motor assembly, and then remove the linkage.

CAUTION: Because the installation angle of the crank arm and the motor has been set, do not remove them unless it is necessary to do so. If they must be removed, remove them only after marking their mounting positions.

INSTALLATION SERVICE POINT




WIPER ARM AND BLADE ASSEMBLY INSTALLATION
Install the wiper blade in the specified position (standard value) as shown in the illustration.

Standard value (A): 25 ± 5 mm
