Front Door Window Regulator: Service and Repair

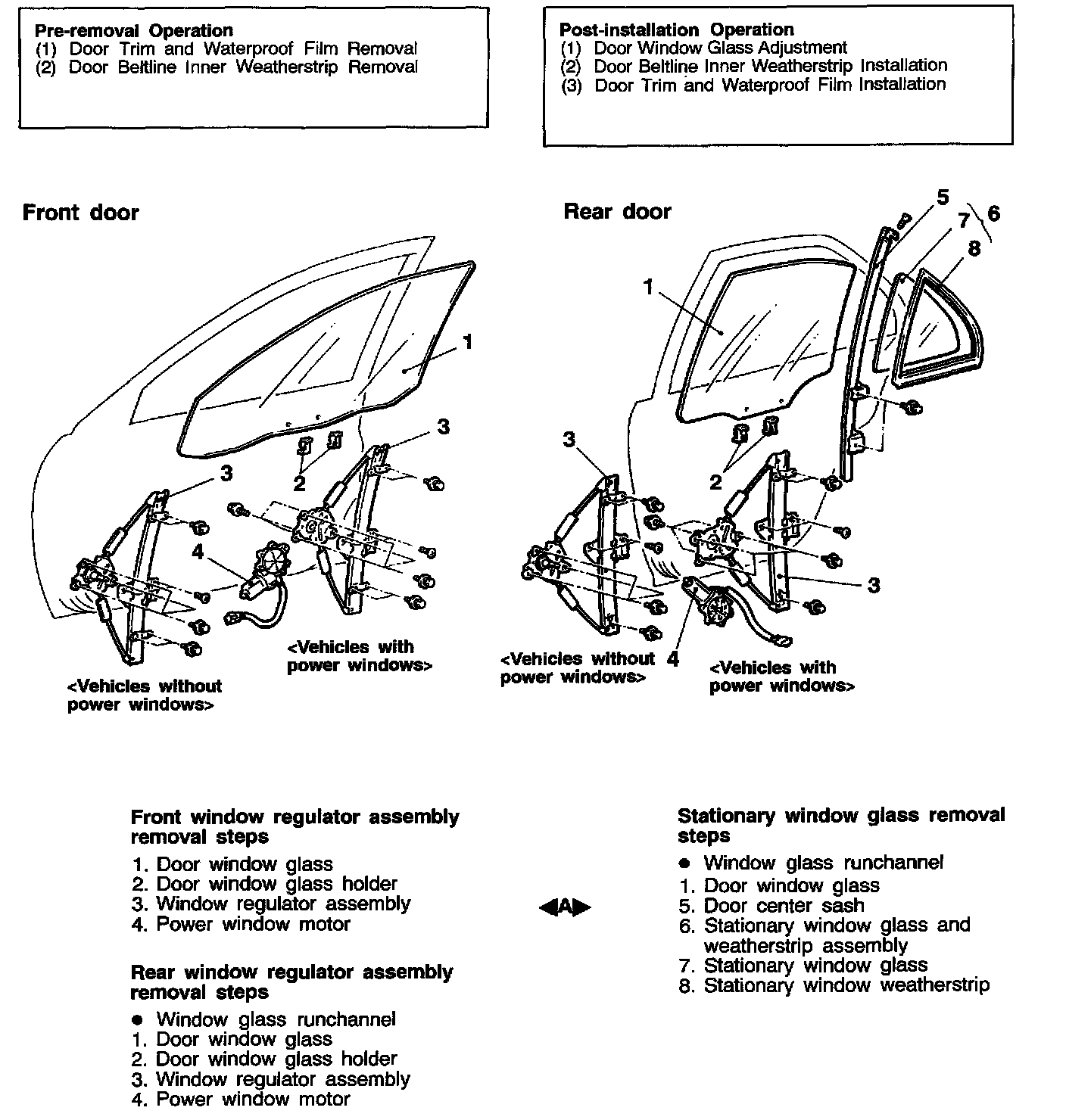

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT




[A] DOOR CENTER SASH REMOVAL
1. Remove the door outer opening weatherstrip from the door center sash only.
2. Remove the door center sash mounting screws, and then remove the door center sash from the door pane!.
