Power Window Switch: Testing and Inspection

POWER WINDOW SWITCH CONTINUITY CHECK

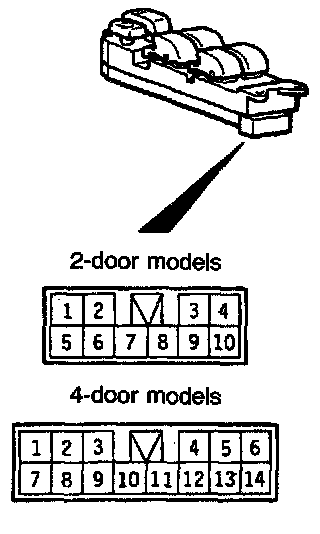

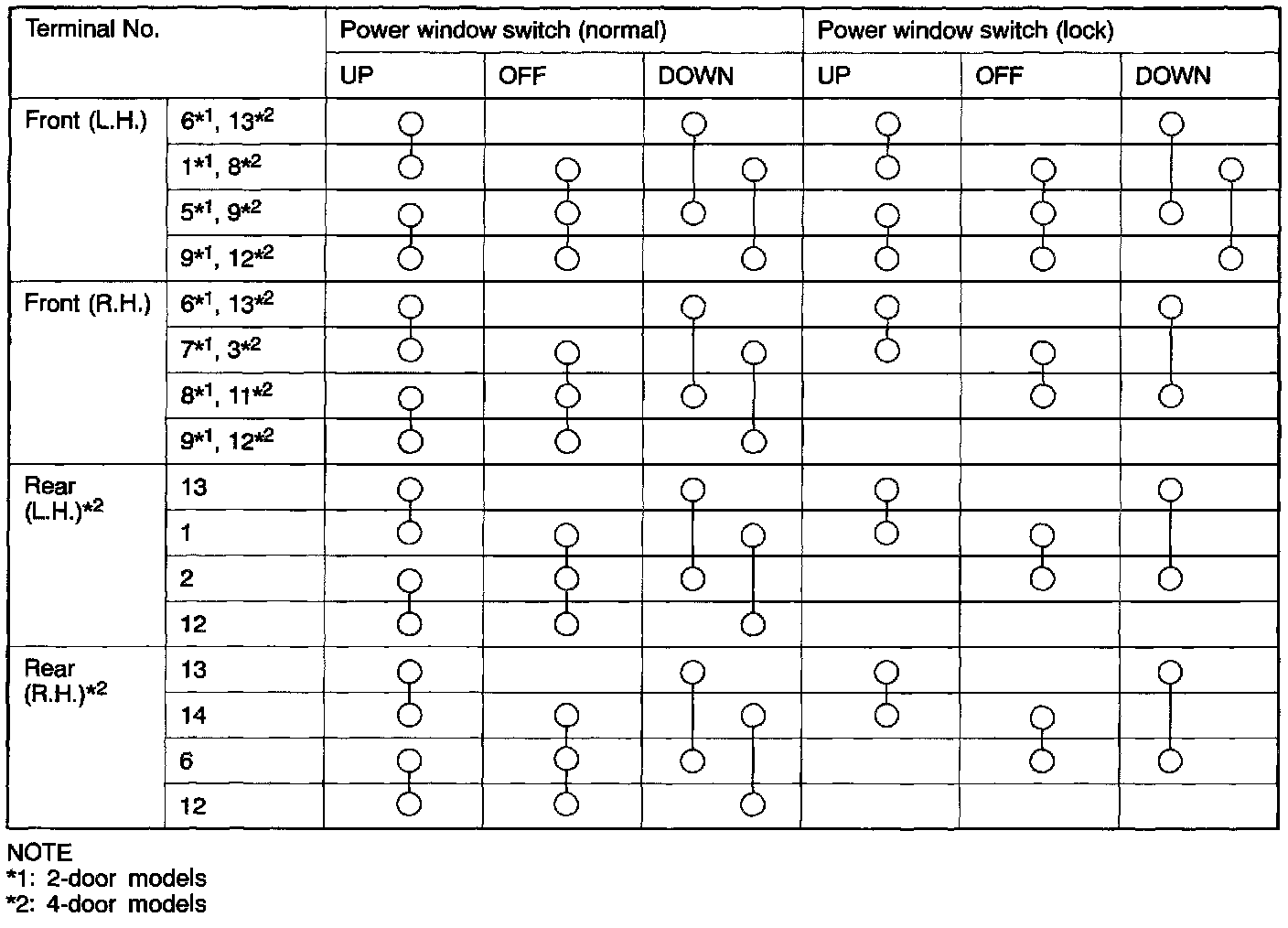

Main switch

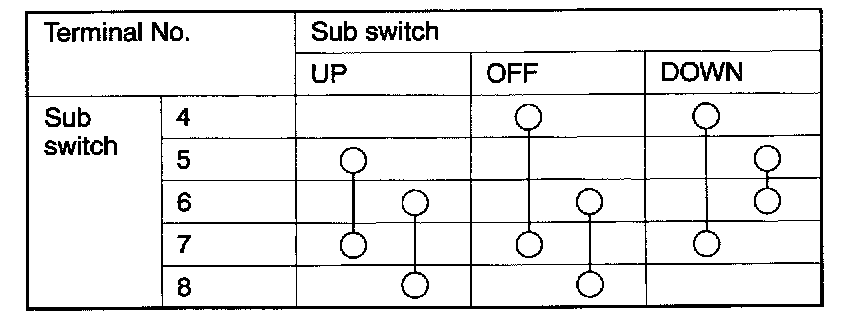

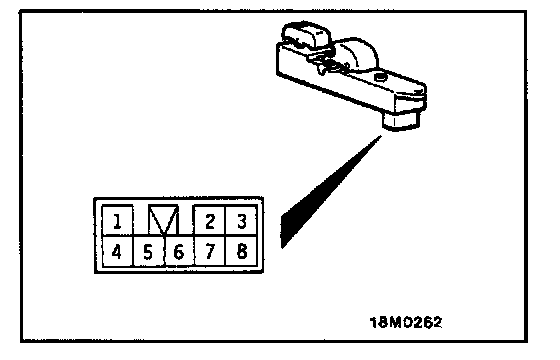

Sub switch
