Connecting Rod Bearing Clearance

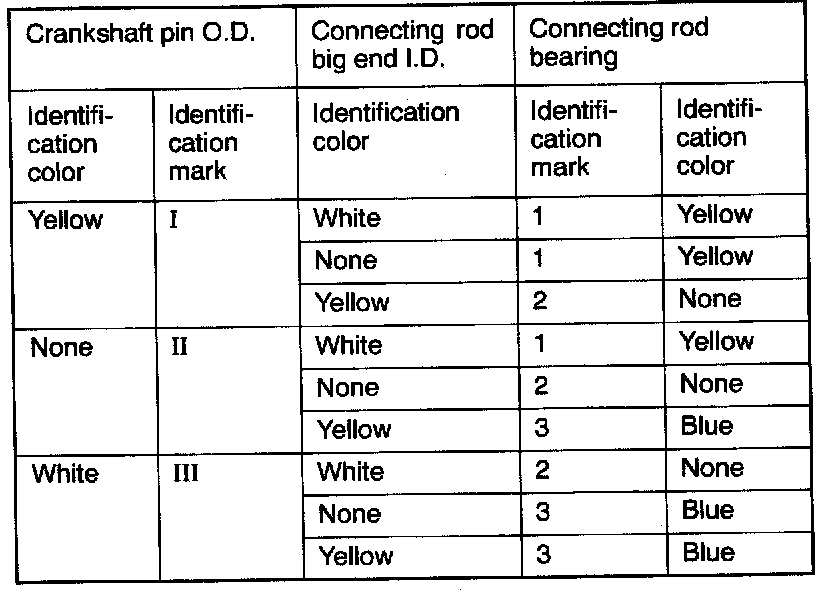

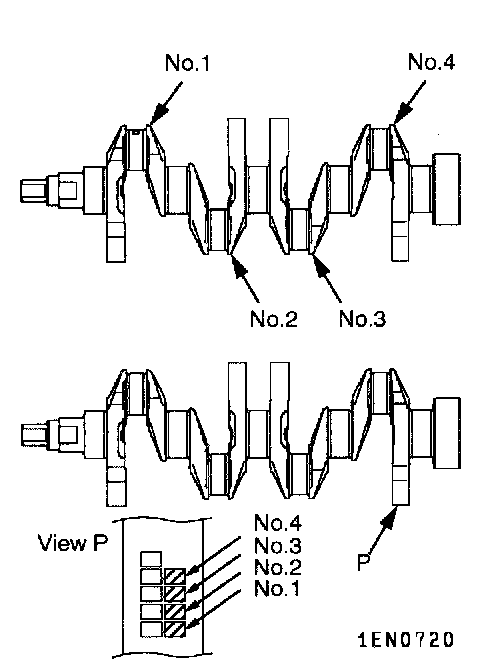

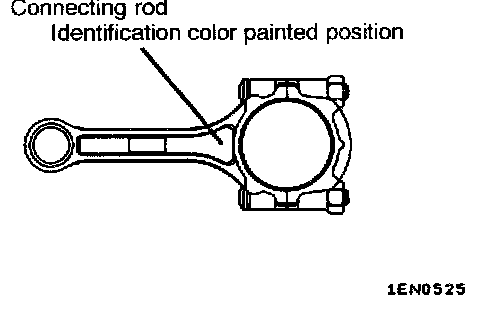

Connecting Rod bearing Identification


















Connecting Rod Big End Side Clearance
Standard value: 0.10 - 0.25 mm (0.0039 - 0.0098 inch)
Limit: 0.4 mm (.016 inch)
