Component Inspection

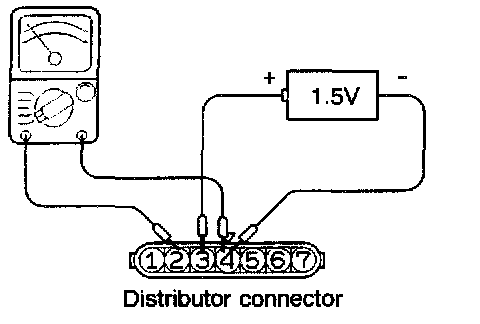

IGNITION POWER TRANSISTOR CONTINUITY CHECK

NOTE:
1. An analog-type ohmmeter should be used.

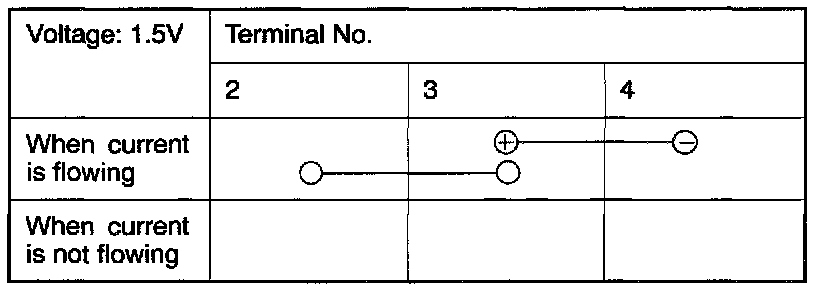

2. Connect the negative (-) probe of the ohmmeter to terminal 2.

CAUTION: This test must be performed quickly (in less than 10 seconds) to prevent coil from burning and ignition power transistor from breaking.
Replace the ignition power transistor if there is a malfunction.
