Leak Detection Solenoid: Testing and Inspection

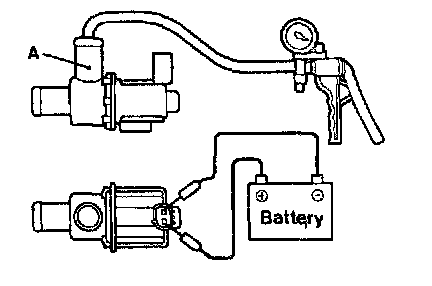

1. Connect a hand vacuum pump to nipple (A) of the solenoid.

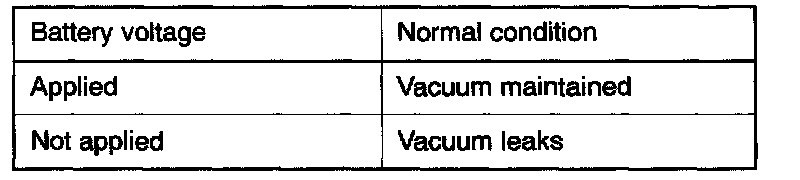

2. Check airtightness by applying a vacuum with voltage applied directly from the battery to the evaporative emission ventilation solenoid and without applying voltage.

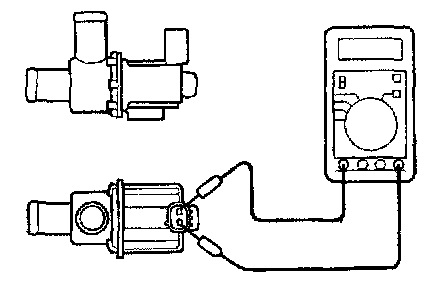

3. Measure the resistance between the terminals of the solenoid.

Standard value: 17 - 21 ohms [at 20° C (68° F)]
