OBD-II Drive Cycle Pattern Lists
OTHER MONITORS- Misfire (P0300, P0301, P0302, P0303, P0304)
- Evaporative emission control system (P0440)
- Idle air control system (P0505)
- Excessive time to enter closed loop fuel control (P0125)
- Throttle position sensor (P0120)
- Manifold absolute pressure circuit malfunction (P0105)
- Intake air temperature sensor (P0110)
- Serial communication link (P1600)
- Crankshaft position sensor (P0335)
- Camshaft position sensor (P0340)
- Engine coolant temperature sensor (P0115)
- Closed throttle position switch (P0510)
- Generator FR terminal circuit (P1500)
- O2 sensor circuit (P0130, P0136)
- O2 sensor heater circuit (P0135, P0141)
- EGR solenoid (P0403)
- Evaporative emission purge solenoid (P0443)
- Injector circuit (P0201, P0202, P0203, P0204)
- Evaporative emission ventilation solenoid (P0446)
Test Requirements/procedure
1. All of the following requirements should be met when carrying out a drive test.
1. Engine coolant temperature: 80 °C (176 °F) or more (Engine fully warmed up)
2. Atmospheric temperature: 5 °C (41 °F) or more
3. Condition of A/T:
- Selector lever position: D range
2. One trip monitor will be completed by driving according to the steps below (from start to switch off). It will take approx. 10 minutes.
*1 : After warming up, turn off the ignition switch.
*2 : Start the engine, accelerate to 56 - 64 kph (35 - 40 mph), continue driving for 300 seconds or more at that speed range and stop. Moreover, brake or throttle may be applied for this period.
*3 : After stopping the vehicle, continue idling for 300 seconds or more, and then turn off the ignition switch. Moreover; the vehicle should be set to the following conditions for idling.
- A/C switch: OFF
- Lights, electric cooling fan and all accessories: OFF
- Transaxle: Neutral (A/T for P range)
- Steering wheel: Straight-forward position

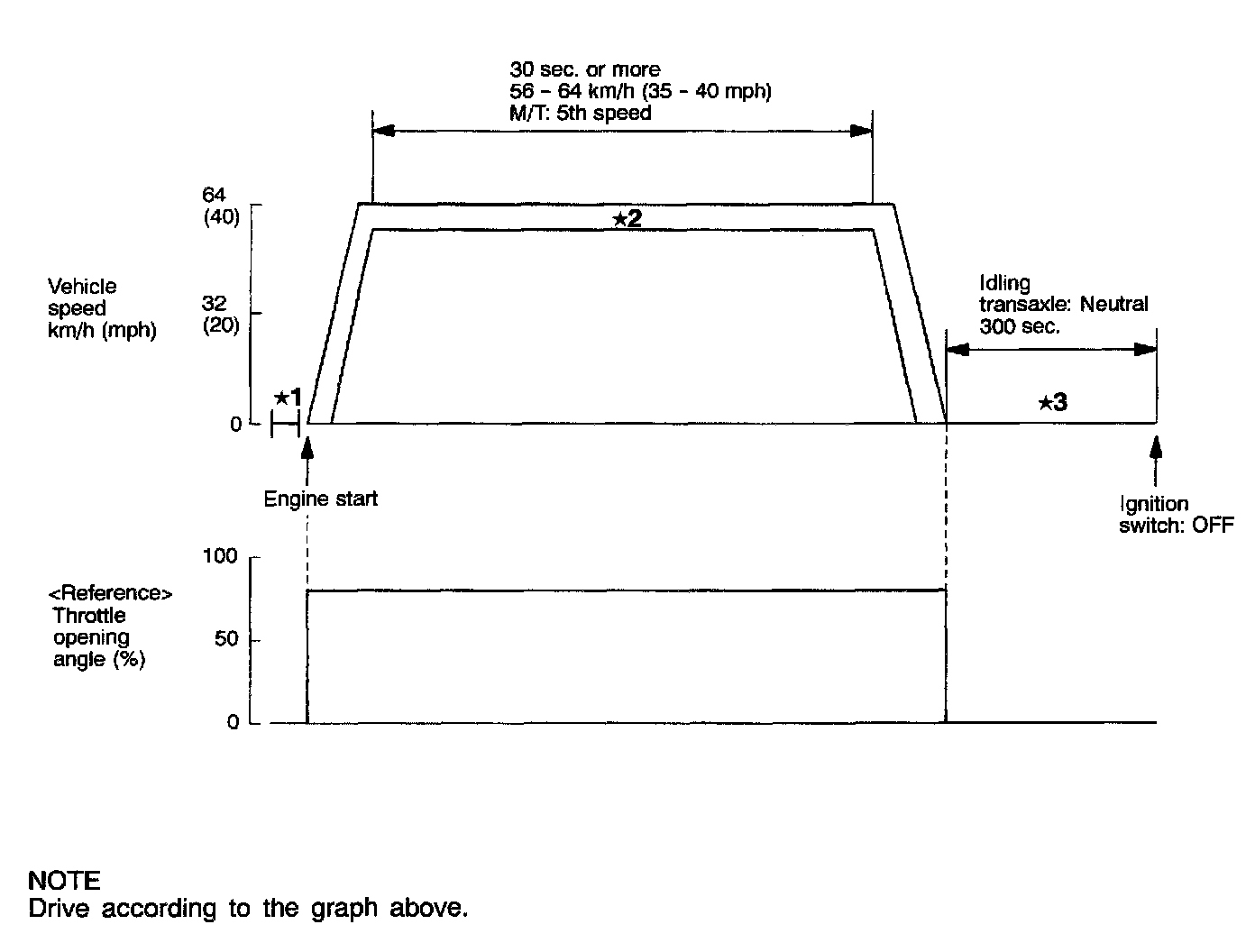

Drive Cycle Pattern
