Home >> Mitsubishi >> 1999 >> Mirage Sedan DE L4-1468cc 1.5L SOHC MFI >> Repair and Diagnosis >> Locations >> Splice Locations >> Engine Compartment

Engine Compartment

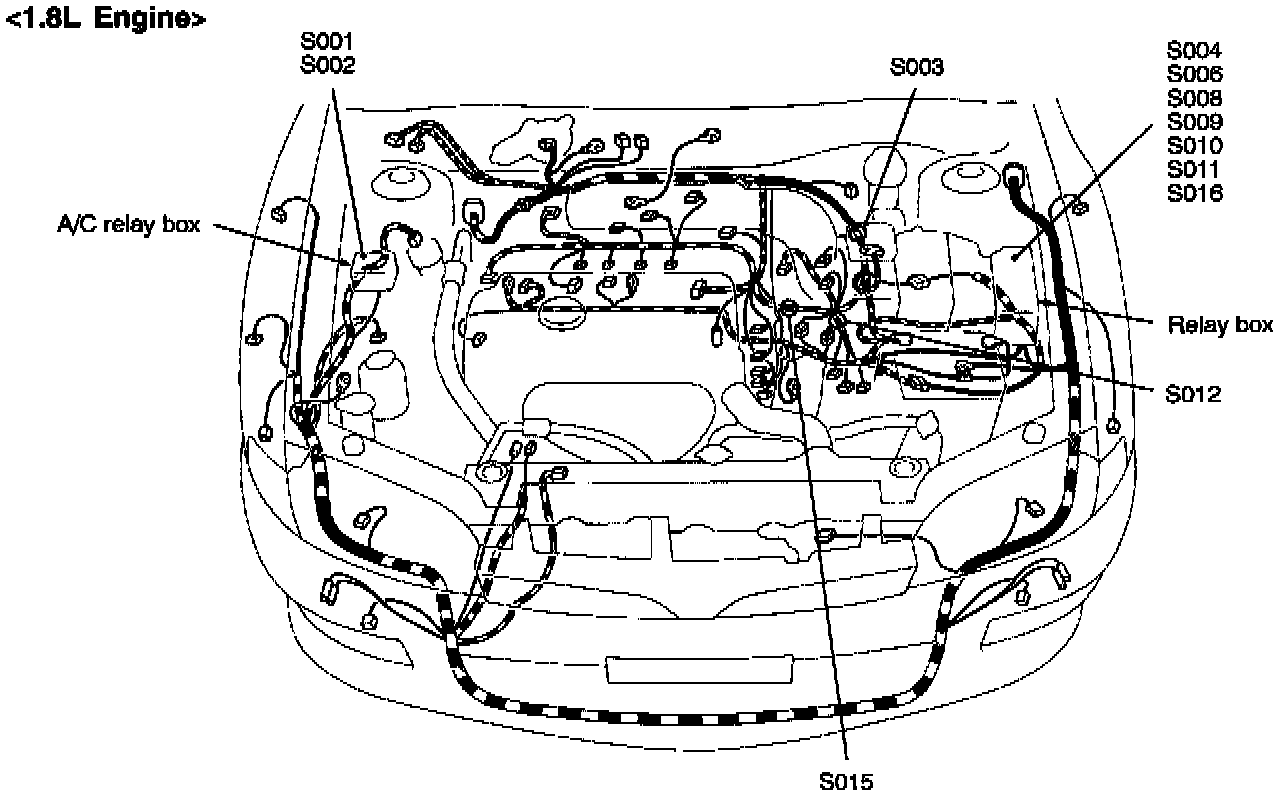

Engine Compartment - S001-004, S006, S008-014, S016:

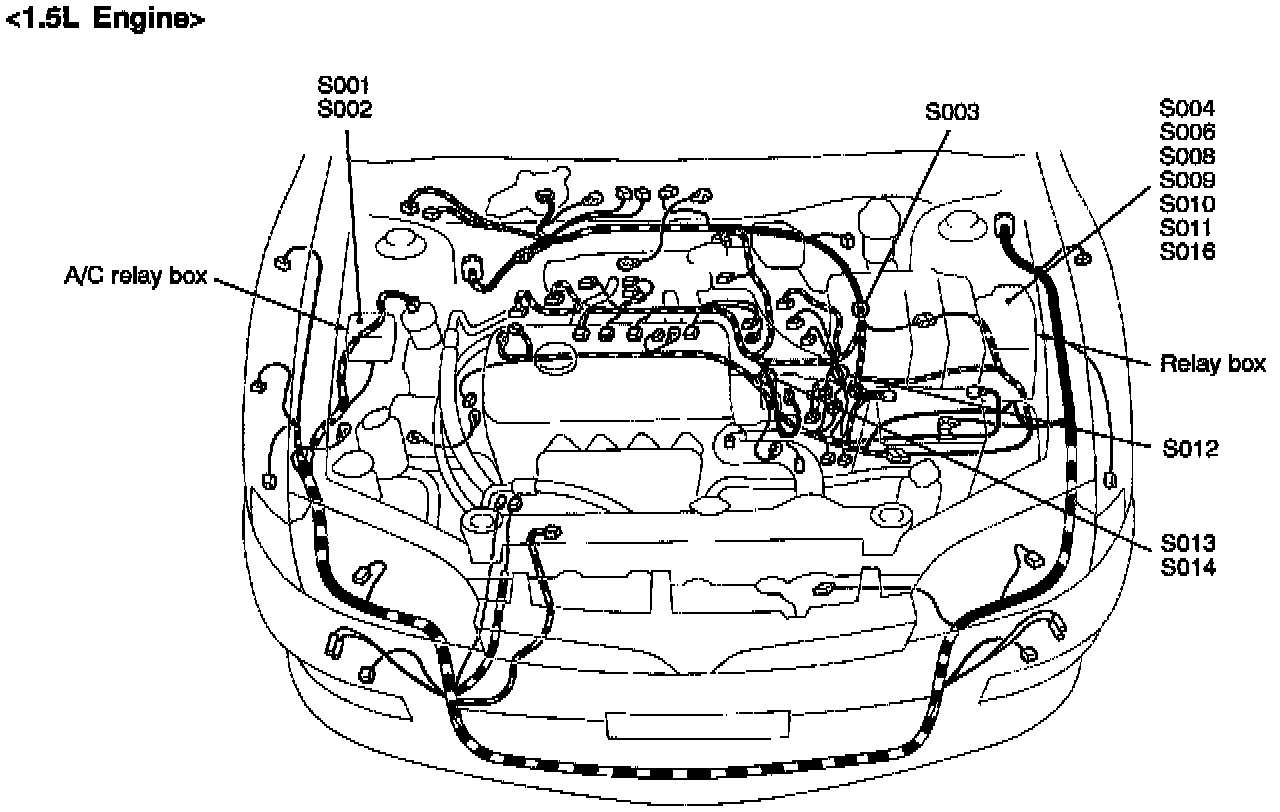

Engine Compartment - S001-004, S006, S008-012, S015-016:
