Evaporator Temperature Sensor / Switch: Service and Repair

Plug the disconnected hose and the evaporator nipple not to let foreign matter get into them.

CAUTION: Seal the hoses completely, otherwise the compression oil and receiver will absorb water vapor easily.

INSTALLATION SERVICE POINT

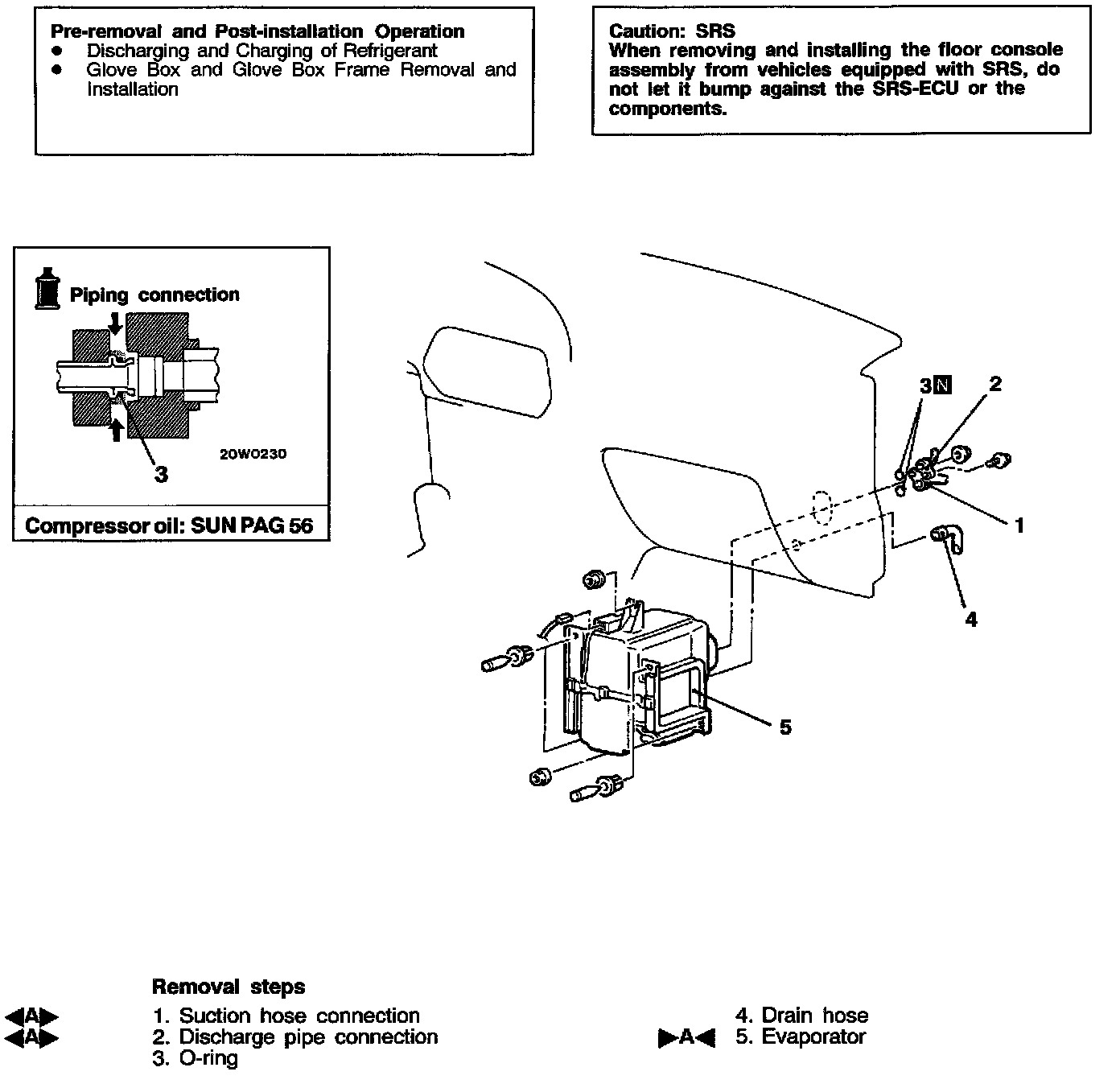

>A< EVAPORATOR INSTALLATION
When replacing the evaporator; refill it with a specified amount of compressor oil and install it (to the vehicle).

Compressor oil: SUN PAG 56
Quantity: 60 cc (2.0 fl.oz.)

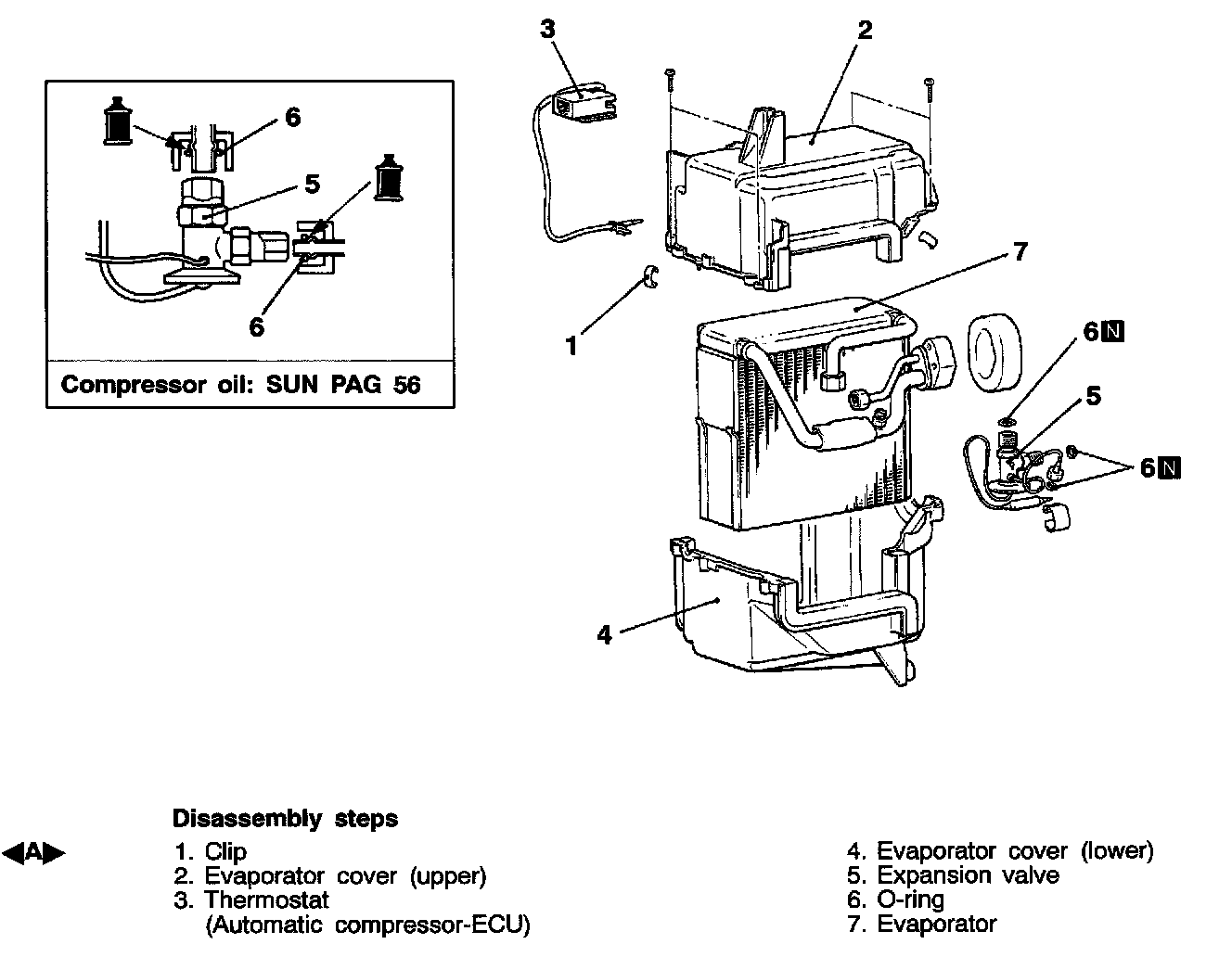

DISASSEMBLY AND REASSEMBLY

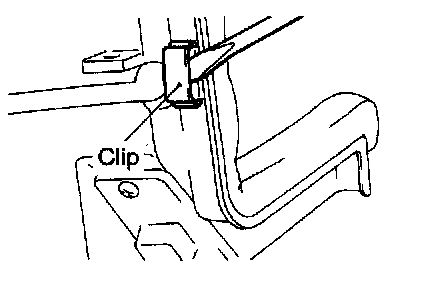

DISASSEMBLY SERVICE POINT
