Component Inspection

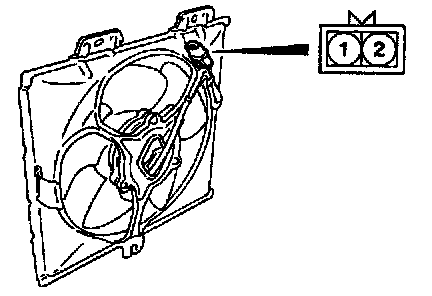

CONDENSER FAN MOTOR CHECK
Check to be sure that the condenser fan motor operates when battery voltage is applied to terminal 1 and terminal 2 is grounded.
