Multiple Junction Connector
Multiple Junction Connector

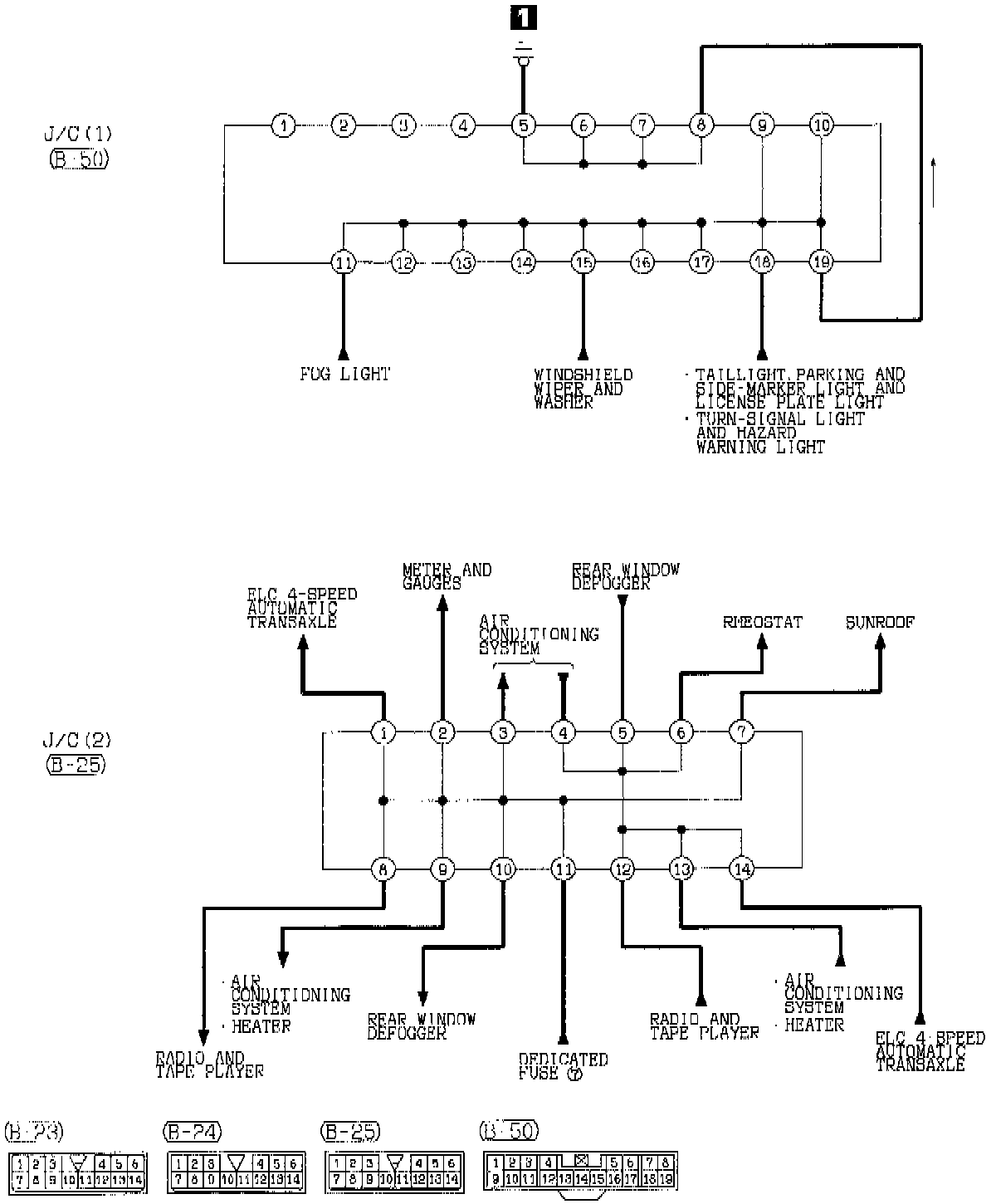

Junction Connector (J/C):
J/C 1 (B-50) & J/C 2 (B-25)

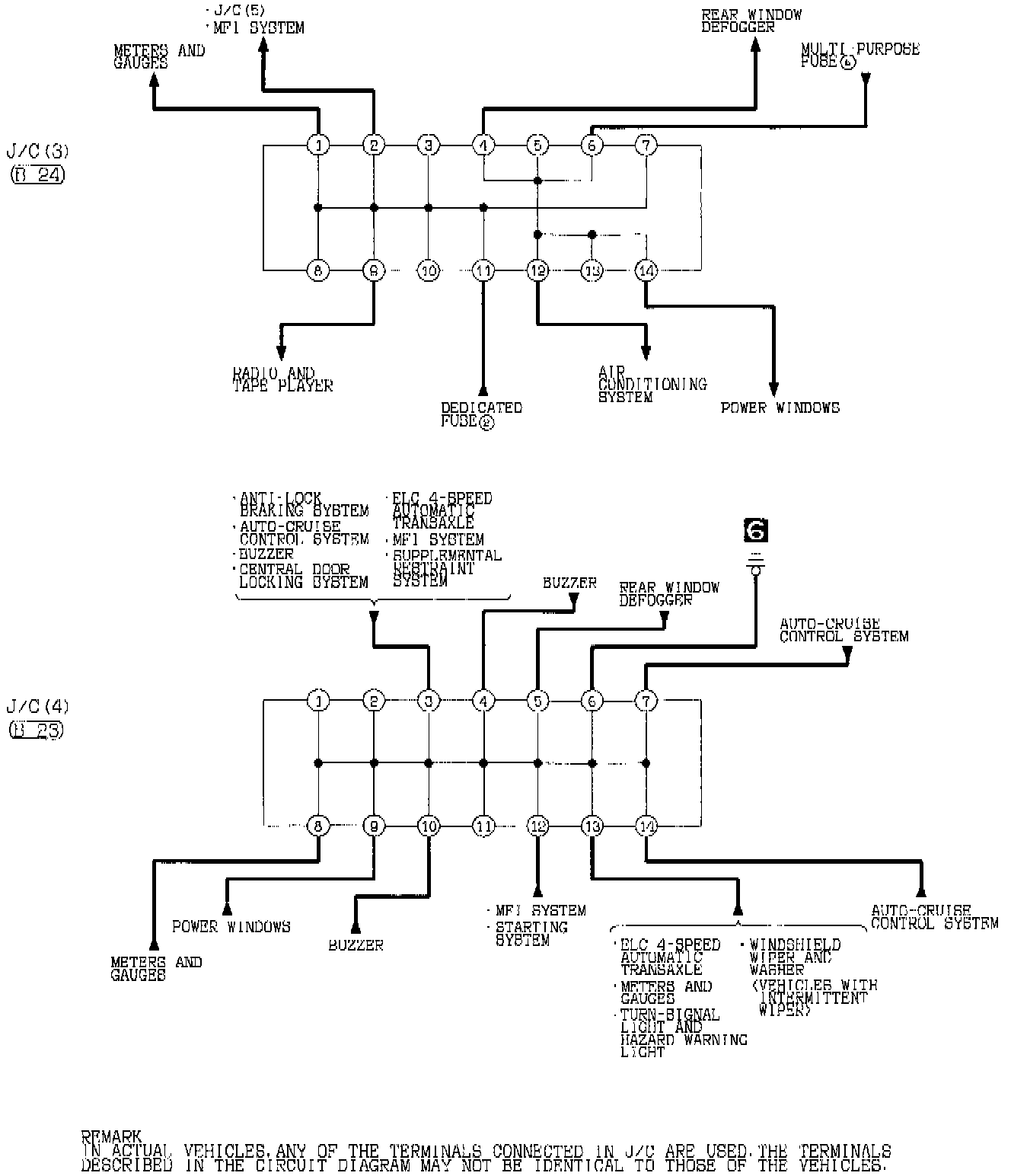

Junction Connector (J/C):
J/C 3 (B-24) & J/C 4 (B-23)

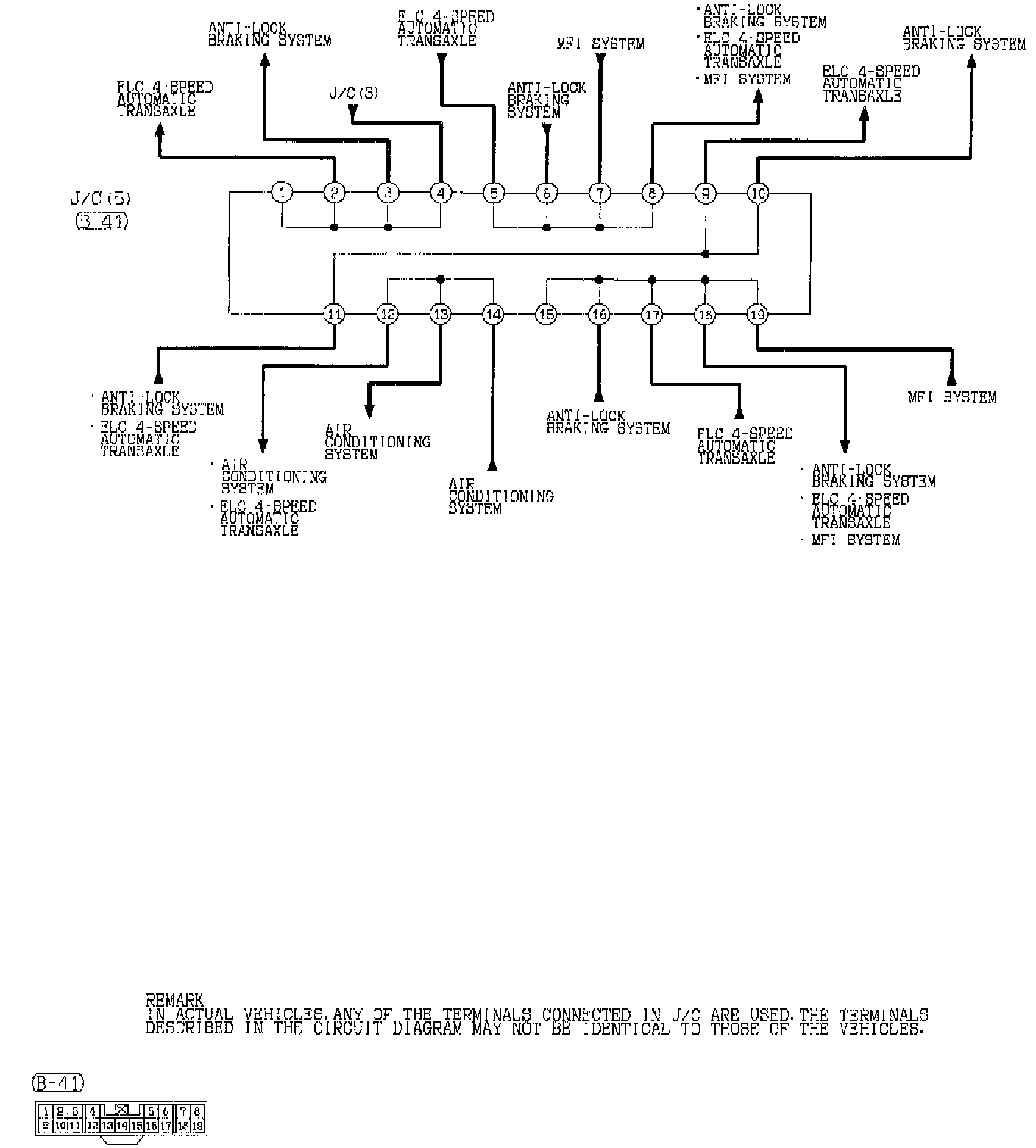

Junction Connector (J/C):
J/C 5 (B-41)
