Input Switch Code Check

1. Connect the scan tool to the data line connector (16-pin) under the instrument panel under cover.
2. Turn the ignition switch to ON.

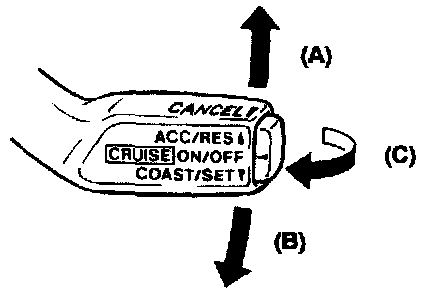

3. After pushing the auto-cruise control switch in the direction of arrow (B) in the illustration, press the cruise control main switch to the ON position, and within 1 second after doing this, push the cruise control switch back in the direction of arrow (A).
4. Operate each switch listed in the input check table and take a reading of the input switch codes with the scan tool.

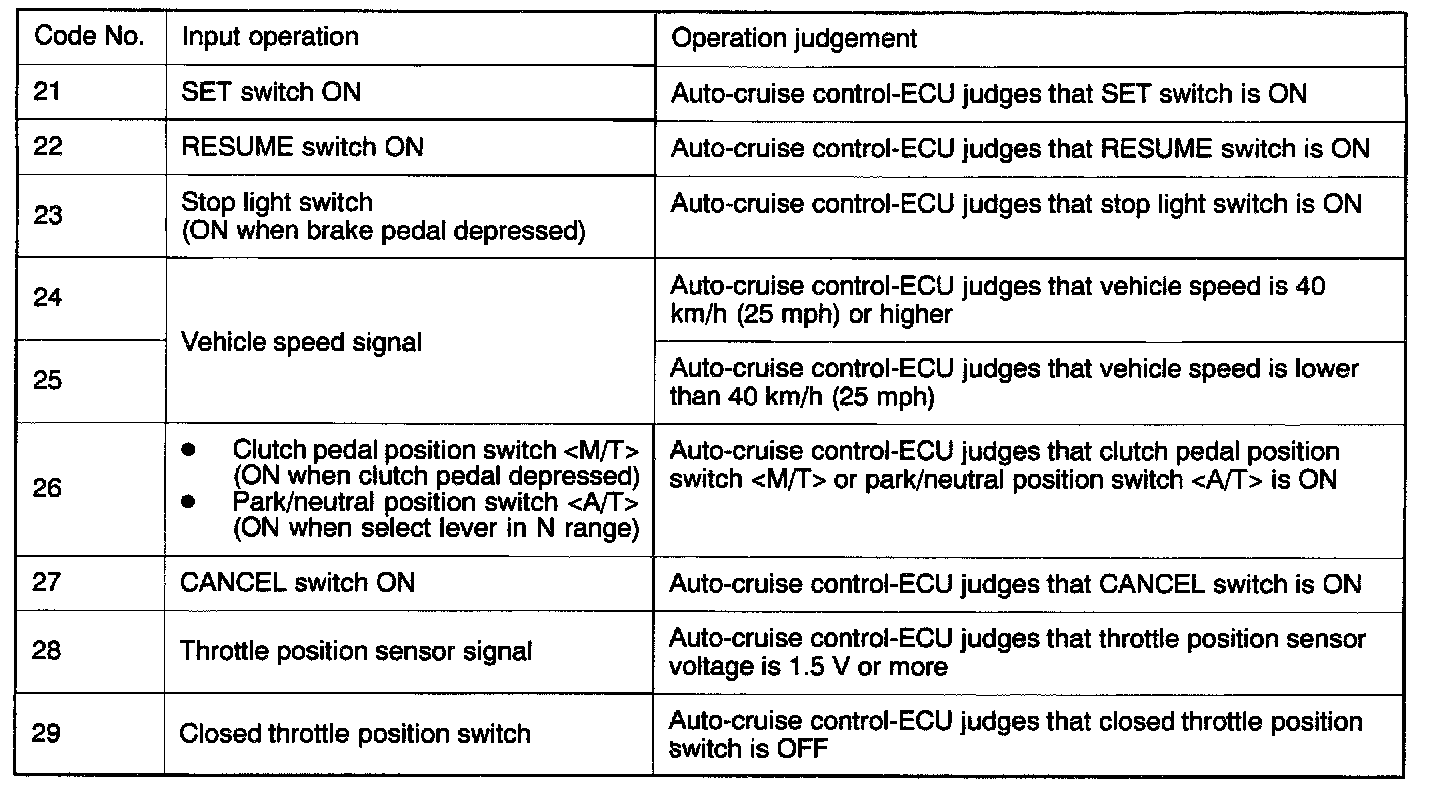

Input Inspection Table
