Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
1999
>>
Mirage Sedan DE L4-1468cc 1.5L SOHC MFI
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
Pinout Values and Diagnostic Parameters

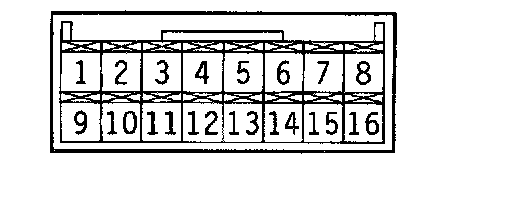

Connector View:

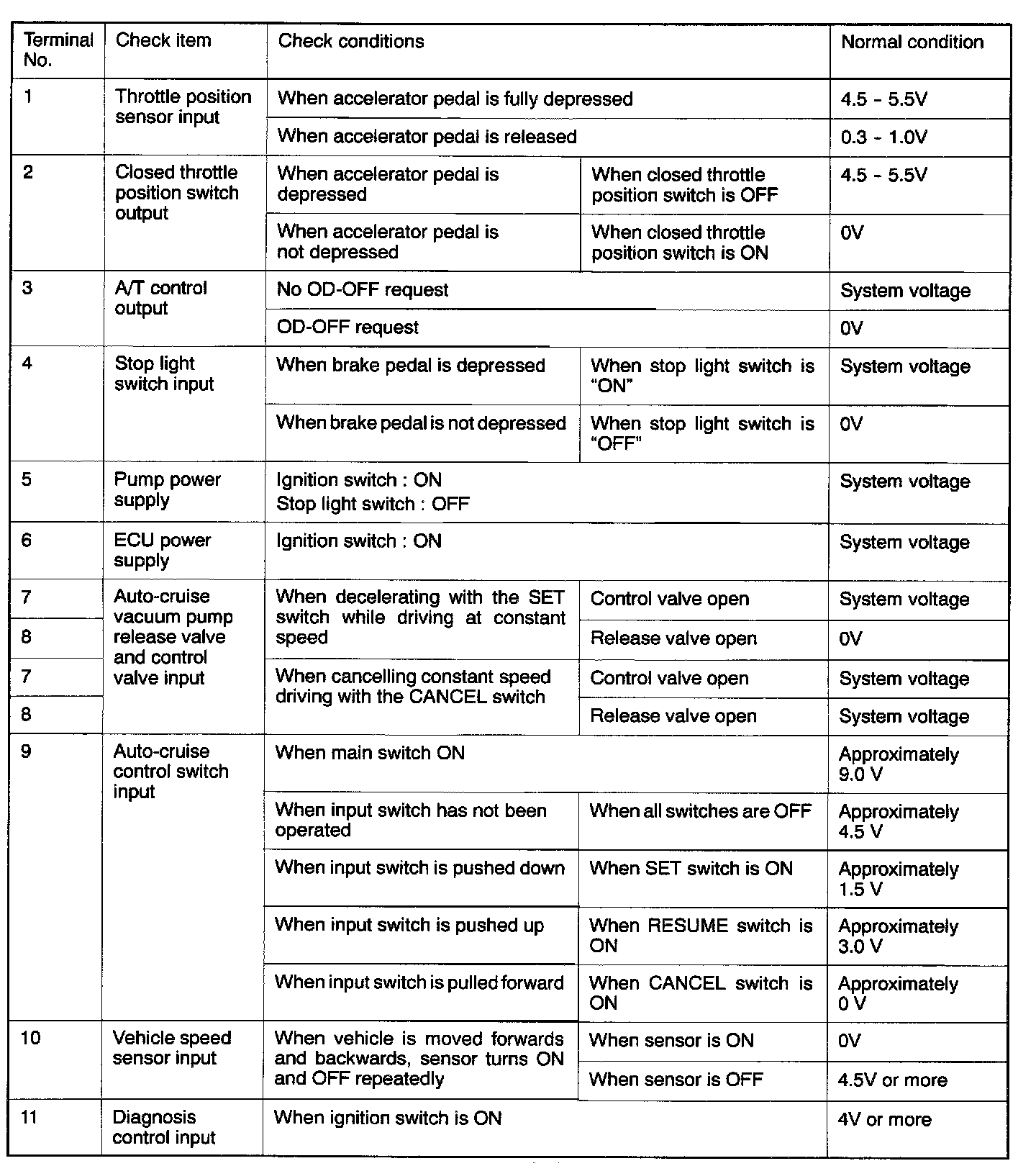

Terminal Values Part 1 of 2:

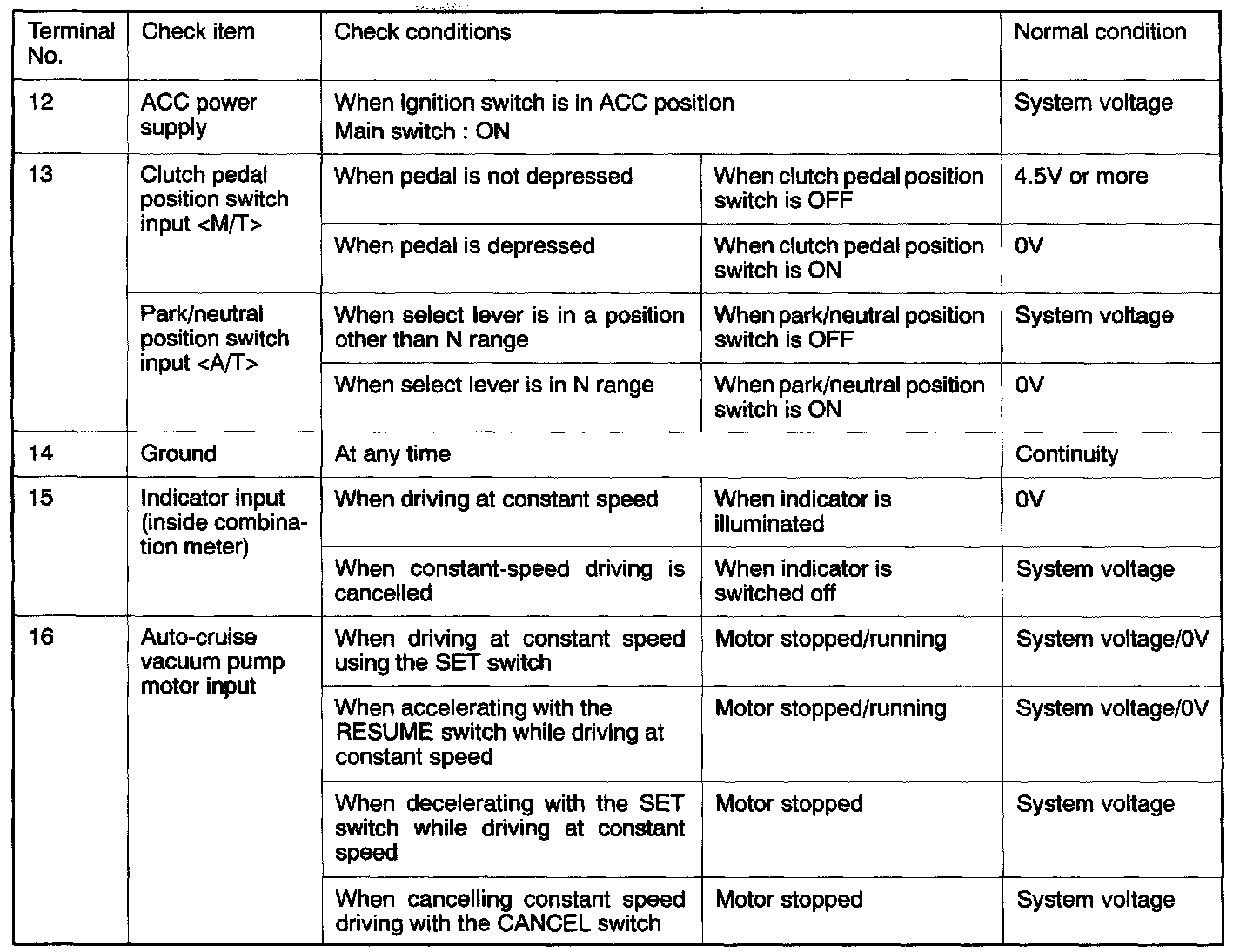

Terminal Values Part 2 of 2:
