Flow of Diagnosis

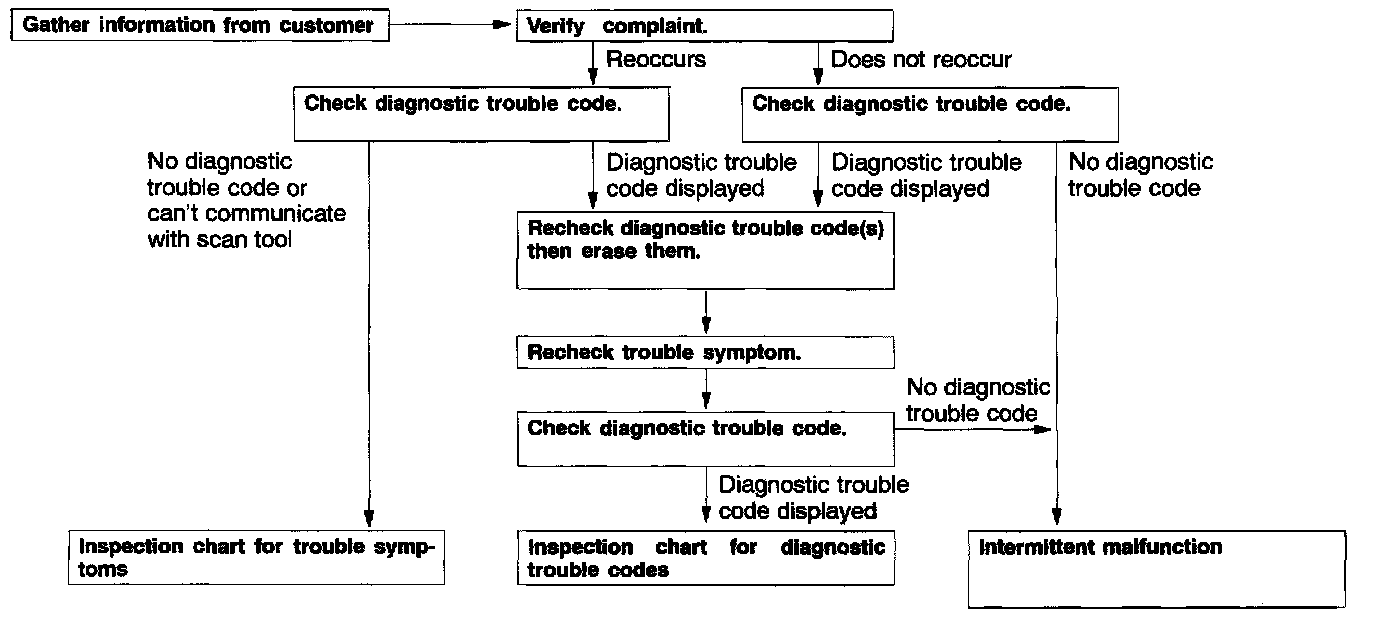

DIAGNOSTIC TROUBLESHOOTING FLOW

NOTE: Before carrying out trouble diagnosis, check to be sure that all of the following items are normal.

1. Is the vacuum hose installed correctly, and is the hose not damaged?
2. Is the accelerator cable play at the standard value? 1 - 2 mm (0.04 - 0.08 in.)
