Clutch Switch: Testing and Inspection

CLUTCH PEDAL POSITION SWITCH CONTINUITY CHECK
1. Adjust the clutch pedal. Refer to Clutch, M/T.

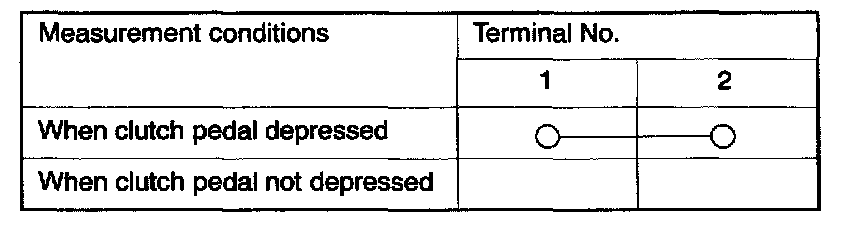

2. Operate the clutch pedal, and check continuity between the terminals.
