Ignition System: Service and Repair

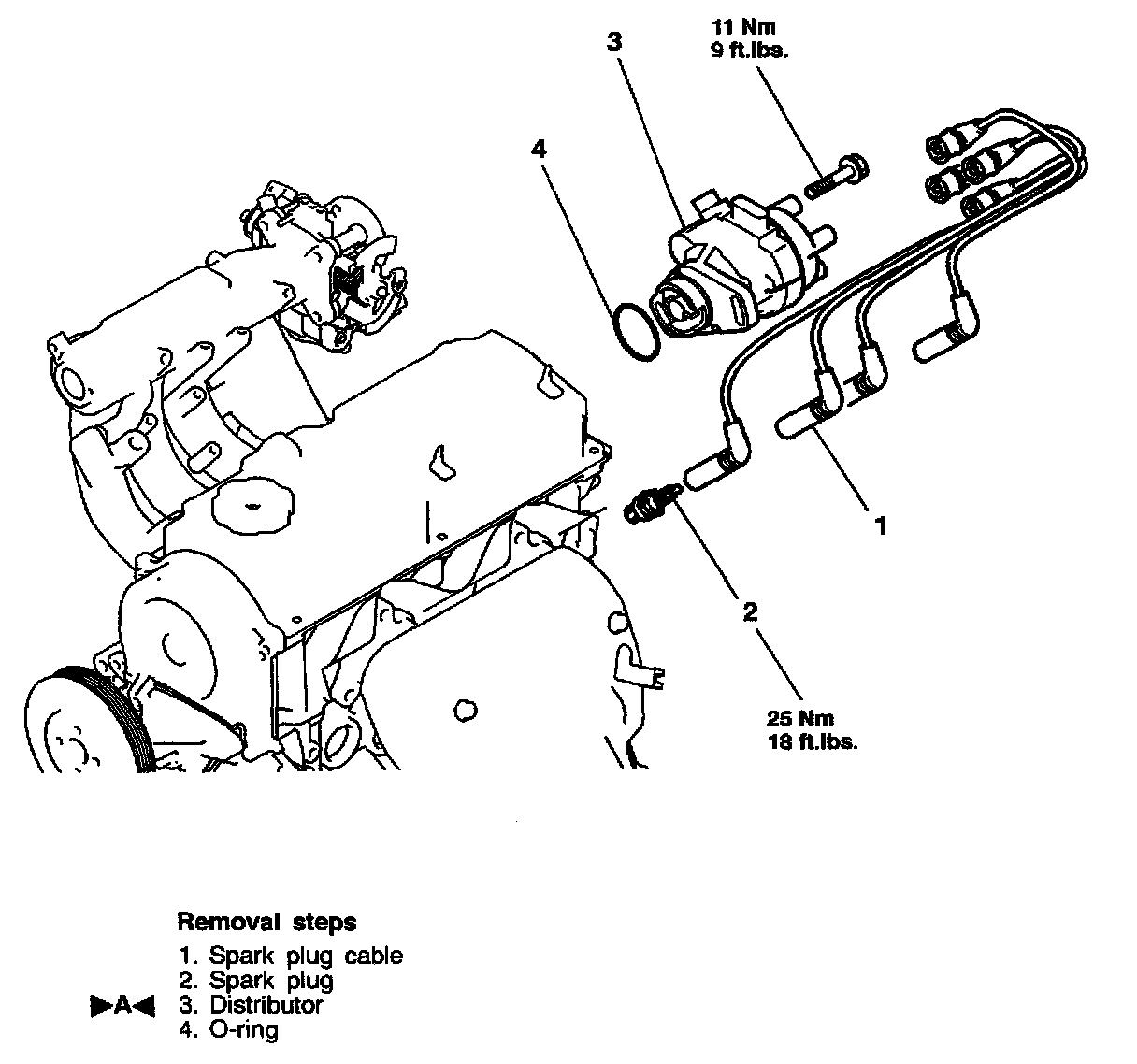

REMOVAL AND INSTALLATION

INSTALLATION SERVICE POINT




DISTRIBUTOR INSTALLATION
1. Turn the crankshaft so that the No.1 cylinder is at top dead center.

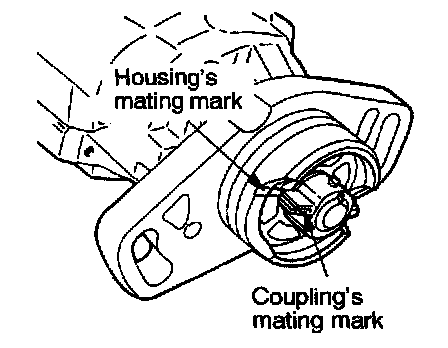

2. Installation the distributor to the engine while aligning the distributor housing and coupling mating marks.
