Transaxle Case

DISASSEMBLY AND ASSEMBLY
ASSEMBLY SERVICE POINTS
>A< BUSHING INSTALLATION

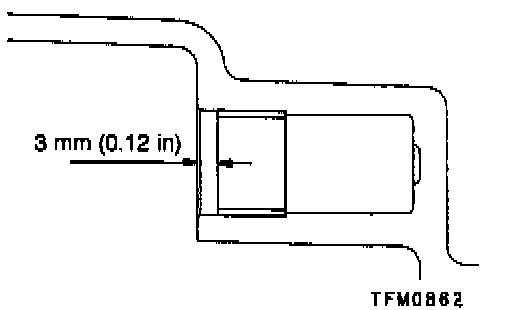

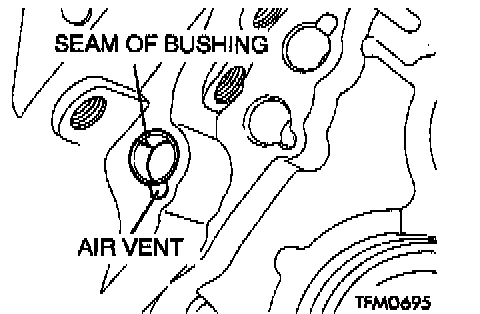

1. Press fit the bushing so the seam is away from the air vent.





2. See the figure for the correctly installed position.

>B< NEEDLE BEARING INSTALLATION

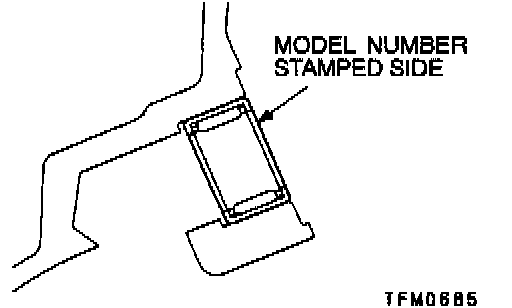

1. Check the installation direction of the needle bearing.
2. Press fit the needle bearing until it is flush with the case.

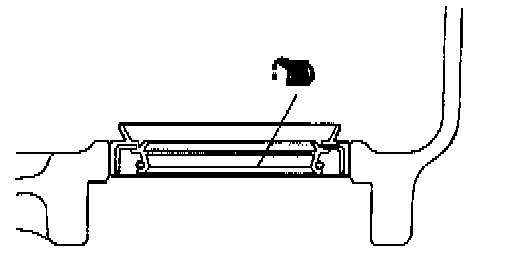

>C< OIL SEAL INSTALLATION





1. Apply gear oil (Hypoid gear oil SAE 75W-90 or 75W-85W conforming to API classification GL-4)

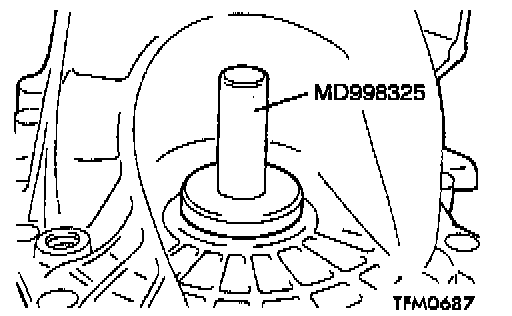

2. Using special tool MD998325, press fit the oil seal into the transaxle case.
