Galant ES V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Ignition Switch
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
Component Tests and General Diagnostics
1.
Remove the column covers, upper and lower.
2.

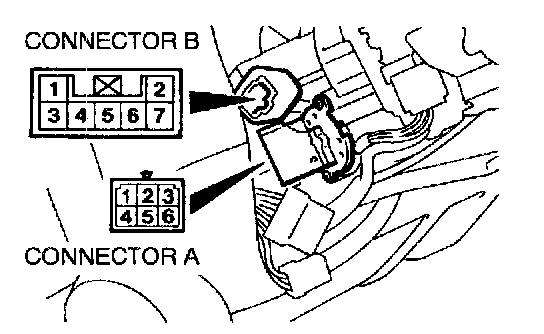

Disconnect the wiring connector from the
ignition switch
.
3.

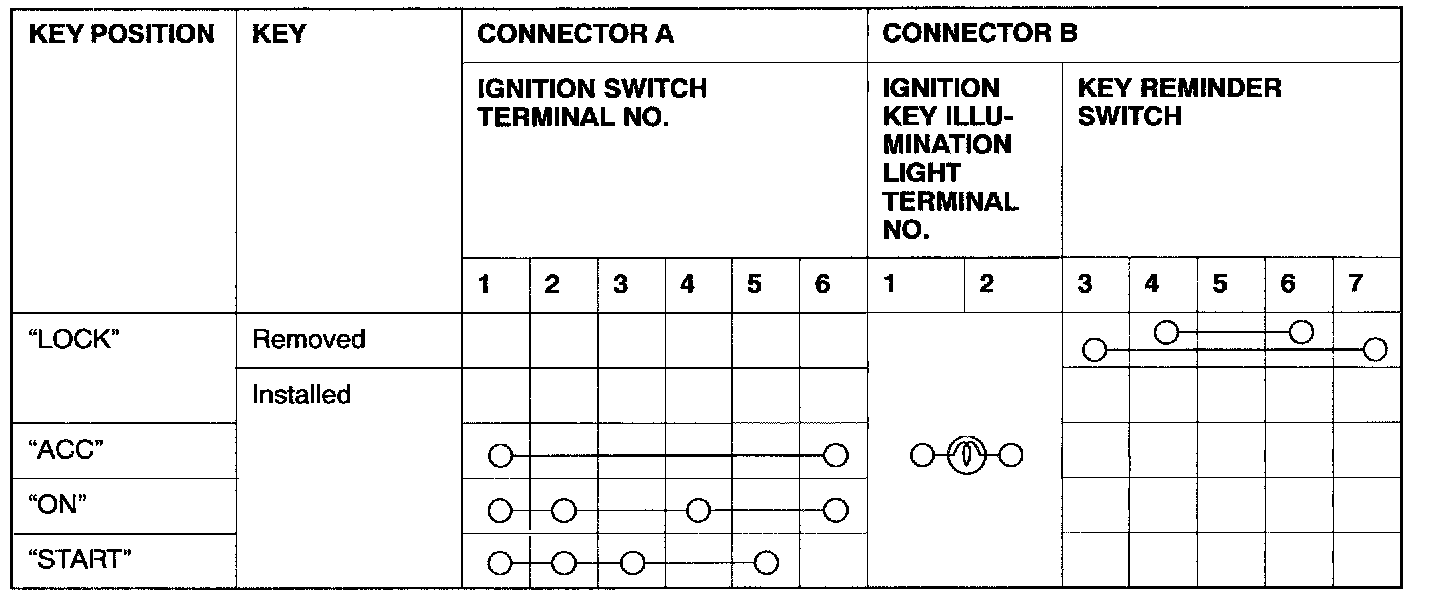

Operate the switch, and check for continuity between the terminals.
