Disassembly and Assembly
FUEL PUMP MODULE

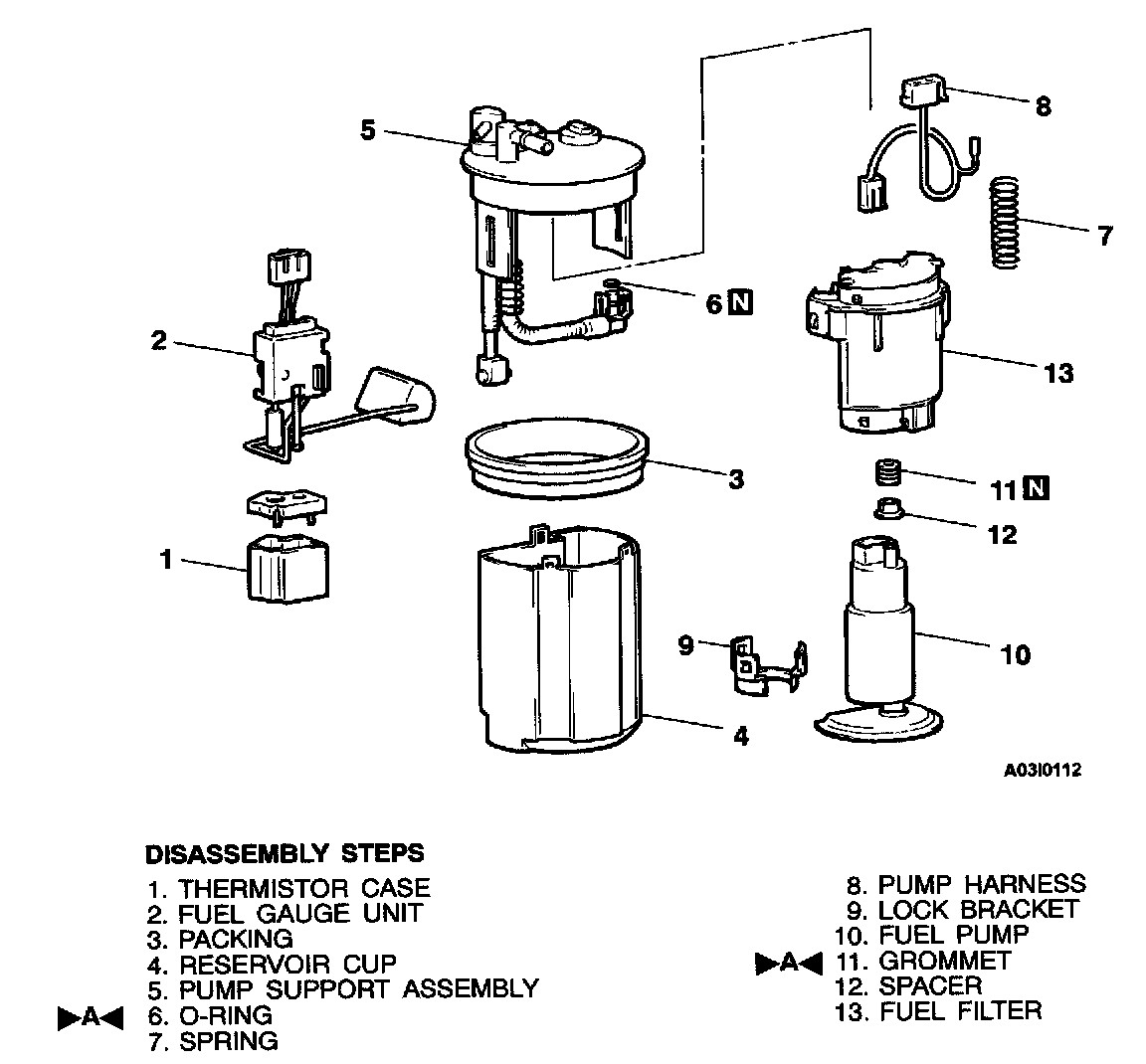

COMPONENTS
ASSEMBLY SERVICE POINT
>A< GROMMET/O-RING INSTALLATION
Apply a turn of gasoline to the grommet and O-ring to prevent them from damaging or deforming, and then install them.
COMPONENTS
ASSEMBLY SERVICE POINT
>A< GROMMET/O-RING INSTALLATION
Apply a turn of gasoline to the grommet and O-ring to prevent them from damaging or deforming, and then install them.
