Vacuum Hose Installation

1. When connecting the vacuum hoses, they should be securely inserted onto the nipples.

Vacuum Hose Routing (2.4L Engine):

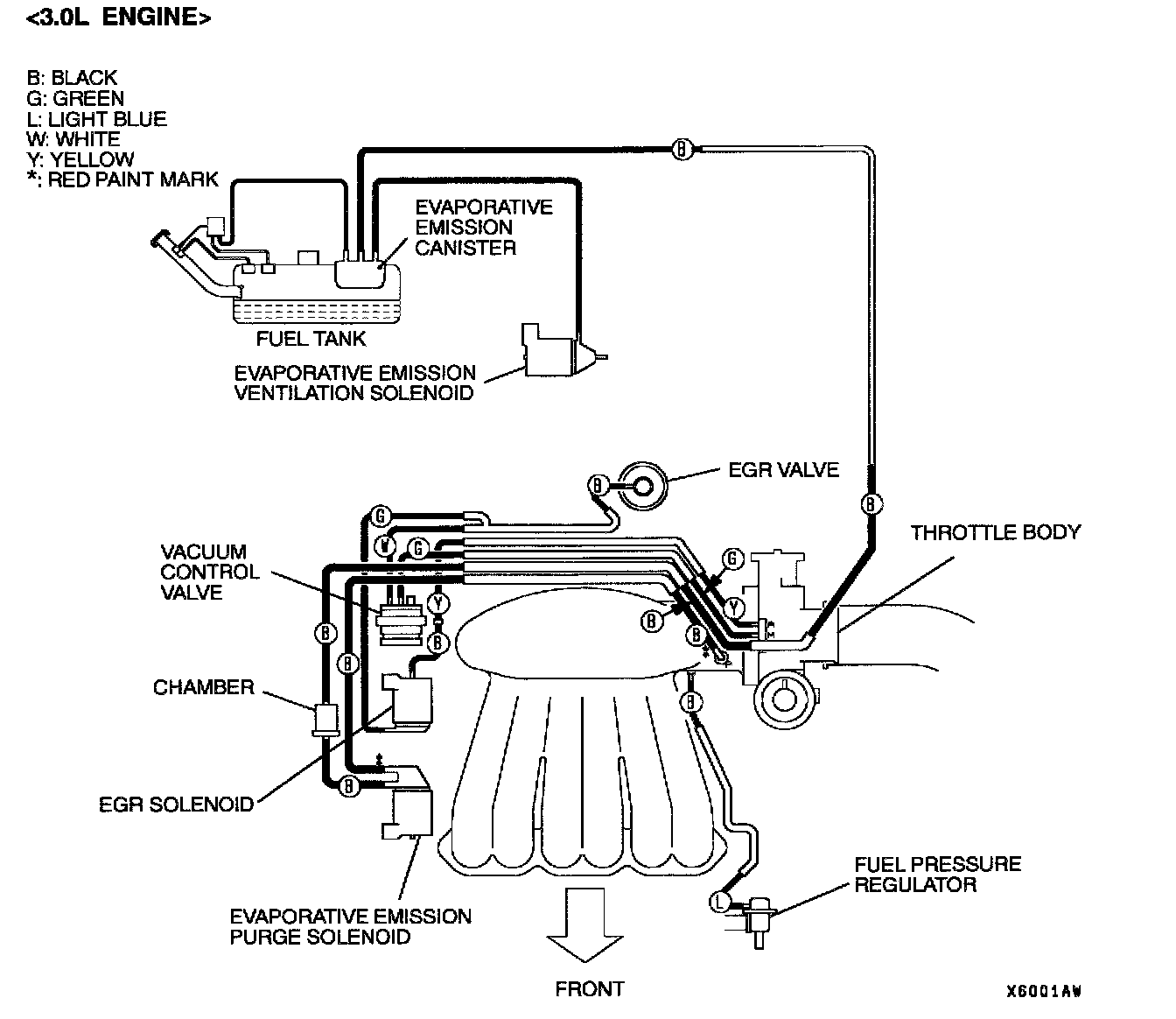

Vacuum Hose Routing (3.0L Engine):

2. Connect the hoses correctly, using the VACUUM HOSE ROUTING as a guide.
